7

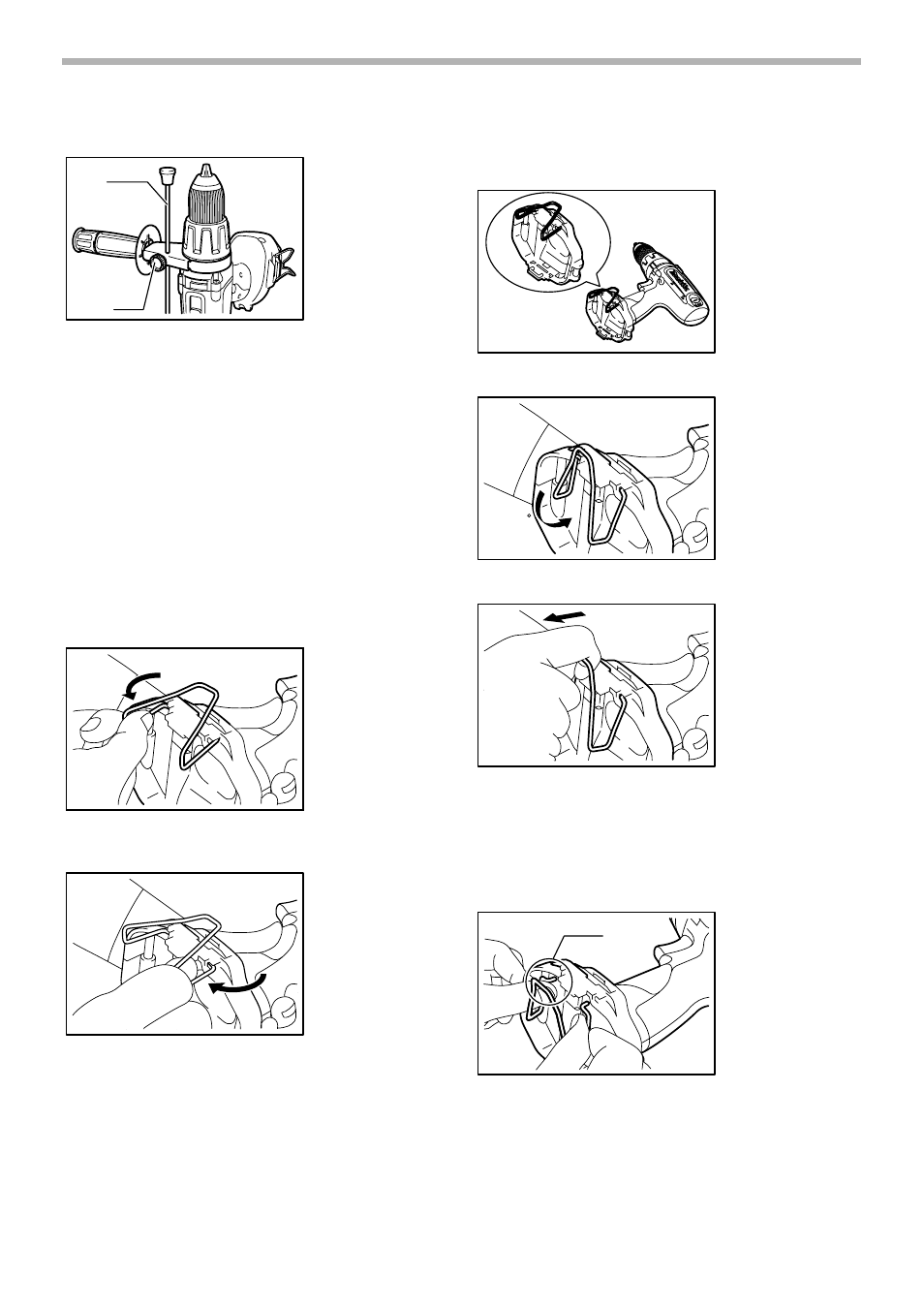

Adjustable depth rod

The adjustable depth rod is used to drill holes of uniform
depth. Loosen the clamp screw, set to desired position,
then tighten the clamp screw.

Hook

The hook is convenient for temporarily hanging the tool.
This can be removed without using a tool. This can be
installed on either side of the tool.

Installing and removing hook

A) Removal

Remove the battery cartridge from the tool.

Place the tool in a stable and level surface.

Expand an far end of the hook outward and slide it down
while expanding.

Expand the other far end in the same manner.

Keeping the hook in this position, rotate down to the
angle 90°and remove it by pulling in the direction of arrow
as shown in the figure.

B) Installation

Remove the battery cartridge from the tool.

Place the tool in a stable and level surface.

Hold both hooking ends in the upper position and expand
the upper part of the hook.

1. Depth rod
2. Clamp screw

1

2

006273

006275

006276

1. Hooking ends

006274

90

006277

006278

1

006279
