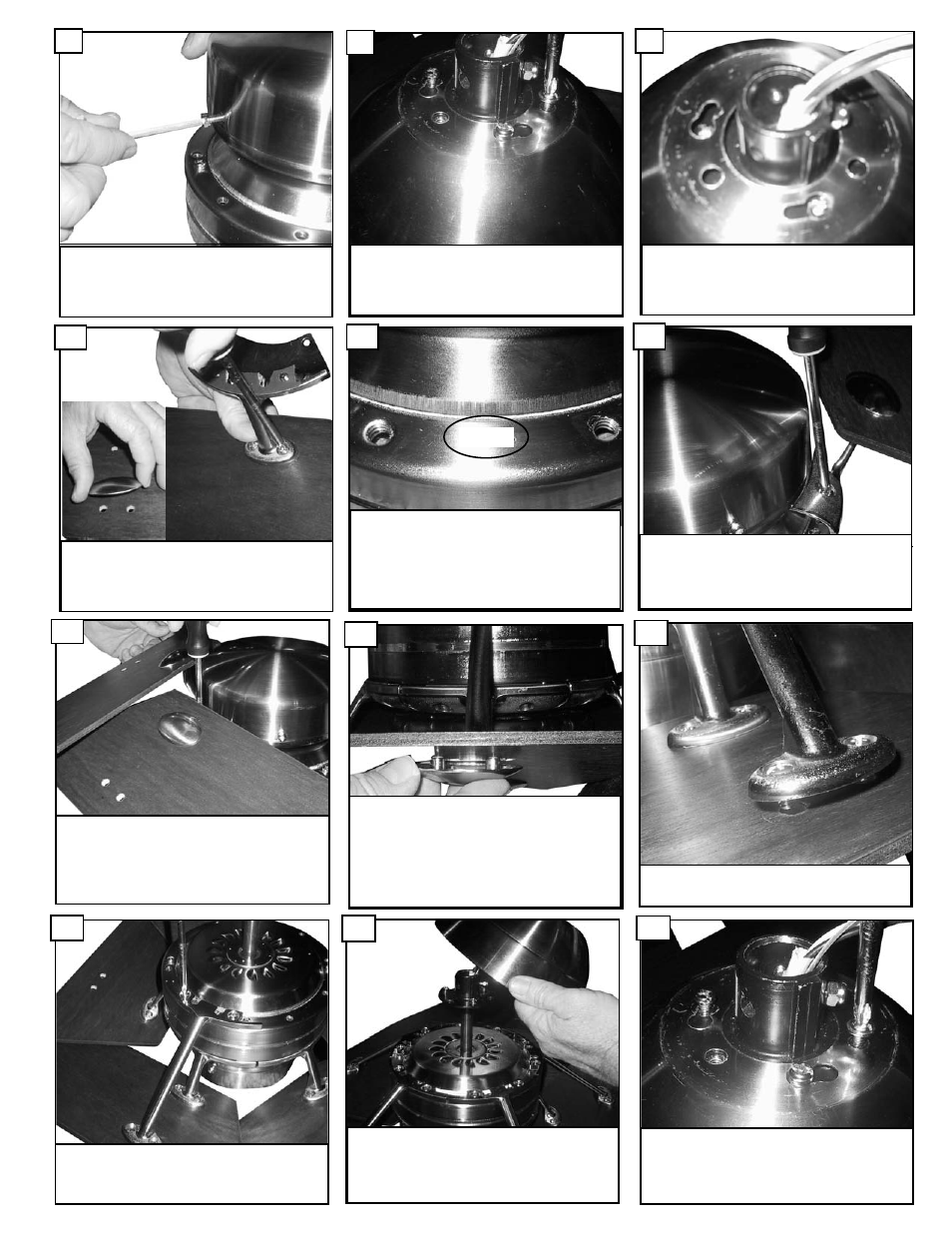

Loosen the 3 screws with slots and remove the other
3 screws. Save the screws.
Take the last allen screw and align with hole in
the switch housing cap or light kit, then tighten
all 3 allen screws securely.
To remove the top motor cover twist the cover
and remove this will allow acesss to the screw
holes for the blade arms.
Place blade arm over label on the fan body and
tighten the 2 screws in the blade arm to the
fan body.
9 7
12
8
Place medallion in blade for long blade arm.
Repeat for each blade.
14
When attaching the second blade and arm to
fan it should go under the first blade as shown
in photo. Repeat for the other blades and arms.
13
Attach long blade arm to medallion with 2
screws, only start screws. Repeat for each long
blade arm.
15
Attach the long blade arms to motor after attach-
ing to blade. Tighten screws to motor securely
and repeat for each blade arm. Caution go back
and securely tighen screws in step 15.
16
Thread wires and safety cable through motor cover.
17
Place motor cover over 3 screws and twist
cover into position. Take 3 screws removed ear-
lier and replace, tighten all 6 screws securely.
18
Place medallion on side of blade not marked
this side up. Flip the blade over and attach
short arm to set of holes that are closest to the
corner of the blade. The remaining set of holes
is for the long arm. Repeat for each blade.
10
Use this label on the fan body for the first blade arm
starting position. Use caution with blade arms and
blades. Any pressure on blade arms or blades
such as holding fan by blades or blade arms can
create problems of blade pitch deviation or
deforming blade arms.
11
Label
