16

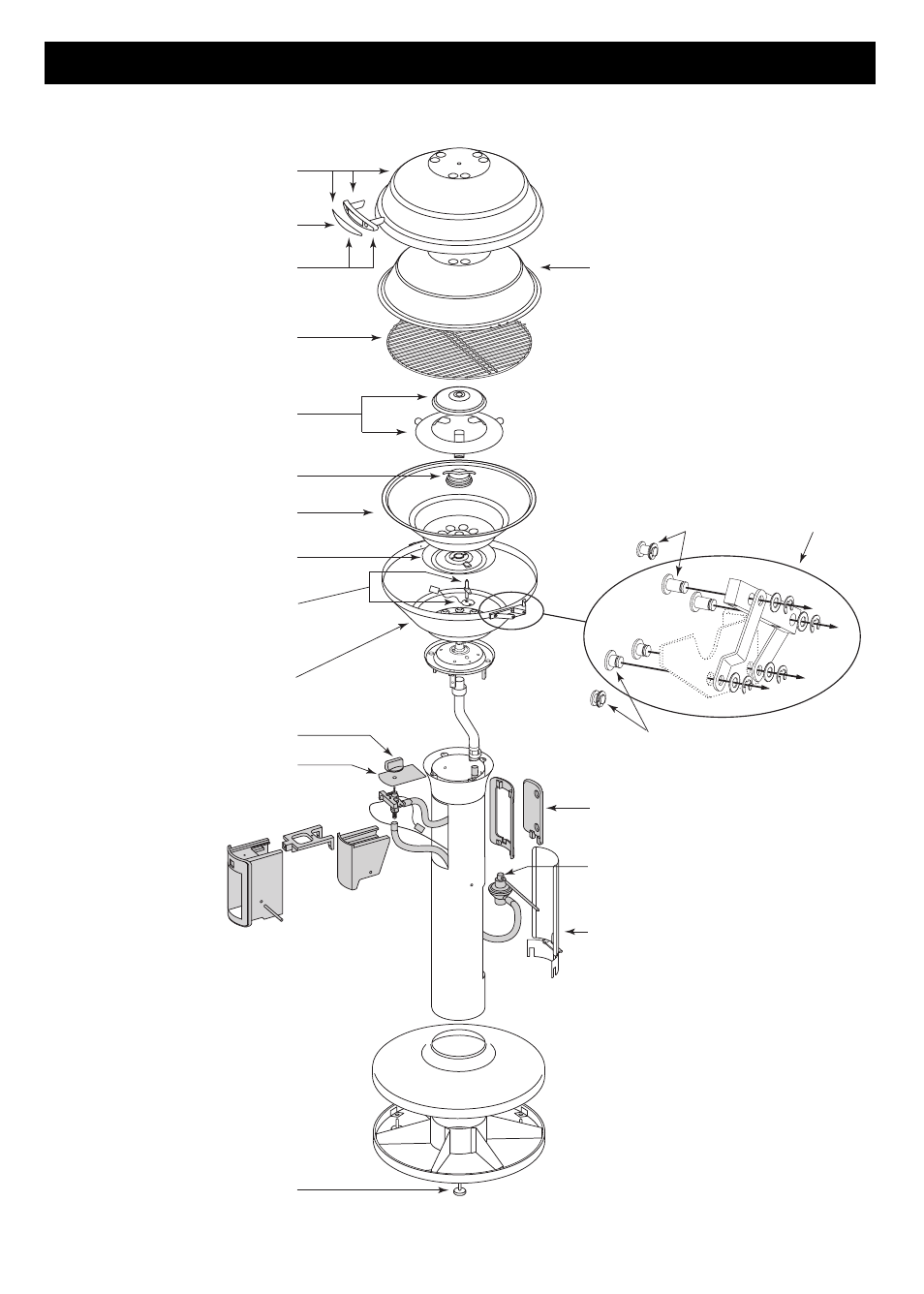

EXPANDED VIEW

11-001

Handle & Outer Lid Assembly

11-003

Internal Fire Lid

11-005

Fire Pan with Grill Clips

11-010

Electrode with Seal

& Bracket Assembly

11-011A

Regulator LP

11-013

Rear Lower Door with Hinge Assembly

11-012

Rear Inspection Door

11-017

Handle with Mounting Hardware

10-453

Cooking Grill

10-765

Radiant Plate & Dome

11-002

“Magma” Name Plate w/ A

dhesive

10-657

Burner with Igniter Strap

11-006

Internal Wind Baffle

11-007

Bowl Assembly with Hinge Brackets

11-015

Gas Control Knob

11-016

Instruction Plate with Adhesive

11-011LP

Control Panel Assembly,

LP Complete

(Gray parts)

11-014

Leveling Pads (3)

11-018

Lid Pivot

Assembly

11-008

Short Pivot Pin with Clip & Washer

11-009

Long Pivot Pin

with Clip & Washer
