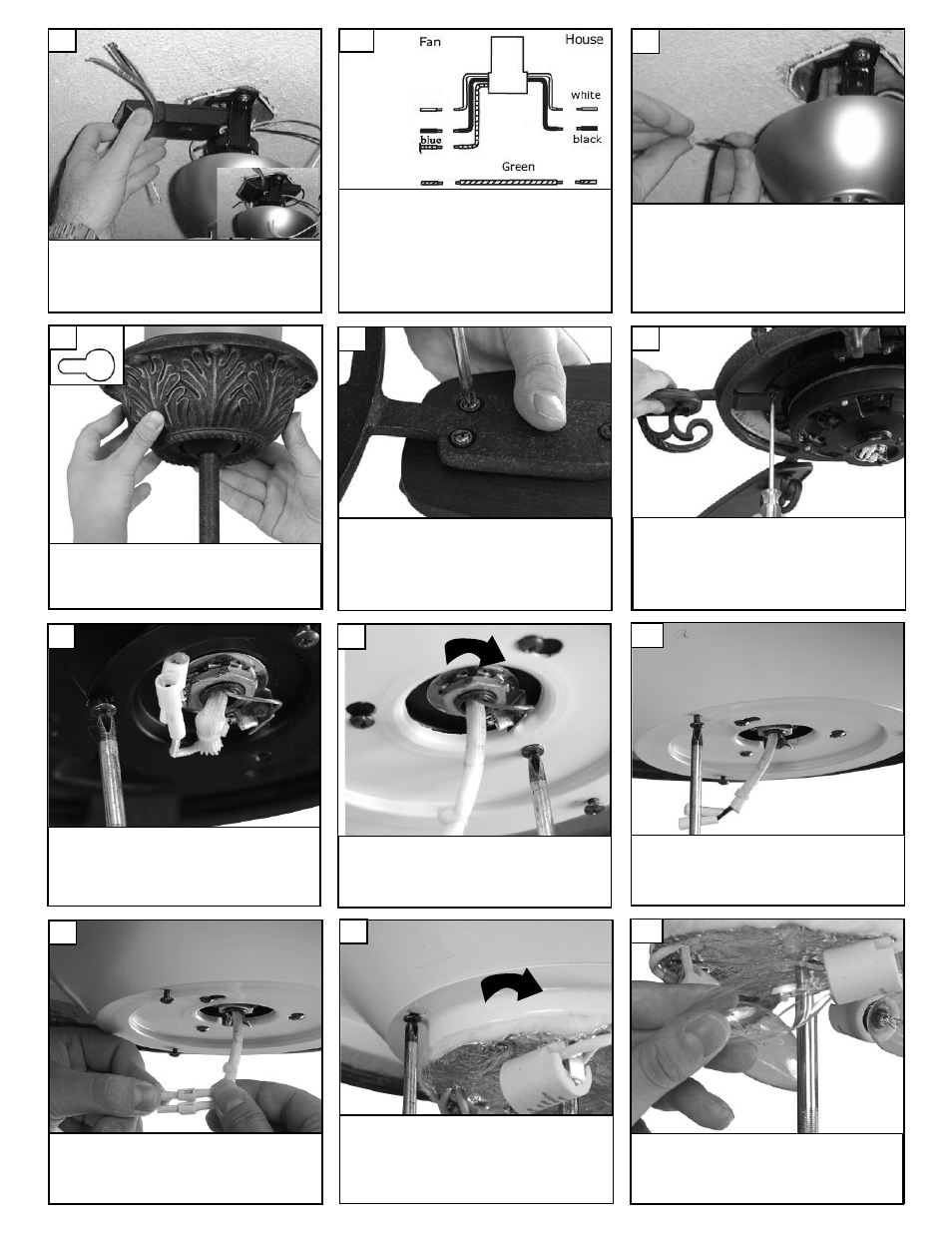

Install remote receiver by sliding into opening in
the Mounting bracket. Make sure that the dip
switches on the Transmitter and the Receiver
are set to the same position. See page 7 for
remote operation.
31
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
33
Lift canopy to ceiling aligning the key hole slots
with the screws on the bottom of the mounting
bracket. Rotate the canopy counter clockwise
to lock in place. Tighten the screws to secure
the canopy. See inset for keyhole shape
34
Make wiring connections as indicated above.
White from fan to white from remote marked
N. Blue from fan to blue from remote marked
light. Black from fan to Black from remote
marked L. White from house to white from
remote marked AC N . Black from house to
Black from remote marked AC L. Connect all
green ground wires to Ground wire from
House.
white
black
32
Check the motor for plastic shipping sta-
bilizer tabs and remove if they are pres-
ent. The screws, washers and motor pads
are pre-installed to the blade holders.
Attach blade assembly to motor and
tighten screws securely.
36
Loosen 2 screws and remove 1
screw. Save screw removed.
37
Twist lower cover plate into place by
twisting in direction of arrow.
Replace 1 screw removed and tighten
all 3 screws securely.
38
Check the motor for plastic shipping sta-
bilizer tabs and remove if they are pres-
ent. The screws, washers and motor pads
are pre-installed to the blade holders.
Attach blade assembly to motor and
tighten screws securely.
35
Loosen 3 screws on light plate as
shown.
Plug white wire from fan to white
wire from light kit. Then plug black
wire from fan to black wire from light
kit.
39
40
Place light kit over screws and twist
direction of arrow into place. Then
tighten all 3 screws securely.
41
Install 3 x 40 watt incandescent can-
delabra bulbs. Bulbs included.
42
