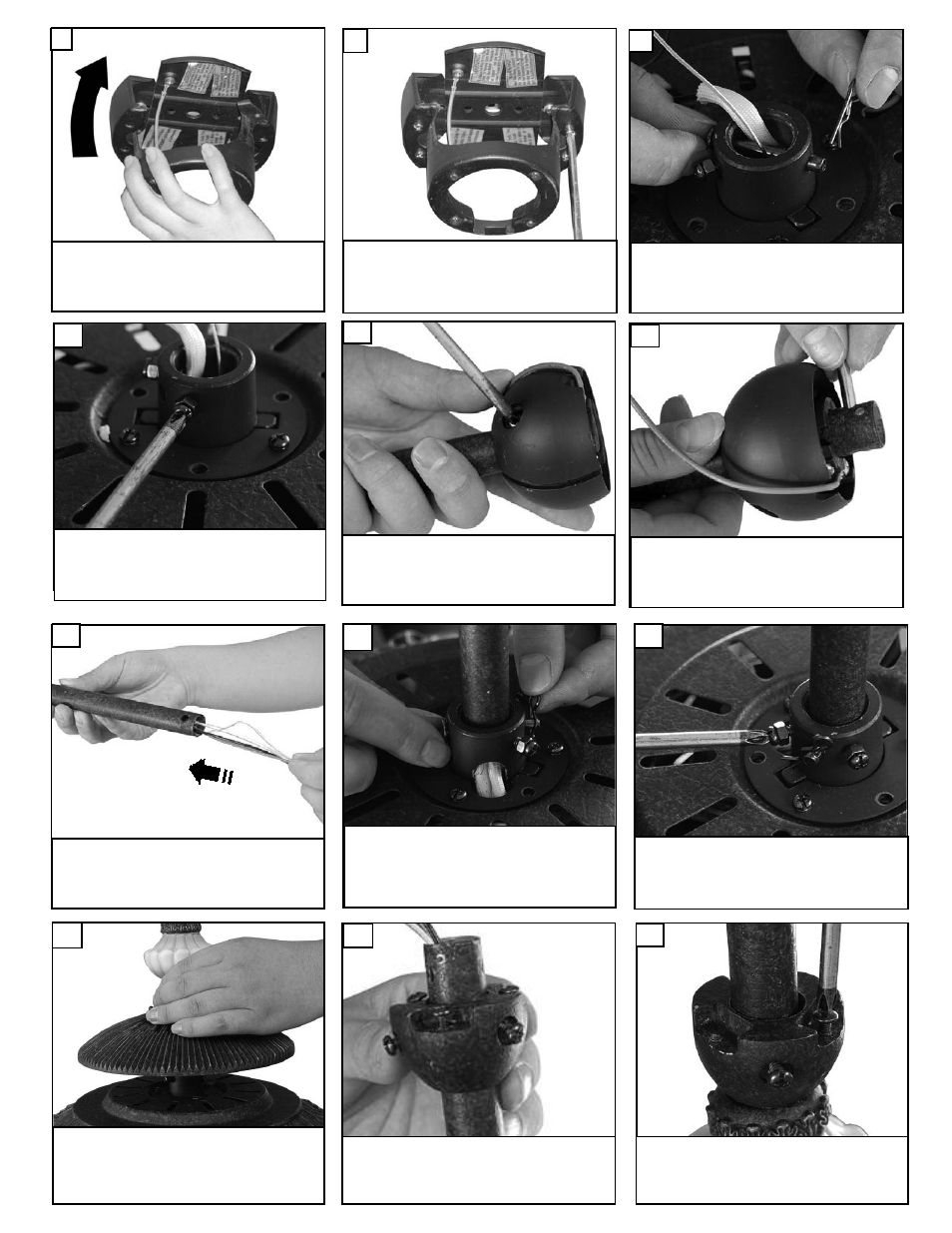

Loosen lock nuts and screws on yoke
till you can not feel screw on inside
of yoke.
Remove keeper from cross pin and
then cross pin from yoke. Replace
keeper on cross pin and save.
9
10
Lift mounting neck to mounting Plate and align
screws.
7
Secure mounting neck to the mounting plate
with four screws to become a complete mount-
ing bracket.
8
Loosen set screw that holds ball.
11
Slide ball down and remove pin save
pin for later.
12
Install yoke cover over downrod onto
fan body.
Install arch hub onto downrod.
17 16
Install downrod into yoke. Align hole
in downrod with hole in yoke and
install cross pin. Install keeper into
cross pin.
14
Tighten 2 downrod set screws and
lock nuts.
15
Thread leadwires and safety cable
through downrod.
13
Remove screws arch hub.
18
