Murphy MLA35 - Manual (Page 2)

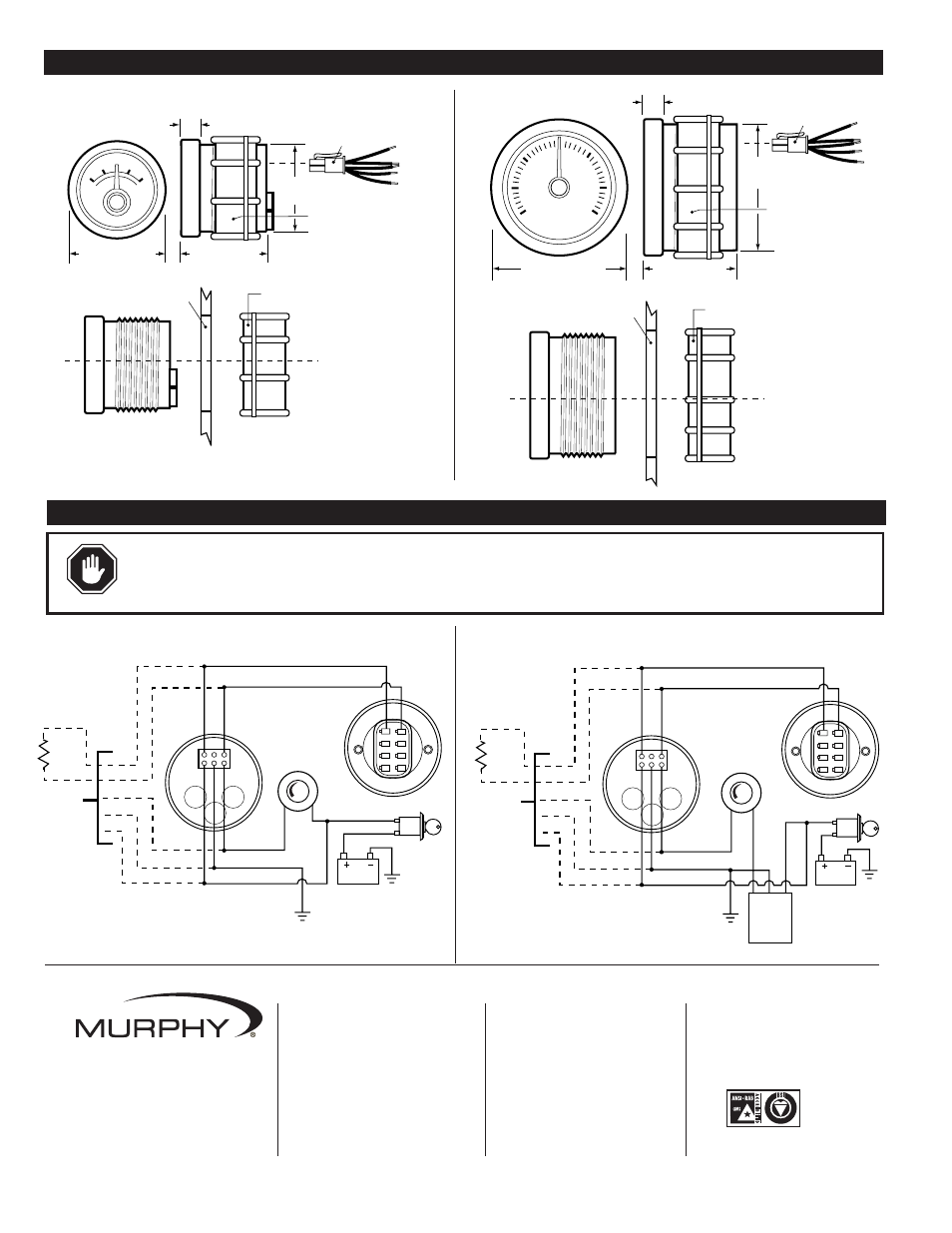

MLA20 and MLA35 Dimensions and Mounting
For Panels up to 3/4 in. (19 mm)
maximum thickness
For Panels up to 3/8 in.
(9.5 mm) maximum thickness
Mounting Clamp
Mounting Hole
2.062 in. (52 mm) Dia.
2.25 in. (57 mm) 1.94 in. (49 mm)
0.48 in. (12 mm)
Push On Plug (Amp)
Connection
1.94 in.
(49 mm)
Mounting Clamp
Mounting Hole
3.375 in. (86 mm) Dia.
3.55 in. (90 mm) 2.0 in. (51 mm)
0.48 in. (12 mm)
3.22 in.
(82 mm)
Push On Plug (Amp)
Connection
For Panels up to 3/4 in. (19 mm)
maximum thickness
For Panels up to 3/8 in.
(9.5 mm) maximum thickness
MLA20 Series MLA35 Series
Orange
Battery
Ignition
Switch
Red
120 Ω
Place Resistor at
End of Line on
Last MLA gage.
(included for factory
purchased panels.)
To Next
MLA Gage
Back
Light
Ground
Battery
Blue
White RS485 (+) Data
RS485 (-) Data
MDDM Gage
Rear View
Illumination
Control*
(optional)
* Electronic Dimmer switch recommended with 4 A, capacity
or heavy duty rheostat switch, 25 ohm, 5 watt.
For more than 6 MLA gages, contact factory for rheostat sizing.
MLA Gage
Rear View
Pin A Pin H
Black
Orange
Battery
Ignition Switch
Red
120 Ω
To Next
MLA Gage
Back
Light
Ground
A (V in) B (Ground) C (V Out) Battery
Blue
White RS485 (+) Data
RS485 (-) Data
MDDM Gage
Rear View
Illumination
Control*
(optional)
Back Light
Voltage
Regulator
(MLVC2412)
* Electronic Dimmer switch recommended with 4 A, capacity
or heavy duty rheostat switch, 25 ohm, 5 watt.
For more than 6 MLA gages, contact factory for rheostat sizing.
MLA Gage
Rear View
Pin A Pin H
Black
Place Resistor at
End of Line on
Last MLA gage.
(included for factory
purchased panels.)
Wiring for 12 VDC Systems Wiring for 24 VDC Systems
WARNING: Disconnect battery negative cable before wiring or service. Devices containing solid state components can be damaged or caused to
malfunction when used in systems which incorporate inductive loads (e.g. relays, solenoids, etc.) that can generate voltage spikes. To reduce the
potential for this type of damage, install a fly back or clamping diode across all inductive loads. Use Murphy diode package 65-00-0343 or equivalent.
A typical diode is 1N4005 and is readily available from commercial sources. Failures of this type are not covered by our Limited Warranty.
MLA20 and MLA35 Typical Wirings For 12 and 24 VDC
Installation MLA-00012N page 2 of 2
