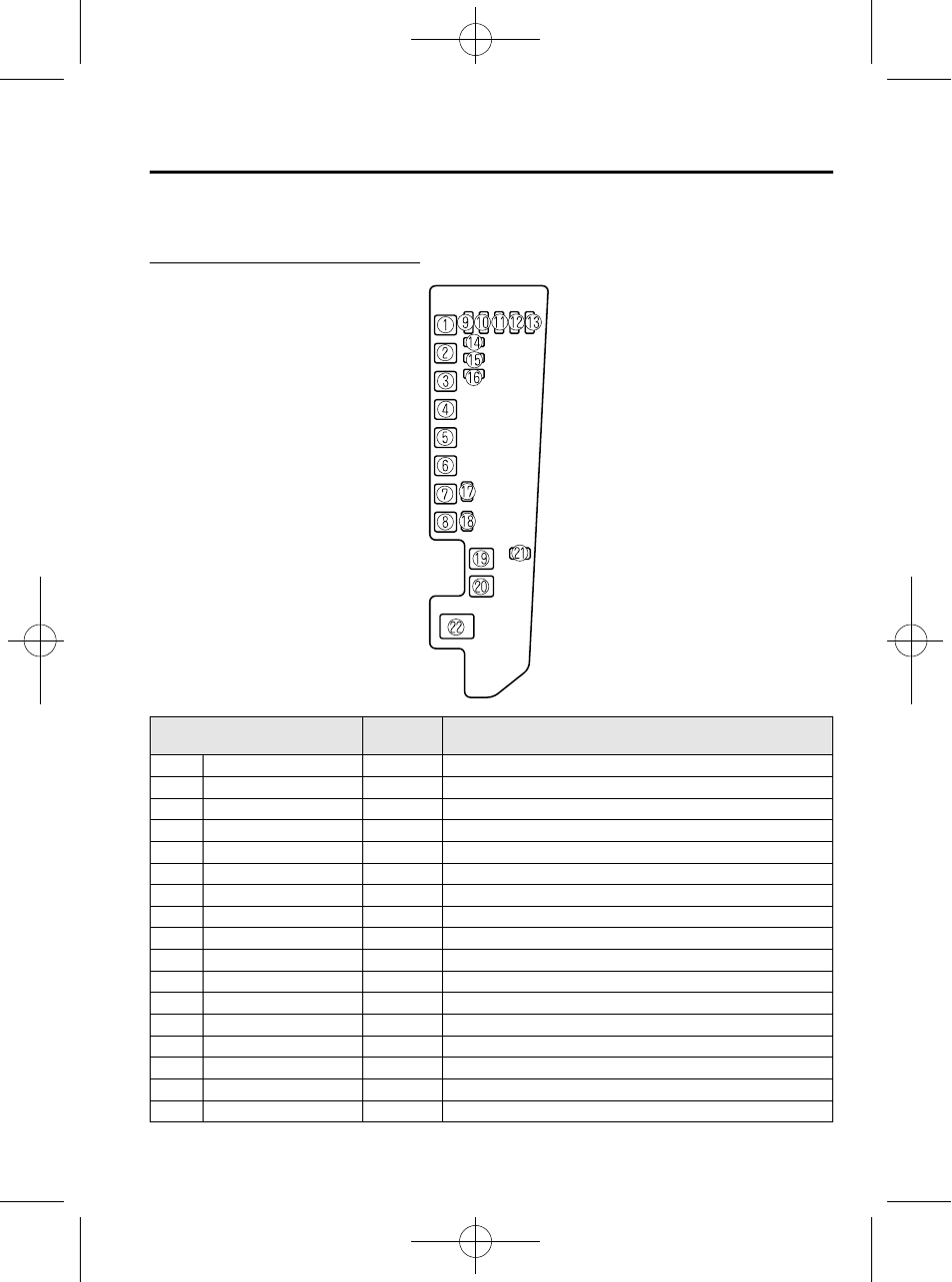

qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 DEFOG 40A Rear window defroster
2 BTN 60A STOP, HAZARD, ROOM, D.LOCK and DRL fuses
3 ABS 60A Antilock brake system
í
, For protection of various circuits
4 FAN1 30A Cooling fan
5 FAN2 30A Cooling fan
6 HEATER 40A Heater
7 R.HEAT 30A Rear heater
í
, For protection of various circuits
8 IG KEY2 40A A/C, P.WIND
í
, MOONROOF
í
and R.WIP fuses
9 A/C 10A Air conditioner, For protection of various circuits
10 TAIL 15A Taillights
11 AC PWR 15A Inverter
12 HORN 15A Horn
13 FOG 15A For protection of various circuits
14 EEC 5A For protection of various circuits
15 HEAD L 15A Headlight-left
16 HEAD R 15A Headlight-right
17 HID L 20A
―
Maintenance and Care
Owner Maintenance
8-41 í
Some models.
