OM-228 305 Page 15

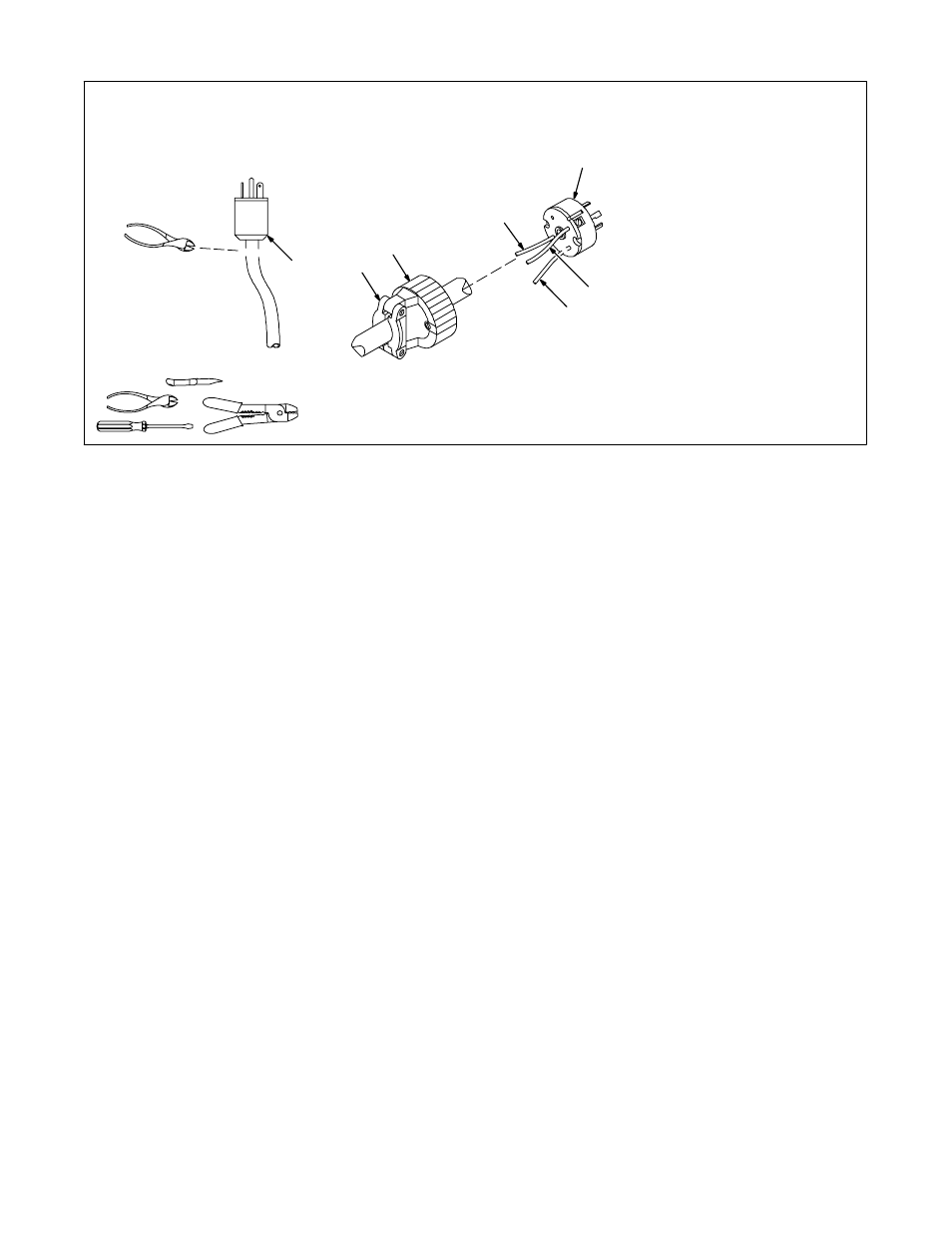

4-9. Installing Alternative Plug
1 Supplied 115 VAC Plug
Cut cord close to plug.
2 Alternative PLug (230 VAC
Plug Shown)
3 Load 1 (Brass) Terminal
4 Load 2 (Brass) Terminal
5 Ground (Green) Terminal
6 Outer Shell
7 Cord Grip
Strip cord jacket back enough to
separate conductors. Strip conduc-
tors enough to make good contact
with plug terminals. Make plug con-
nections and reinstall outer shell and
cord grip. Tighten assembly screws
onto shell. Do not overtighten.
Ref. 801 305-A / 801 611
.
This procedure is necessary if the unit is to be connected to a 230 VAC receptacle,
or to a 115 VAC receptacle that requires a plug that is different from the supplied plug.
Tools Needed:
1
6
7
2
3
4
5
.
See Section 4-8 for instructions on setting changeover switch for proper voltage.
