Hookup Diagrams

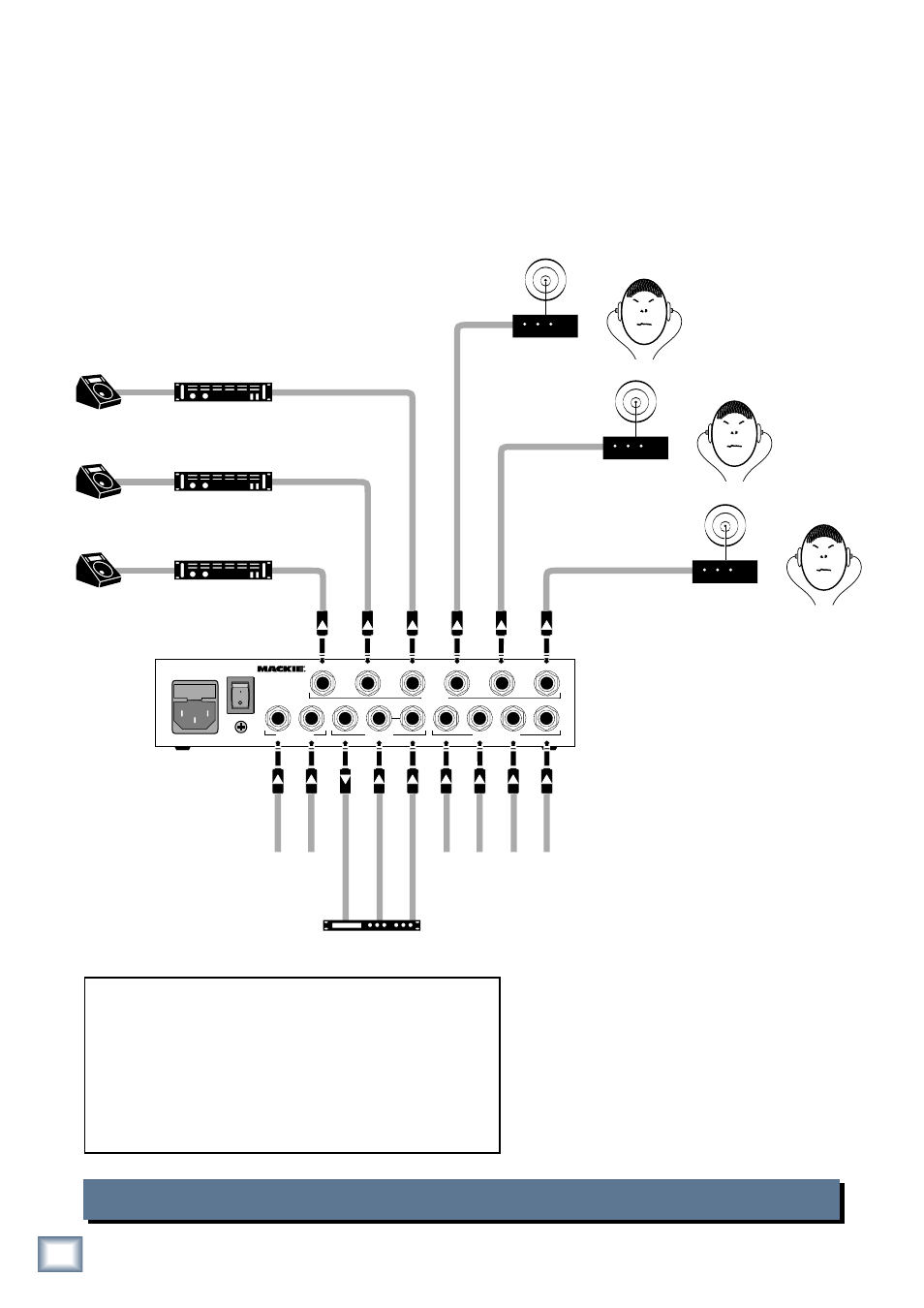

HMX-56 Live Sound Application

��

�

��

�

��

��

This illustrates using the HMX-56 as a live monitor

mixer. Three of the Phones outputs are routed

to In-Ear Monitor (IEM) systems, and three are

routed to ampliﬁers powering monitor wedges.

Note: The output level of the Phones outputs are

higher than a standard line-level output, so turn

the Phones Level control all the way down and

then s-l-o-w-l-y turn them up until you reach a

comfortable listening level.
