13

Owner’s Manual

Owner’

s Manual

AC Power Requirements

Power Consumption: 12 watts
U.S. and Canada: 120 VAC, 50/60 Hz
AC Connector:

3-pin IEC 250 VAC

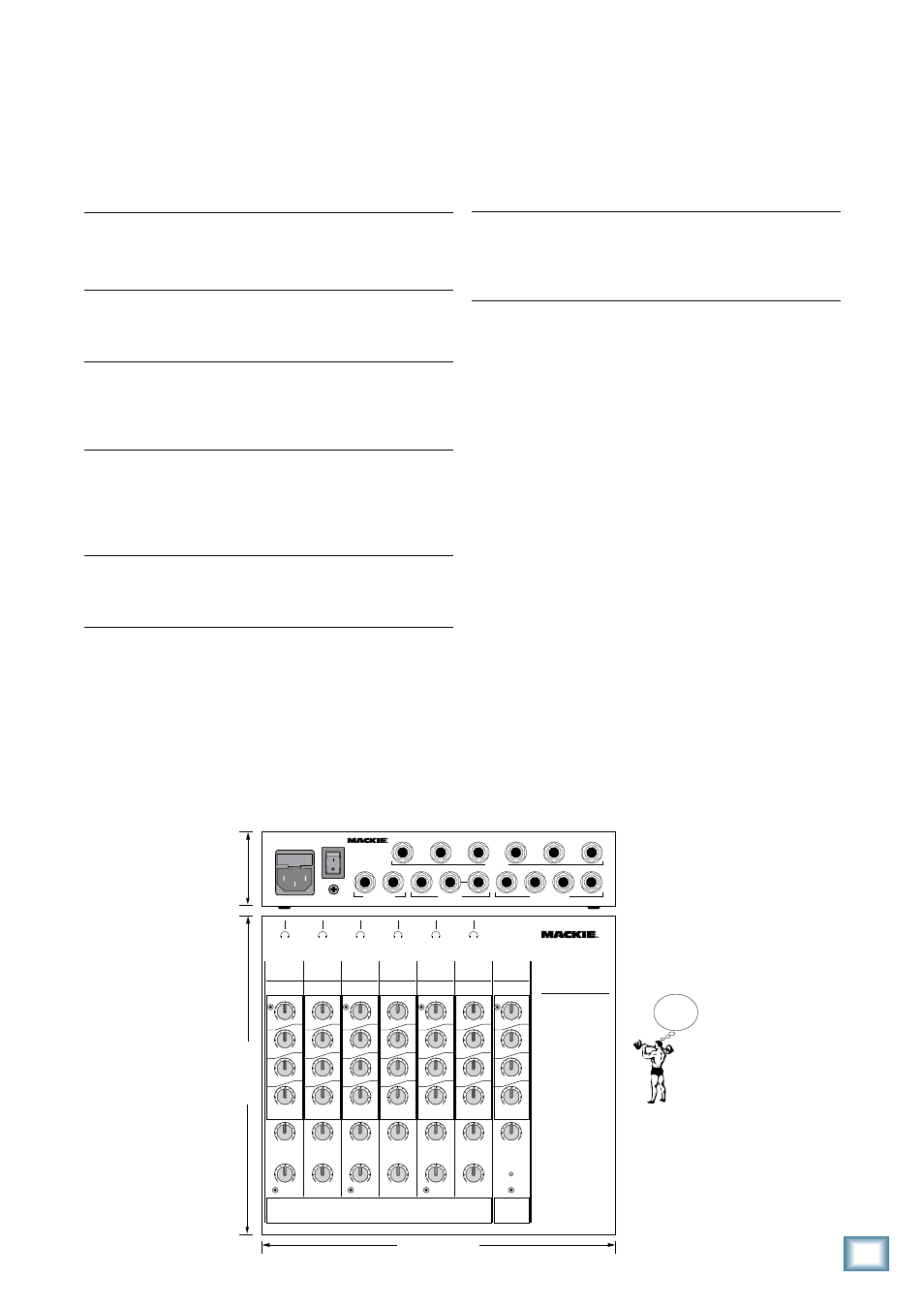

Physical Dimensions and Weight

Height:

2.0 in/51 mm

Width:

9.4 in/239 mm

Depth:

8.5 in/216 mm

Weight:

4.5 lb/2.0 kg

LOUD Technologies Inc. is always striving to improve our prod-
ucts by incorporating new and improved materials, components,
and manufacturing methods. Therefore, we reserve the right to
change these specifications at any time without notice.
“Mackie.” and the “Running Man” are registered trademarks of
LOUD Technologies Inc. All other brand names mentioned are
trademarks or registered trademarks of their respective hold-
ers, and are hereby acknowledged.
©2005-2006 LOUD Technologies Inc. All Rights Reserved.

Appendix C: Technical Info

HMX-56 Specifications

Frequency Response

Main Input to any Output (Level @ 12 o’clock):

+0, –1 dB, 20 Hz to 20 kHz

Distortion (THD & IMD)

Any Input to Phones Output (@ 100 mW output):

THD+N: < 0.07%, 20 Hz to 20 kHz BW

Noise

Residual Output Noise (22 Hz to 22 kHz BW):

–103 dBu (all outputs off, 60Ω load)

–97 dBu (all outputs @ 12 o’clock, 60Ω load)

Input Sensitivity

Main Input and Effects Return to Phones Output:

0 dBu = 1.5 mW/60Ω (Level @ 12 o’clock)

Source Input to Phones Output:

0 dBu = 0.37 mW/60Ω (Level @ 12 o’clock)

Input Gain Control Range

Main Input to any Output:

4 dB maximum

Rated Output

Maximum Rated Output (1 kHz):

100 mW ±0.5 dB @ 1% THD

(60Ω load, all channels driven)

140 mW ±0.5 dB @ 1% THD

(60Ω load, one channel driven)

150 mW ±0.5 dB @ 1% THD

(240Ω load, all channels driven)

195 mW ±0.5 dB @ 1% THD

(240Ω load, one channel driven)
