IP8830 Broadworks IP Phone
User Guide
2 Dec. ‘08
Shared line in use at Red LED On
another phone
Shared line call held at Red LED slow flash
another phone
Line not registered w/server Red/Orange LED flashes color, red to orange at 30 ipm
* When the LCD displays information for a line, such as when an incoming call first rings, the LED
color is orange otherwise, the LED color will be green.
Flexible buttons not assigned for line access may access features such as Speed dial, Redial and others.
Refer to section 5.5 and your system administrator for further information.

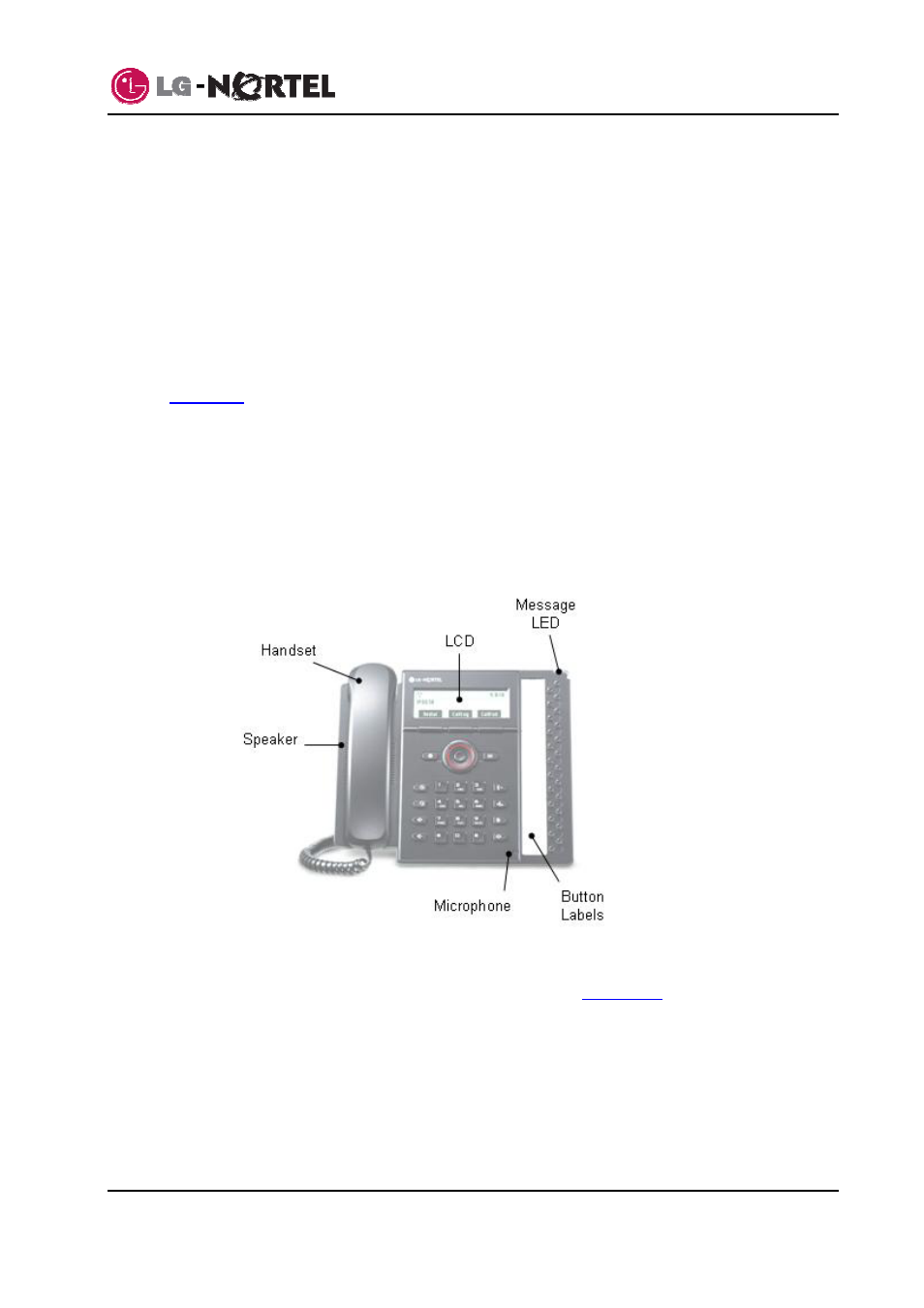

The figure below shows other major components of IP8830 Phone. These components include:
• Handset
• Speaker
and microphone
• Message Wait Indicator (Message LED)
• LCD (240 by 56 pixel), displays 4-lines
• Flexible button labels
The top line of the LCD indicates a number of icons indicating the connection, status and options for the
IP8830 phone. A list of the icons and there meaning are provided in Appendix C .
