FACILITIES AND CONNECTIONS
Issue 2: March 2004
CLASS 1
LASER PRODUCT
POWER OPEN•CLOSE

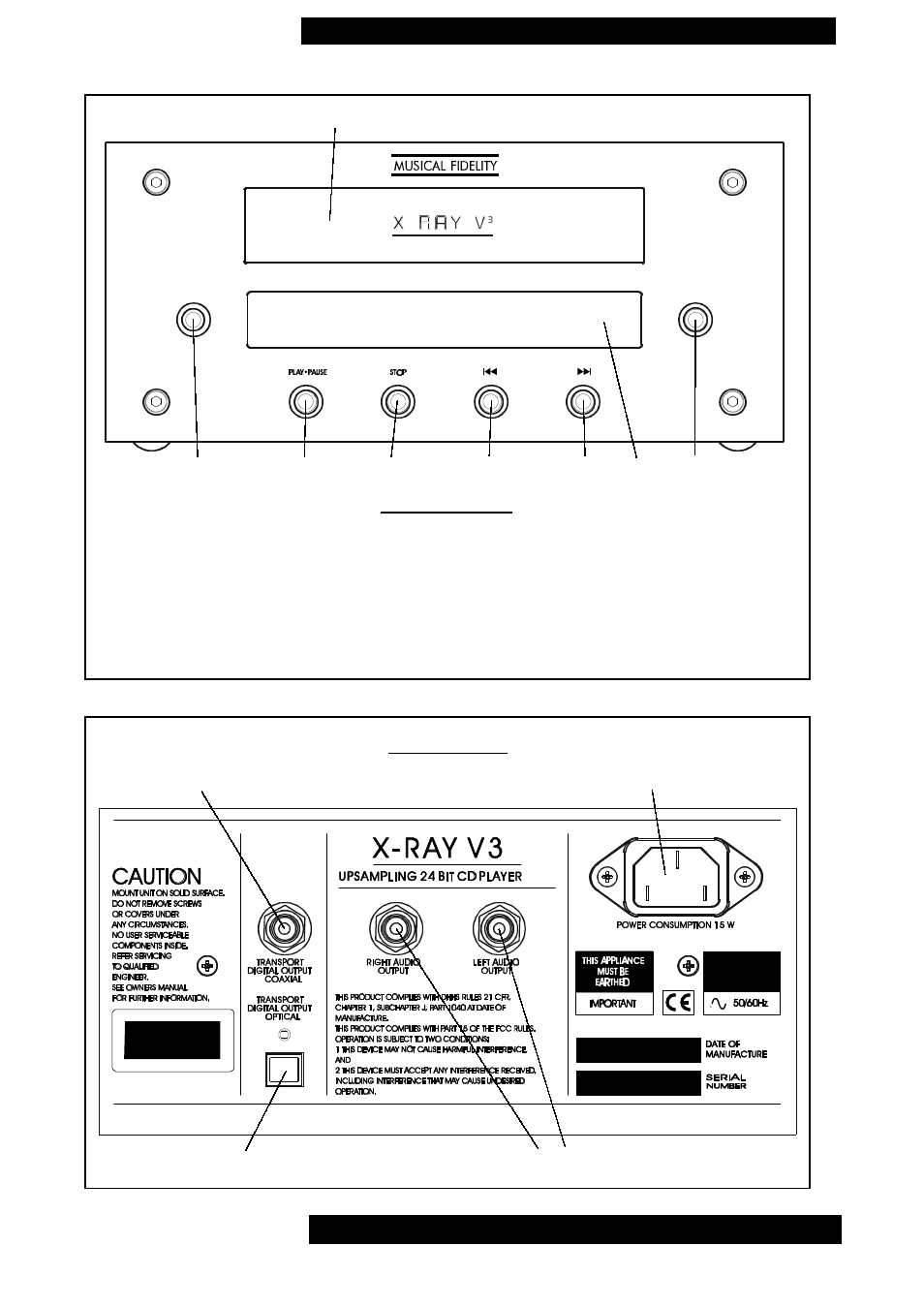

FRONT PANEL
REAR PANEL
DIGITAL OUTPUT - optical
1 2 3 4 5 6 7
8
DIGITAL OUTPUT - coaxial IEC type mains inlet
AUDIO OUTPUTS left and right
5 Next track selector
6 CD player display (incorporates
infra-red remote control receiver)
7 OPEN / CLOSE to open and close
the CD drawer
8 CD transport loading drawer
1 POWER mains on/off switch
2 PLAY/PAUSE to start CD playback,
pause, or resume playback
3 STOP to end CD playback
4 Previous track selector
