Wiring instructions, Warning, Title

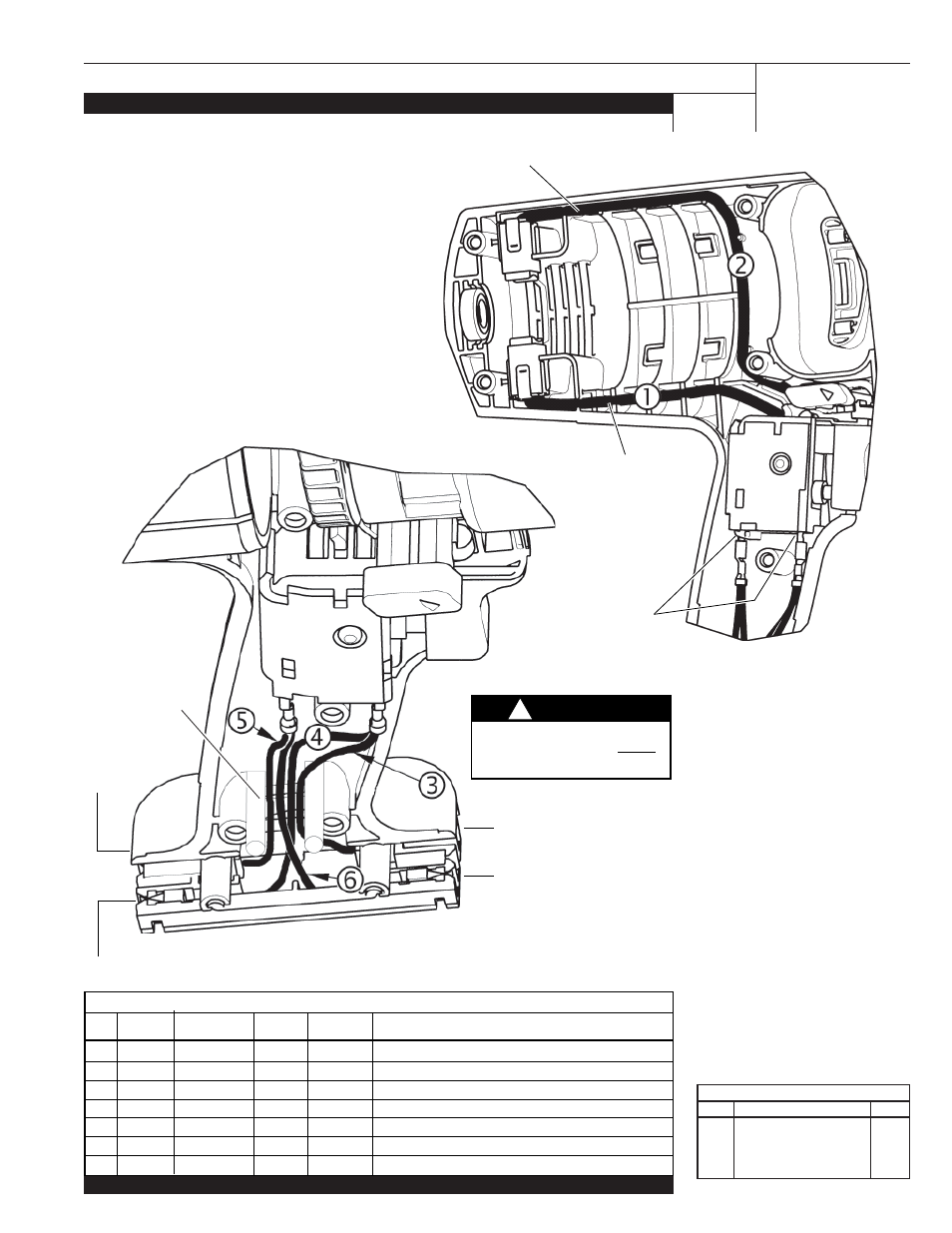

Route red brush assembly
leadwire #2 through wire
traps as shown.
WIRING INSTRUCTIONS
TITLE
DATE
MILWAUKEE ELECTRIC TOOL CORP. 13135 WEST LISBON RD. BROOKFIELD, WIS.
CORDLESS IMPACT WRENCH
58-01-1830
BULLETIN
Mar. 2010
NOTE:
All lead lengths are before stripping.
All leads must be held to ± .125"
unless specifi ed elsewhere.
Strip wire per ES 13-11.
Crimp terminals per ES 13-15.
Drwg. 5
Wire Wire Origin
or
No.
Color
Part No.
Gauge
Length
Terminals, Connectors and End Wire Preparation
1
Black 22-18-1980
-----
Brush
Assembly.
2
Red 22-18-2080
-----
Brush
Assembly.
3
Red
-----
-----
-----
Component of Connector Block Assy. 22-56-0279.
4
Red
-----
-----
-----
Component of Connector Block Assy. 22-56-0279.
5
Black
-----
-----
-----
Component of Connector Block Assy. 22-56-0279.
6
Black
-----
-----
-----
Component of Connector Block Assy. 22-56-0279.
TERMINAL DESCRIPTION
Qty.
Code
Part No.
BULK LEAD WIRE - BULLETIN 58-01-0003
WIRING SPECIFICATIONS
Route black brush
assembly leadwire
#1 through wire
traps as shown.
Black leadwire #6
White leadwire #4
White leadwire #3
Black
leadwire #5
WARNING
SWITCH POLARITY SENSITIVE
If wired incorrectly switch will be
damaged and destroyed!
!
NOTE:
Terminals must be
soldered to switch.
NOTE:
On some early models,
leadwires #3 and #4 may be red.
Later production and service
replacements are white.
ROUTE THE
LEADWIRES
BETWEEN THE
POSTS.
