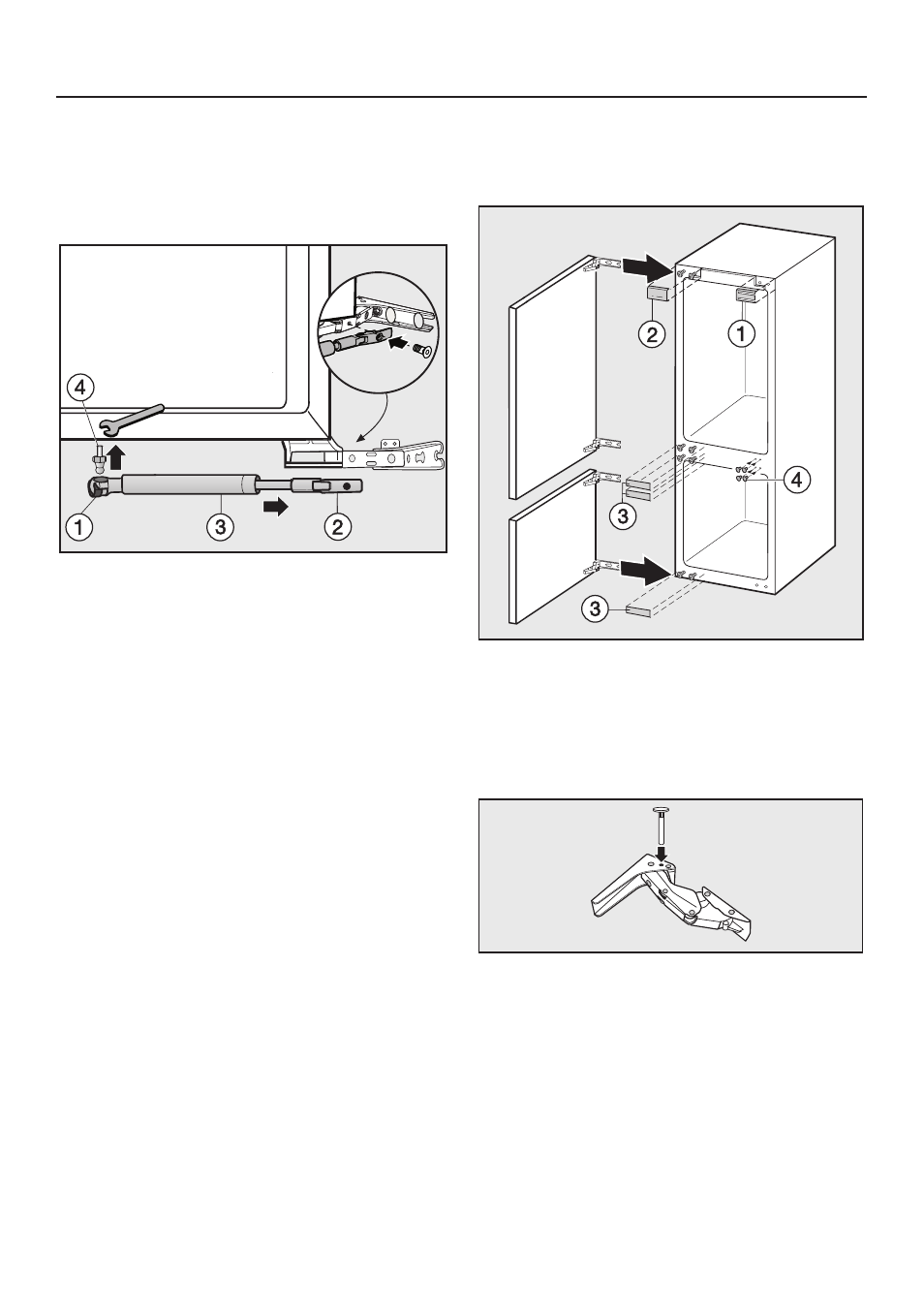

Fastening the door damper
^ With its exterior facing downwards,
again place the appliance door on a
stable surface.
^ Screw the ball joint d of the door
damper
c to the new mounting hole.
^ Push the tension spring a inward.
^ Screw the mounting plate b onto the
hinge.
^ Pull open the door damper c and
secure it to the ball joint
d.
^ Hang the appliance doors on the
pre-fitted screws and push the doors
inward.
^ Tighten the screws at the top, middle
and bottom.
^ Snap on the covers a, b and c.
^ Replace the plugs d.
^ Insert the pins from above (if
necessary).
Adjusting the door hinges
