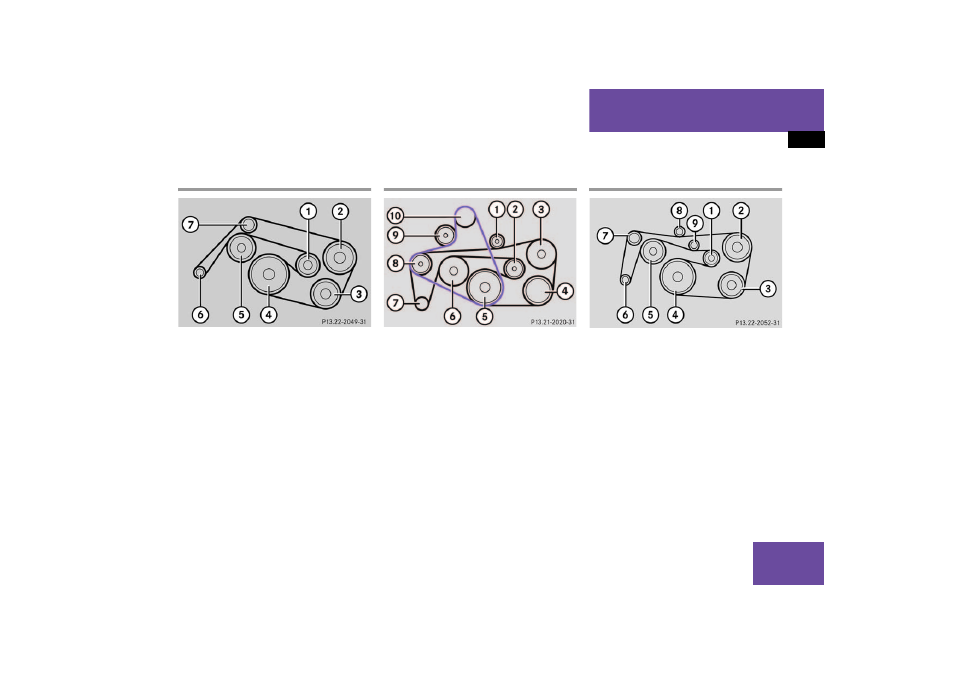

Layout of poly-V-belt drive
Layout of poly-V-belt drive
S 430 / S 500
1 Automatic belt tensioner
2 Power steering pump
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
S 55 AMG
The S 55 AMG has two poly-V-belts (belt one
shown in purple/belt two shown in black).
1 Idler pulley
2 Automatic belt tensioner
3 Power steering pump
4 Air conditioning compressor
5 Crankshaft
6 Coolant pump
7 Generator (alternator)
8 Idler pulley
9 Automatic belt tensioner
10 Super charger
S 600
1 Automatic belt tensioner
2 Power steering pump
3 Air conditioning compressor
4 Crankshaft
5 Coolant pump
6 Generator (alternator)
7 Idler pulley
8 Idler pulley
9 Idler pulley
