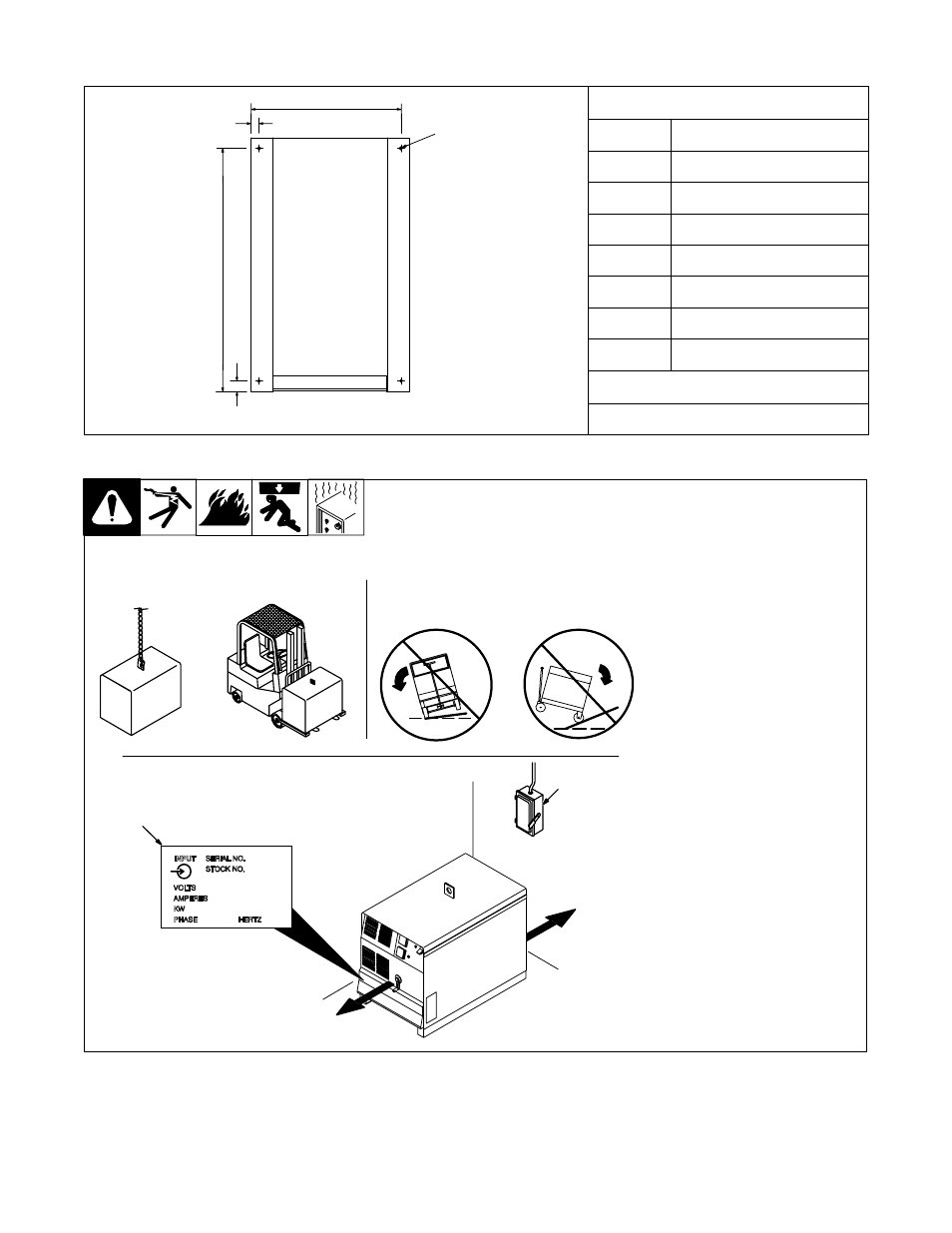

2-4. Dimensions And Weights
C
Dimensions
D
C
Dimensions
E
4 Holes
D
Height 27-1/4 in (692 mm)
4 Holes
Width 22-1/4 in (565 mm)
Depth 28-1/4 in (717 mm)
A 27-1/2 in (698 mm)
A
B 3/4 in (19 mm)
A
C 21 in (533 mm)
D 1-3/16 in (30 mm)
E 7/16 in (11 mm) Dia
Weight
ST-801 530
B 320 lb (145 kg)
2-5. Selecting A Location
1 Rating Label
Use rating label to determine input
power needs. Label located under
front access door.
2 Line Disconnect Device
Locate unit near correct input
power supply.
Y Special installation may be
required where gasoline or
volatile liquids are present −
see NEC Article 511 or CEC
Section 20.
2
18 in
(460 mm)
18 in
(460 mm)
Movement
Location And Airflow
1
Y Do not move or operate unit
where it could tip.
Tipping
Ref. ST-801 378-B
