6
F
IREPLACE
C
OMPONENTS
53D9051. Rev 1 03/03

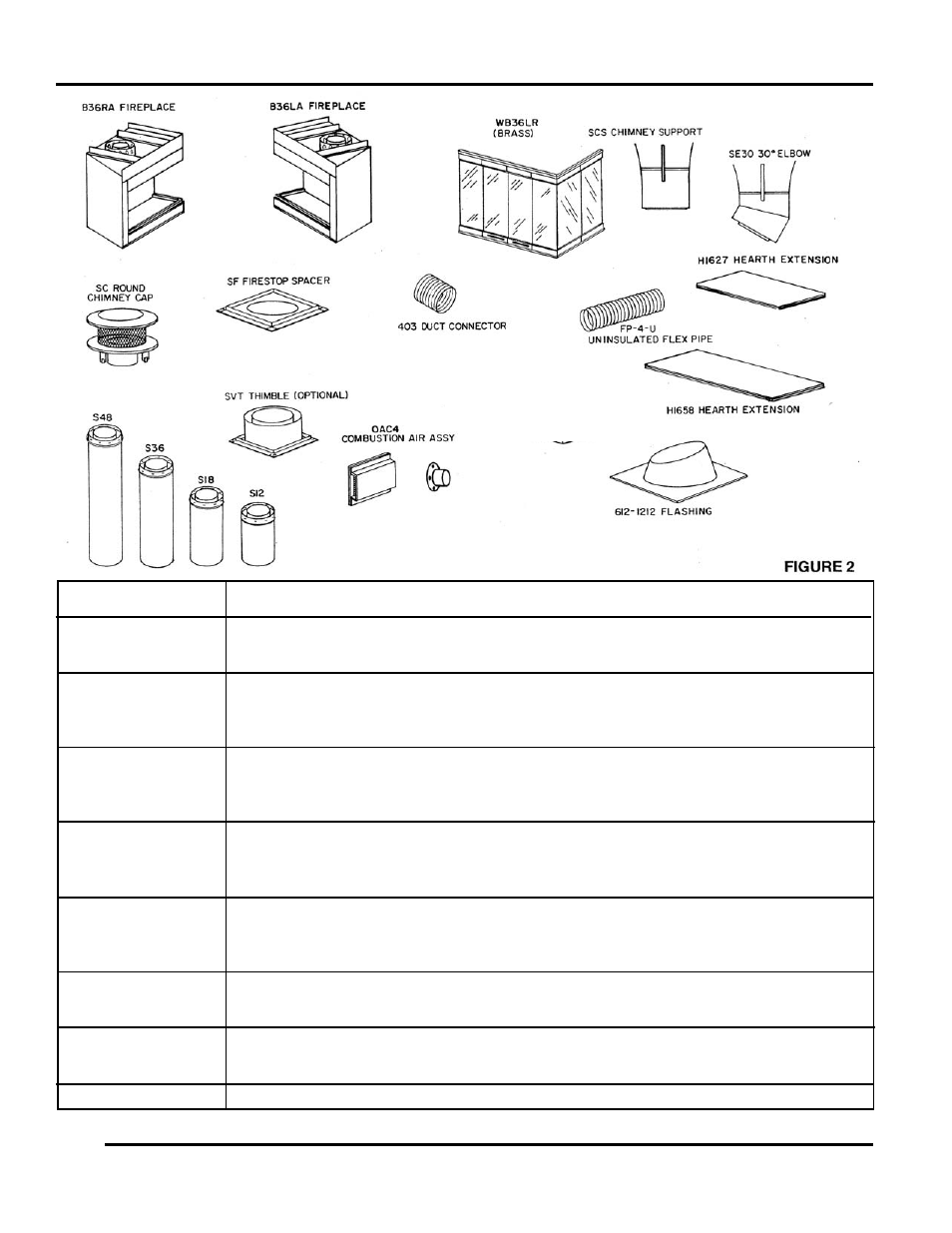

MODEL NUMBER DESCRIPTION
624WBCL, 624WBCR Left or right end open fireplace. Includes wire firescreen, sealing flue damper and
outside combustion air capability. When installed, outside combustion air can be
connected to left side. See installation instruction for details.
S48 4-foot chimney section (8-inch-diameter flue).
S36 3-foot chimney section (8-inch-diameter flue).
S18 1-1/2 foot chimney section (8-inch-diameter flue).
S12 1-foot chimney section (8-inch-diameter flue).
SE30 30-degree elbows (package contains two 8 inch diameter elbows). One pair is required
for each offset. Maximum -- two pairs (4 elbows per chimney).
SCS Chimney support (required when chimney height exceeds 30 feet).
SC Round chimney cap for contemporary installations. Includes storm collar.
SCL Round telescoping chimney cap.
SQL8 Square telescoping chimney cap.
612 0-6/12 pitch flashing for contemporary installation. One required with SC round chimney
cap on 0-6/12 pitch roof.
1212 6/12 - 12/12 pitch flashing for contemporary installation. One required with SC round
chimney cap on 6/12-12/12 pitch roof.
SF 14 1/2” inch firestop spacer --One required at each ceiling or floor level.
SF-30 Firestop spacer - for 30º chimney incline through ceiling or floor.
FP-4-U 4-inch insulated combustion air duct -- 8 foot lengths.
403 4-inch duct connector (for splicing FP-4 ducts). Includes two clamps.
OAC4 4-inches outside combustion assembly.
WB36LR Optional polished brass glass door kit.
H1658 Hearth extension board for front opening. (16” x 58”)
H1627 Hearth extension board for end opening. (16” x 27”)
S8 Telescoping Assembly for use with telescoping chimney caps.
