Arts, Iagram – Monessen Hearth Corner Fireplace 624WBCR User Manual
Page 31
31
53D9051. Rev 1 03/03
P
ARTS
D
IAGRAM
AND
L
IST
All repair part orders should be placed through your local dealer. To ensure prompt and accurate service,
please provide the following information when placing a repair part order: Model number of your Appliance,
Part Name, Part Number, and Quantity of parts needed. See Figure 34.
Technical Service Department
2813 W. Mall Drive, Unit B.
Florence, Alabama 35630.
Tel. - 1-866-500-5671
www.monessenhearth.com

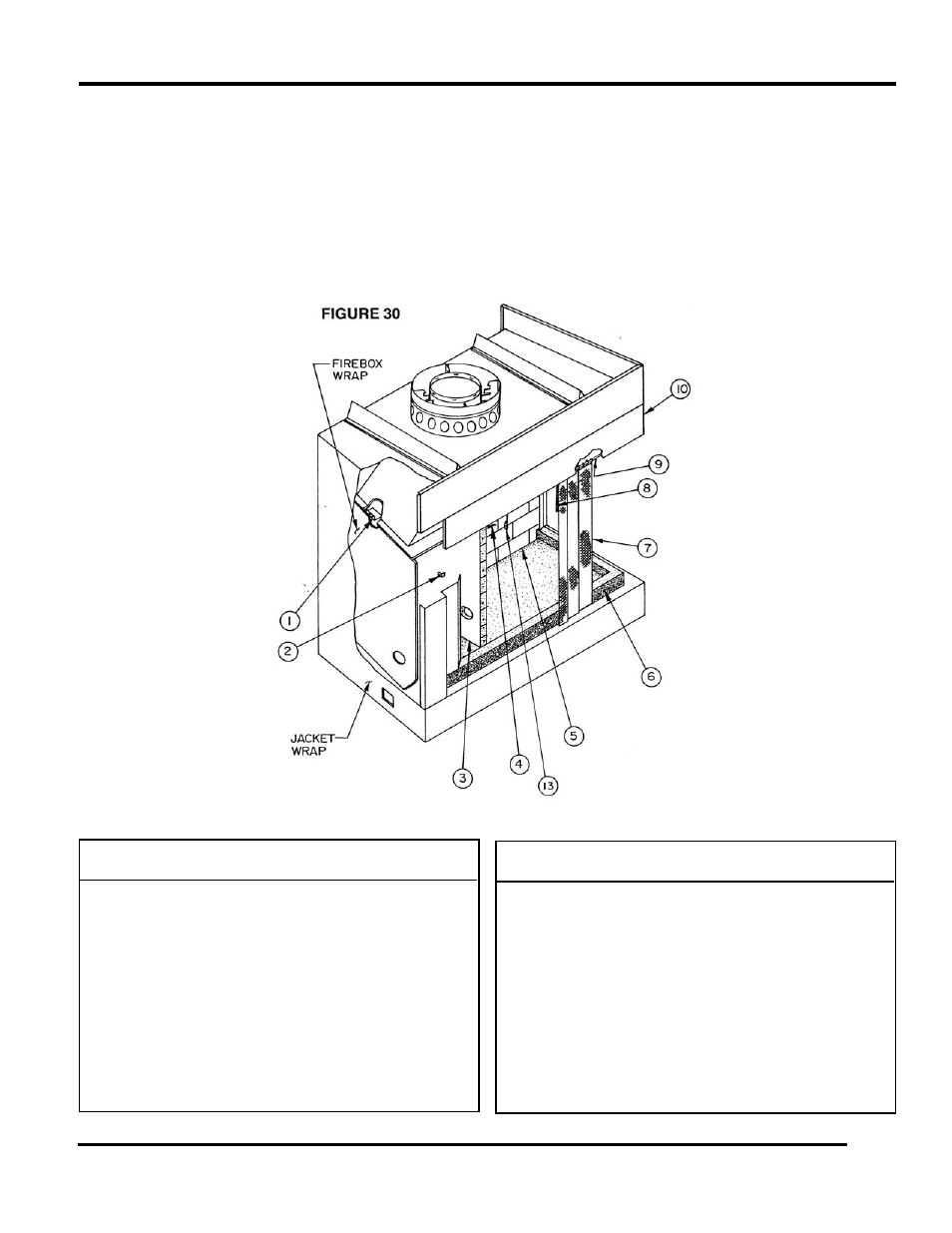

KEY
MPL
MPL
NO. PART NAME
QTY.
PART NO.
1
Retainer Side Brick
1
020270
2
Retainer
2
Z19901
3
Firebrick Side Assy. Right
1
014012
4
Rod Outside Air
1
020293
5
Firebrick Back Assy.
1
014048
6
Hearth Refractory
1
029986
7
Screen Panel
2
026400
8
Screen Pull
2
026391
9
Rod Screen Weld Assy.
1
021673
10
Panel Upper Ptnd.
1
021541
11
Rod Damper
1
037390
12
Damper Weldment
1
037393
KEY
MPL
MPL
NO. PART NAME
QTY.
PART NO.
1
Retainer Side Brick
1
020270
2
Retainer
2
Z19901
3
Firebrick Side Assy. Left
1
021663
4
Rod Outside Air
1
020293
5
Firebrick Back Assy.
1
014048
6
Hearth Refractory
1
029986
7
Screen Panel
2
026400
8
Screen Pull
2
026391
9
Rod Screen Weld Assy.
1
021673
10
Panel Upper Ptnd.
1
021541
11
Rod Damper
1
037390
12
Damper Weldment
1
037393
624WBCL
624WBCR
