Page 9

5
Assembly
IS4823-2 and IS4825-2

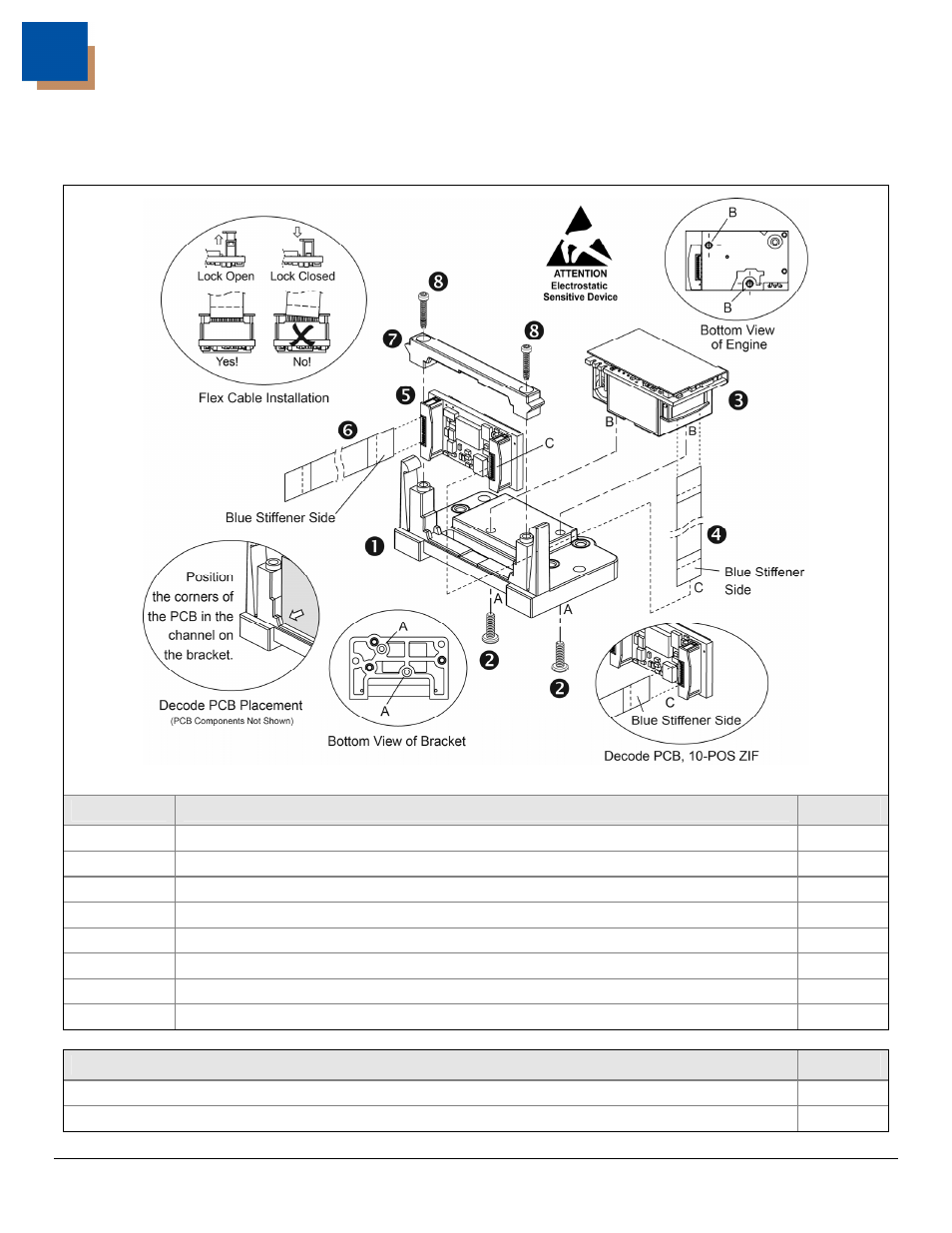

Figure 7. IS4823-2/IS4825-2 Assembly
Item
Description
Qty.
1 Bracket,
Base
1
2
Screw, M1.6 x 35 – 5 mm, Philips Stainless Steel with Patch
2
3
IS4813 or IS4815 Scan Engine
1
4
Flex Cable, 10-POS
1
5
Decode Printed Circuit Board
1
6
Flex Cable, 12-POS
1
7
Bracket, PCB Locking Bar
1
8
Screw, M1.2 – 6 mm, T3, Thread Forming
2
Tools Required
Size
Torx
®
Screw Driver
T3
Phillips Screw Driver
00
