Hardware description, Physical dimensions, Front panel – Milan Technology MIL-L800i User Manual
Page 6
3
2.
Hardware Description
This Section describes the hardware of the 8 port Power over Ethernet Hub, and gives a
physical and functional overview.
Physical Dimensions
The MIL-L800i PoE Injector Hub’s physical dimension is:
440mm x 224mm x 44mm (Lx W x H)
Front Panel
The Front Panel of the MIL-L800i PoE Injector Hub consists of 16x RJ-45 Ethernet ports
(8xData In+8x Data+Power Out), LED indicators, and one console port.

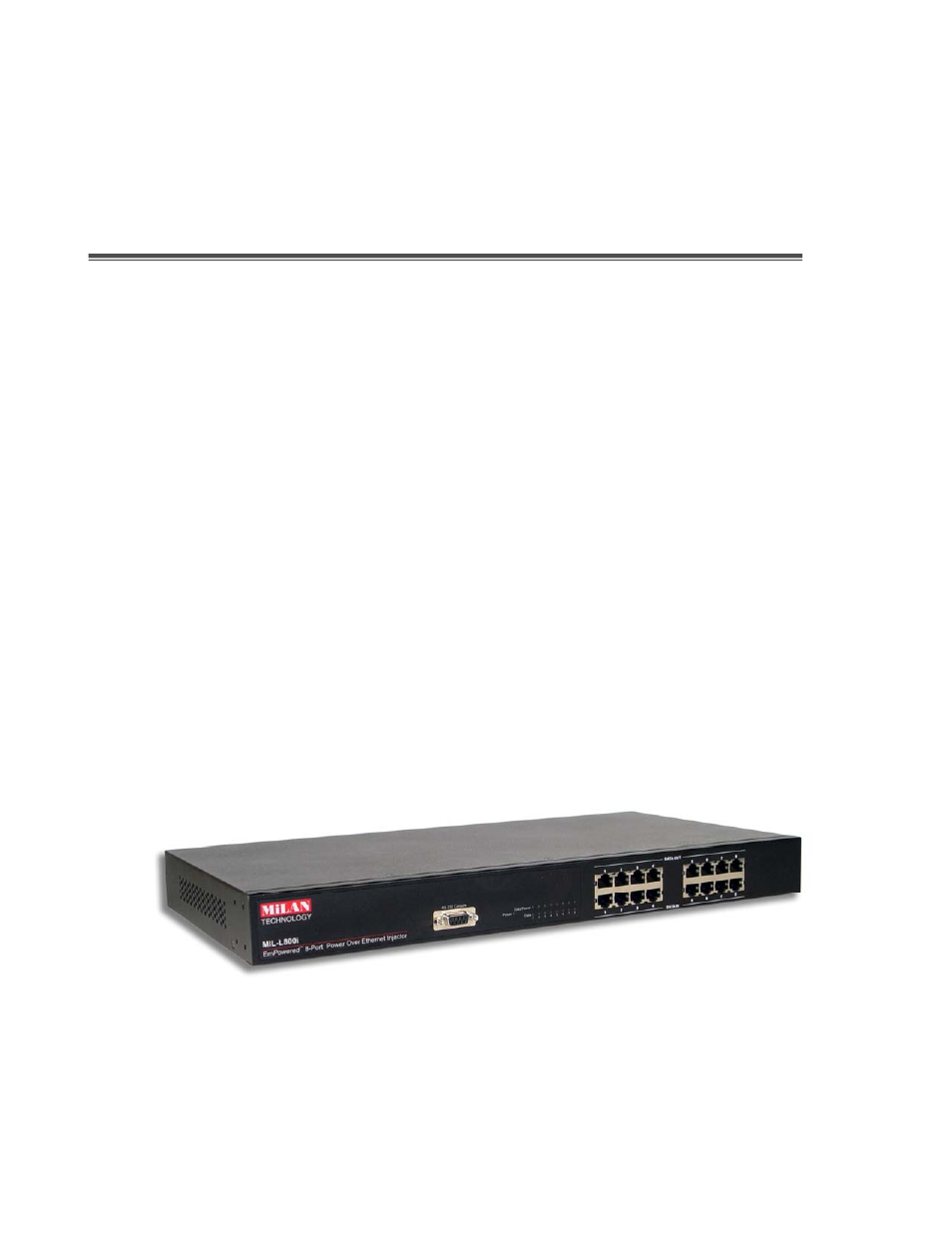

Figure 2-1. The Front panel of 8 port Power over Ethernet Hub
