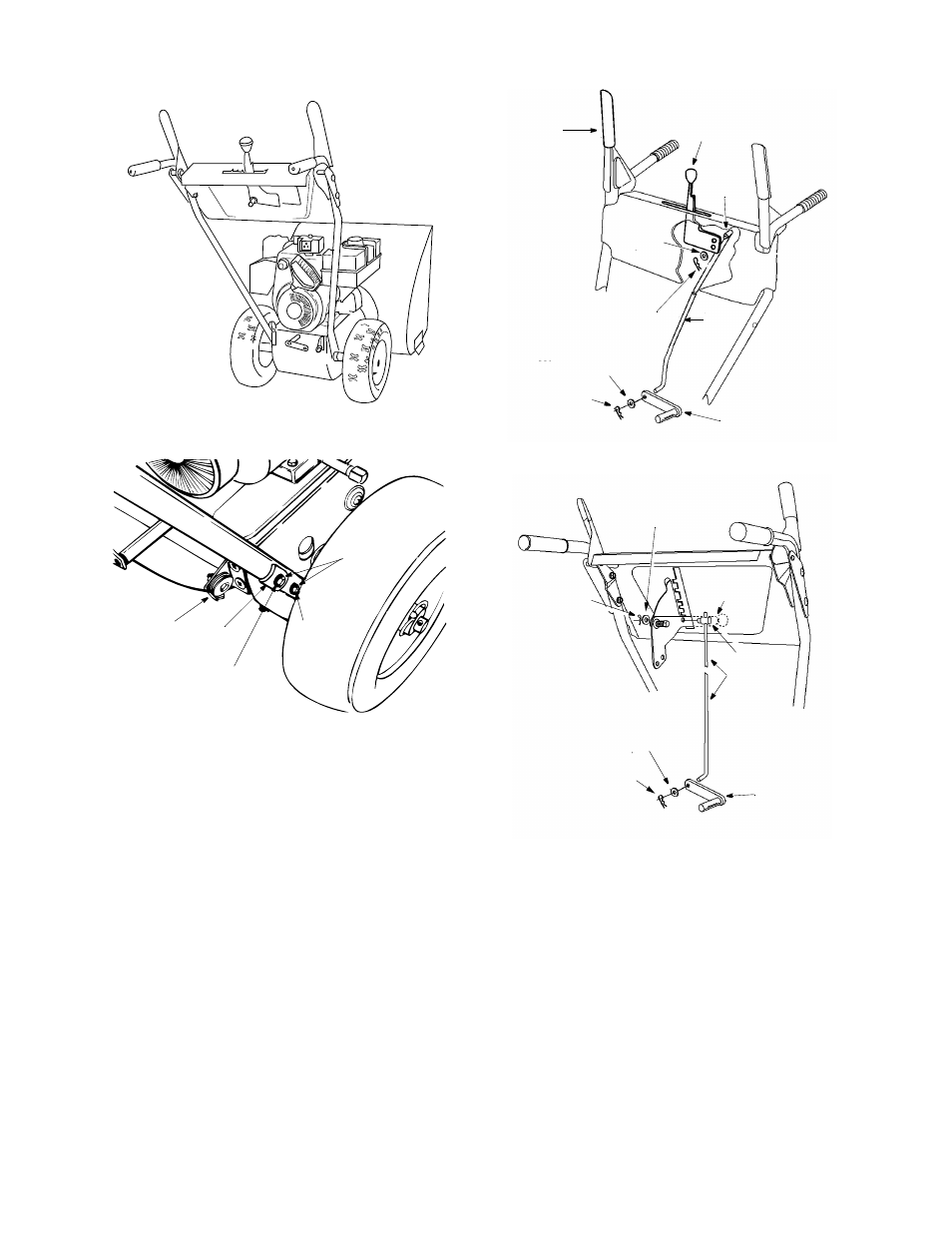

ATTACHING SHIFT ROD

(Hardware D)

1.

Place the shift lever in the fastest forward speed
position.

2.

Models 642, 662: Rotate the shift arm assembly
counter clockwise, as far as it will go. Insert the
shift rod through the shift arm assembly. When
installed the shift arm assembly should point to
the right. Secure with flat washer and hairpin
clip. See Figure 11.
Models 614, 644, 664 and 6A4: Rotate the shift
arm assembly counter clockwise as far as it will
go. Insert the shift rod through the shift arm
assembly. When installed, the shift arm
assembly should point left. Secure with flat
washer and hairpin clip. See Figure 12.

Figure 11

Figure 12

3.

Models 642, 662: Thread the ferrule up or down
the shift rod and align with the lower hole on the
wider side of the shift lever assembly behind the
handle panel. See Figure 11.
Models 614, 644, 664, and 6A4: Thread the
ferrule onto the shift rod, up or down the shift rod
and align with the far hole on the narrow side of the
shift lever assembly behind the handle panel. See
Figure 12.

4.

Secure the ferrule to the shift arm assembly with
flat washer and hairpin clip.

NOTE:

Make certain to check for correct

adjustment of the shift rod as instructed in the FINAL
ADJUSTMENTS section before operating the snow
thrower.

Handle

Bolt 1-3/4”

3/4” Long

Washers

Hex Bolt

Tab

Long

Hex

Lock

Cable
Roller
Guide

Traction

Clutch

Drive

Shift

Lever

Ferrule

Hairpin

Clip

Flat

Washer

Hairpin

Clip

Shift

Arm

Assembly

Flat

Washer

Shift

Rod

Models 642 and 662

Flat

Washer

Shift

Lever

Hairpin

Clip

Ferrule

Flat

Washer

Hairpin

Clip

Shift

Rod

Shift

Arm

Assembly

Models 614, 644, 664, and 6A4
