⁄6 Numeric buttons 1 to 9 / Surround
mode buttons
Numeric buttons (1 - 9)
These buttons are used to enter figures in the selection of a tuner
preset station and station name preset or to set select a CD track
number, etc.
The functions of these buttons are dependent on the function button
selected.
Surround mode buttons (when AMP mode is selected)
These buttons are also used to select the surround mode.
Note:
• The M-CH ST button is used to 6-stereo mode.
⁄7 0 / A/D button
0 button
This button is used to enter the number “0”
A/D button (when AMP mode is selected)
This is used to switch between the analog and digital inputs.
⁄8 MENU button and MENU OFF button
MENU button is used to enter the menu functions. Use the menu
functions to setup SR4300. MENU OFF button is used to return
original display from menu functions.
⁄9 Cursor buttons ( , , , , OK)
Use these button when operating the SETUP MENU functions.
: Moves the cursor left
: Moves the cursor right
: Moves the cursor up
: Moves the cursor down
OK : Enters to the SETUP MENU or Confirms the setting
¤0 MAIN VOLUME (Up) / (Down)
buttons
Adjusts the overall sound level. The front, surround, center and
s u b w o o f e r c h a n n e l v o l u m e s c o n t r o l l e d b y t h e s e b u t t o n s
simultaneously.
¤1 CONTROL buttons
These buttons are used when operating the CD player, TAPE deck,
etc. The function of these buttons are dependent on the function
button selected.
¤2 ATT (attenuate) button
When the input signal is too high and the voice distorts even by
throttling the SR4300 VOLUME control, turn on this function. “ATT” is
indicated when this function is activated.
The input level is reduced. Attenuation is invalid for use with the output
signal of “REC OUT”.

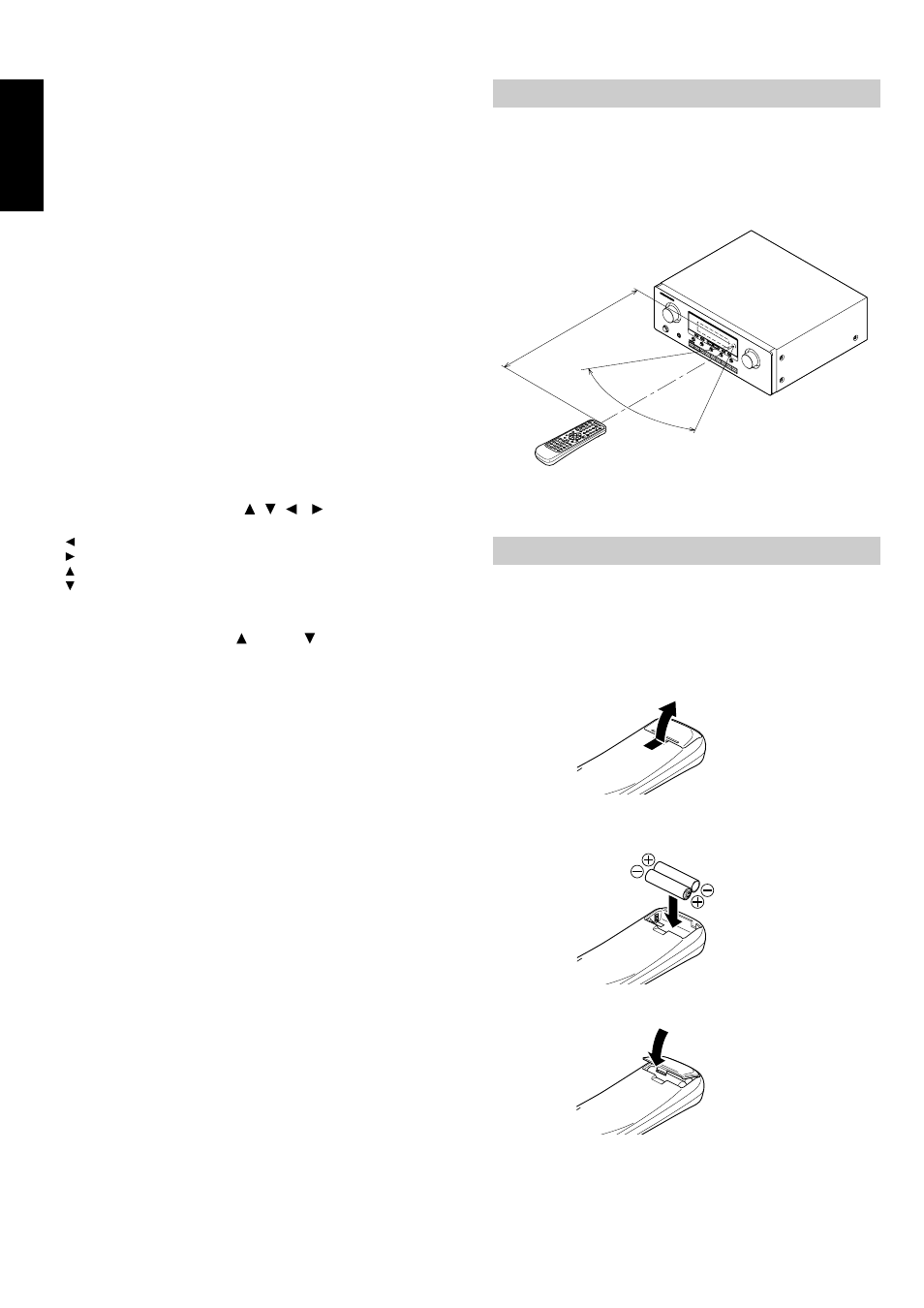

REMOTE CONTROL RANGE
The distance between the transmitter of the remote control unit and
the IR SENSOR of the SR4300 should be less than about 5 meters. If
the transmitter is pointed to a direction other than the IR SENSOR or if
there is an obstacle between them, remote control may not be
possible.
Remote-controllable range
LOADING BATTERIES
When you use RC4300SR for the first time, you have to install the
batteries. The RC4300SR requires 2 AAA-batteries (2 x 1,5 V) to
function.
Note
• Attached batteries are to check basic function of remote control
unit.
1.
Remove the back cover.
2.
Insert the new batteries (AAA type) with correct (+) and (–)
polarity.
3.
Close until it clicks.
Remote control unit (RC4300SR)
60 °
SR4300
OK
Approx. 5 m
