Input and Output Connections
(Continued)

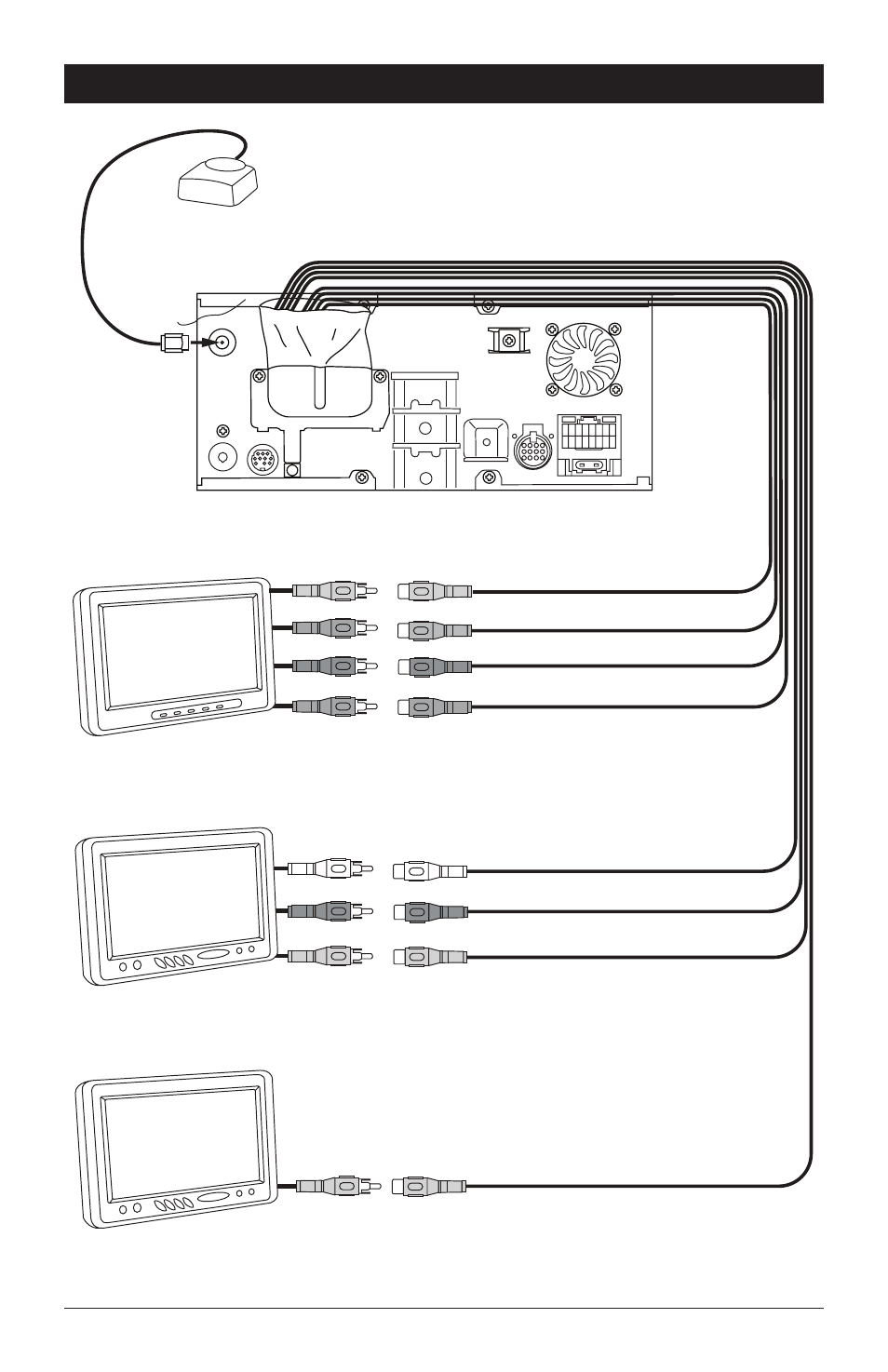

RGB Monitor (Optional)
TV Monitor (Optional)
Video Second Monitor (Optional)
Video Output (Yellow)
Video Output (Red)
Video Output (Green)
Video Output (Blue)
Sync (Brown)
Audio Output Left (White)
Audio Output Right (Red)
Video Output (Yellow)
Note: Audio Output is not
controlled by the M4-LCD
GPS Antenna
(Supplied, M4-LCD Only)
