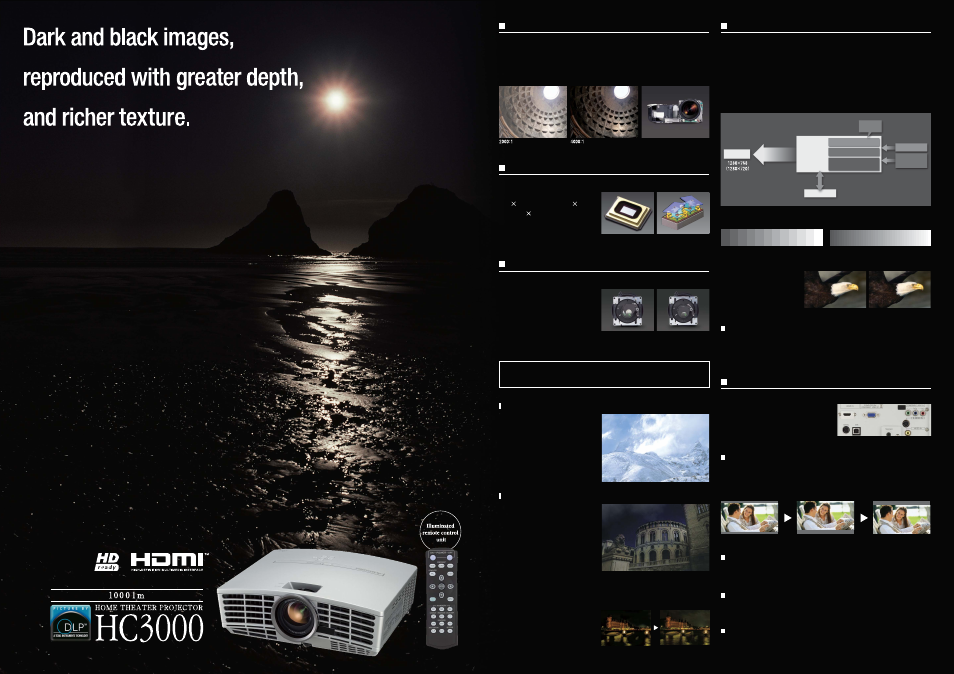

High-speed LVDS (low-voltage differential signal) driven
Equipped with high-speed memory (RLDRAM) that raises data transmission efficiency and high-
speed LVDS drive, for high-caliber gradation expression challenging the high-end model range.
Equipped with newly developed panel driver (DDP3020)
Formatter board mounted with integrated full 10-bit processing I/P conversion and scaler and 12-
bit floating point digital gamma corrector. This combination delivers some quadruple the
gradation of the conventional 8-bit version; portraying flesh tones in smooth and flowing images.
Fine-detail gradation reproduction, closing in on the high-end realm
Equipped with 10-bit I/P conversion circuit to eliminate pesky jaggies
Mounting with full 10-bit processing I/P
conversion circuits, forging dramatic
improvements in noise. Rids the
screen of diagonal jaggies, repro-
ducing smooth and striking images.
DDP2000
DDP3020
High contrast performance of 4000:1
Complementing the new DMD, high-detail all-glass lens and newly developed panel drive
combine to realize profuse gradation expression, weighted to rich dark and black
images. The iris lens aperture further enhances the package, elevating high contrast
performance of 4000:1.
Rich visual reproduction, accentuating the dark, black images
All-Glass Lens
Fully open iris (2700:1)
Stopped down iris (4000:1)
Motor-driven iris lens with 2-level switching
Equipped with motor-driven variable lens
aperture, for optical contrast adjustments
ensuring optimal incident light supply to
the DMD chip. Two-level remote control
switching further simplifies the user-
friendly function.
Evolving the optical engine to new heights
8bit(256steps)
10bit(1024steps)Quadruple the Gradation
Standard mode + iris full aperture (1000lm) + color wheel (RGB RGB)
Sparkling brightness of 1000lm, combining
iris lens open contrast of 2700:1 with a
new color wheel. Enhanced viewing of
brilliant images in brightly lit rooms –
especially spectacular for sporting events
and other television viewing.
Low-mode iris aperture (450lm)
Brightness is controlled by lowering the iris
lens aperture, delivering 4000:1 contrast. The
result is highly enhanced black gradation,
nearing the caliber of high-end models.
Engineered to excel in movie viewing by
raising the weight of dark, black images.
and high picture quality modes, best accommodating the images being screened.
User gamma correction
5-Stage Adjustment
In addition to the three modes of Sports, Video and Cinema, for movie viewing, this projector
addresses demands for “higher black level reproduction,” “brighter medium contrast” and
“toned down highlights” unachievable with
conventional brightness functions. The key
is independent operation of black, medium,
and white gradation, for subtle picture
change and adjustment.
Upward Position Movement
Downward Position Movement
< Example of squeeze cinemascope screen >
Visual position and shutter function, to enjoy movies at the optimum position each time
Bundled with shutter function to eliminate unwanted vertical image domains (black bands,
etc.) on cinemascope screens, and image position function to move the screen up and down.
Creating the maximum environment, for movie pleasure.
Trigger terminal
Screen trigger links the projector power source switch and motor-driven screen up/down
function. Commence screenings at the touch of a finger.
Vertical / horizontal trapezoidal distortion correction
Use of digital trapezoidal distortion correction enables screen distortion to be corrected
±40 steps lengthwise and ±25 steps crosswise.
Over-scan volume adjustment
A feature making it possible to adjust the over-scan rate of images contained in DVD and other
media from 90% to 100%, moving at 1% increments. (when connected to HDMI and component)
BrilliantColor™
Backed by new color processing algorithms and system level color signal picture quality
enhancement processing, images of neutral tints (heavily present in videos and natural
scenery) are reproduced in bright and vibrant tones.
HDMI terminal
Visual signals forwarded with a single cable
Combined with DVD players and other digital
visual equipment, realizing full digital trans-
mission that delivers entertainment free of
picture deterioration from AD/DA conversion.
Mounted with the brand new 0.65-type WXGA panel
Compatible with three resolution modes:
1280 720 (HD), Real XGA1024 768, and
WXGA1280 768 (15:9). Resolution levels
may also be changed, depending on the
hardware in use.
Key to crisp, clear images, and high resolution
Digital Micro-Mirror Device Pixel Composition Map
DMD
HC3000
Adoption of high-speed transmission system,
compatible with high-pixel DMD.
Heightened gradation expression capacity is
another welcome benefit
High-speed
LVDS driven
Formatter
Board
I/P Conversion
Pixel Conversion IC
12-bit floating point
digital gamma correction
Cutting edge memory (RLDLAM) to
improve data transmission efficiency,
for even greater gradation expression.
RLDRAM
480i 576i
480p 576p
1080i 720p
10bit
DDP3020
Data transmission flow
Contrast that produces subtle gradation, woven of light and shadow.
High-definition quality, fostering sensations of texture in screen-projected images.
The beauty of images, determined by the capacity to reproduce rich black tones.
Adoption of a new DMD that radically curbs diffuse reflection of light,
and a newly developed panel driver for handsome gradation.
The result is dramatic contrast of 4000:1,
and overpowering image expression challenging the high-end model realm.
Picture quality real, and fine in detail.
The reproduction capacity, and the devotion to black images,
will transform the room into truly lavish theater space.
