Milwaukee RAVL42 - Manual (Page 37)

37
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
Controls
H4635 DWTK Wall Thermostat, Digital
H0251 RCL-STAT Remote Control, RCL-STAT, Deluxe Thermo-
stat DC
(ref. form #750129M)
Cat. No. Description
H3134 Cassette Assembly, NG (if LP, Also Requires 75064
Conversion Kit)
H6030 Burner Pan Assembly
H5922 Pilot Assembly (Convertible NG to LP)
H5942 Gas Control Valve NG (if LP, also Requires H5945 Regu-
lator Kit)
H5943 Regulator NG
H5945 Regulator LP
H5928 Main Burner Orifice #30 NG
H5929 Main Burner Orifice #49 LP
H3121 Blower W/Mounting Brackets
H5875 Blower Snap Switch
H5742 Blower Speed Control (rheostat)
H5744 On/Off Switch
H3119 On/Off Switch Wires
H5745 Piezo Igniter
H3120 Electrical Harness W/Inner Plate
H5859 Log Set
H5863 Bag of Embers / volcanic stone
H5864 Bag of Rockwool
H3101 Firebox Door W/Glass
H3123 Flue Restrictor Plates W/Hardware
Brick Panel Kits
(ref. form #775269M)
Cat. No. Model Description
H7984 RAVL42-STD-BRK Standard Tan Brick
H7986 RAVL42-ARCHSTONE Architectural Stone
75356 RAVL42-RED-BRK Red Brick
Gas Conversion Kits
75095 RAVL42-CK-LP to NG Conversion Kit LP to NG (ref. form #775241M)
75064 RAVL42-CK-NG to LP Conversion Kit NG to LP (ref. form #775250M)
Misc .
75259 NP-RAVL30/42 Nail Plates (4 x 12) galvanized
75247 Reducer 8”-6 5/8” Reducer (8” to 6-5/8”)
75134 RAVL42-DUCTKT Ductability Kit (ref. form #775272M)
75260 RAVL42-DHHS, Dog House Heat Shield (for remote thermo-
stat)
(ref. form #775207M)

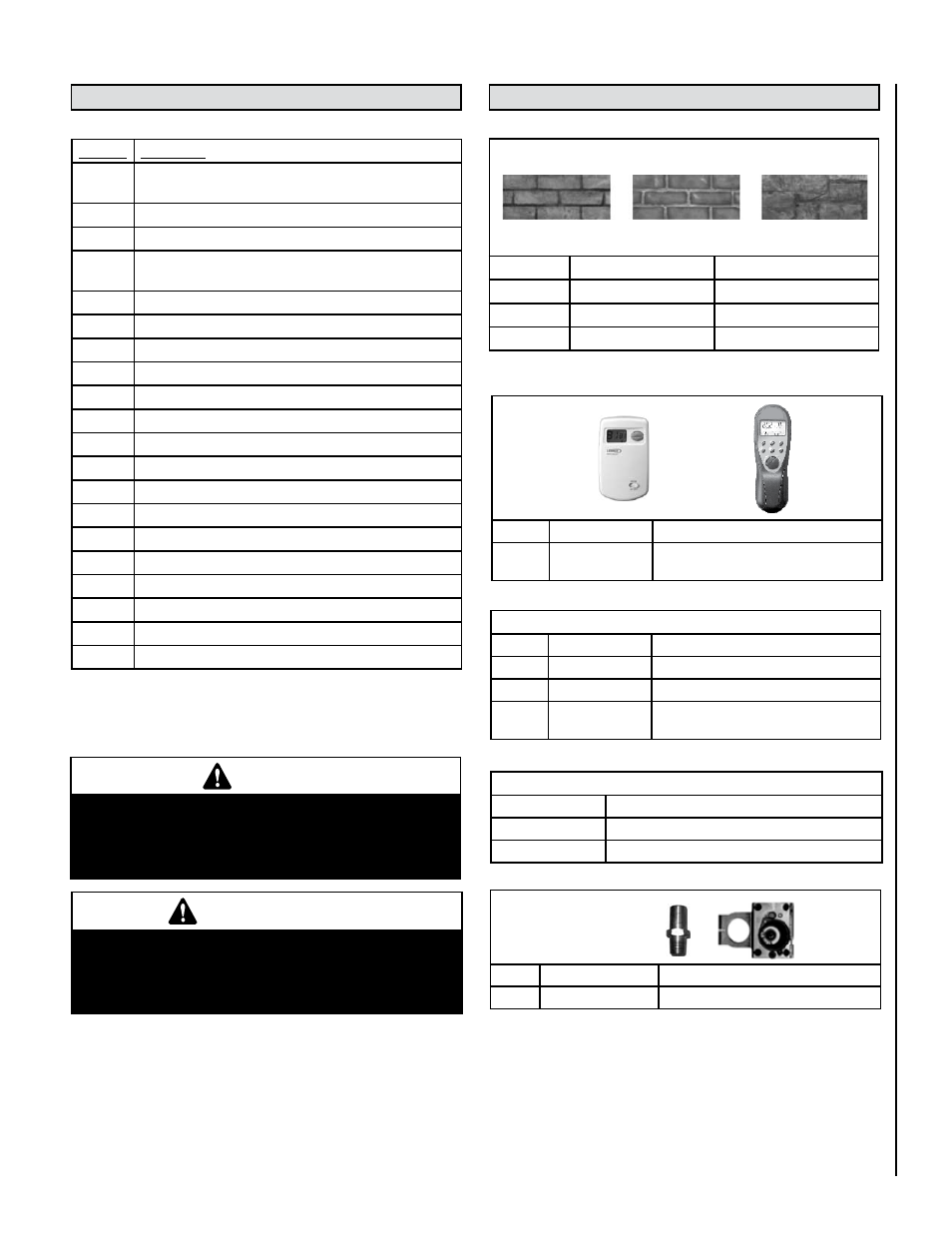

ACCESSORIES REPLACEMENT PARTS - Ravelle™ 42 (RAVL42)
Standard Tan Brick Architectural Stone Red Brick
Wall
Thermostat
Deluxe
Remote
Control
NOTE: The form numbers referenced are the part numbers of the instruction
sheets included in kits.
Knobs
75169 Gold (set of 2)
75170 Brushed Nickel (set of 2)
75010 Black Nickel (set of 2)
WARNING
Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically
approved with this appliance may result in property
damage or personal injury.
AVERTISSEMENT
Risque de dommages ou de blessures si les pièces
ne sont pas installées conformément à ces schémas
et ou si des pièces autres que celles spécifiquement
approuvées avec cet appareil sont utilisées.
Contact an Authorized Lennox Hearth Products dealer to obtain any of
these parts. Never use substitute materials. Use of non-approved parts
can result in poor performance and safety hazards.
