Non-inventory Item
Item
No.
Description
Type 1
Type 2
Type 3
Type 4
1
Motor D.C. 9V
(With Item 16)
629544-7 (No
Longer Available)
629578-0 (No
Longer Available)
629581-1
15
Housing Set
410995-3 (No
Longer Available)
414344-6 (No
Longer Available)
182406-5 (Set)
(Old 414975-1)
25
Housing Set
410996-1 (No
Longer Available)
414345-4 (No
Longer Available)
182406-5 (Set)
(Old 414976-9)
3
Gear Com.
153157-7 (No Longer Available)
153202-8
16
Spur Gear
221920-7 (No Longer Available)
221882-9
24
Shoe
343456-7
343875-7
7
Slider / Slider Com.
164774-8
154401-5 (Includes
Slider - 164964-3
,⊗
Felt - 443063-7,
Spring Pin 1.5-10 - 258017-9
⊗,
Blade Clamp - 313057-5,
Pin 2 - 256672-1
⊗)
9
Felt
443063-7
(Now part of Slider Com.)
10
Blade Set
344979-8 (334032-8)
(Now called Blade Clamp
and part of Slider Com.)
Serial # for 4390D
~ 508035E
508036E ~
578516E
578517E ~
599230E
599231E ~
Serial # for 4390DW
~ 18926E
18927E ~ 41412E
41713E ~
41915E
41916E ~
Type 1 to Type 4 parts are completely interchangeable as a set.
Type 3 Motor and Gear Com. can replace Type 2 Motor and Gear Com.
Type 4 Housing can replace Type 2 and Type 3 Housing.
3 Model 4390D
3 Model 4390DW
Service Notes

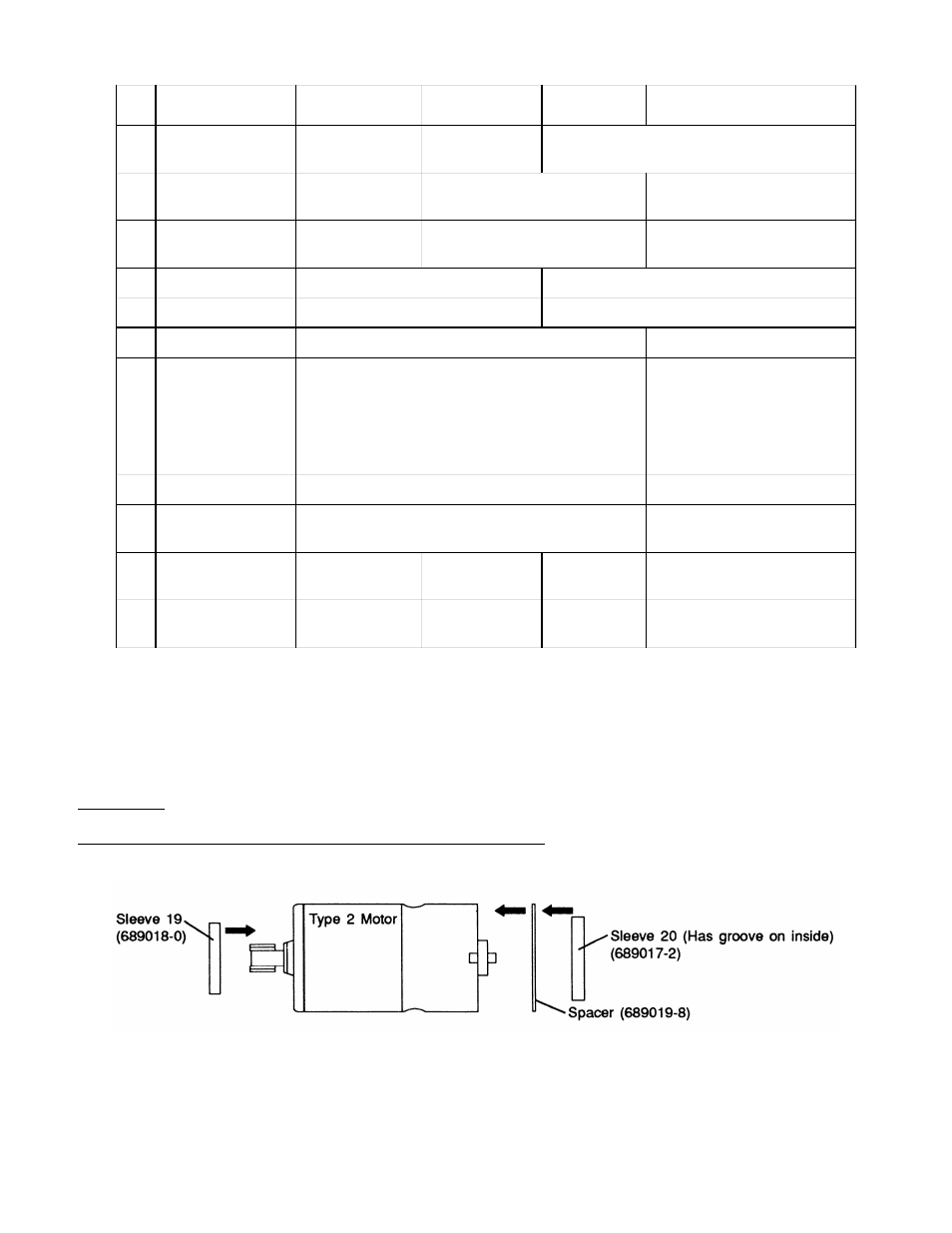

1. Type 2 Motor will fit into Type 1 Housing if the following parts are added.
