Installation Instructions Section 2
2-4
Connection to Ice Machine
GENERAL

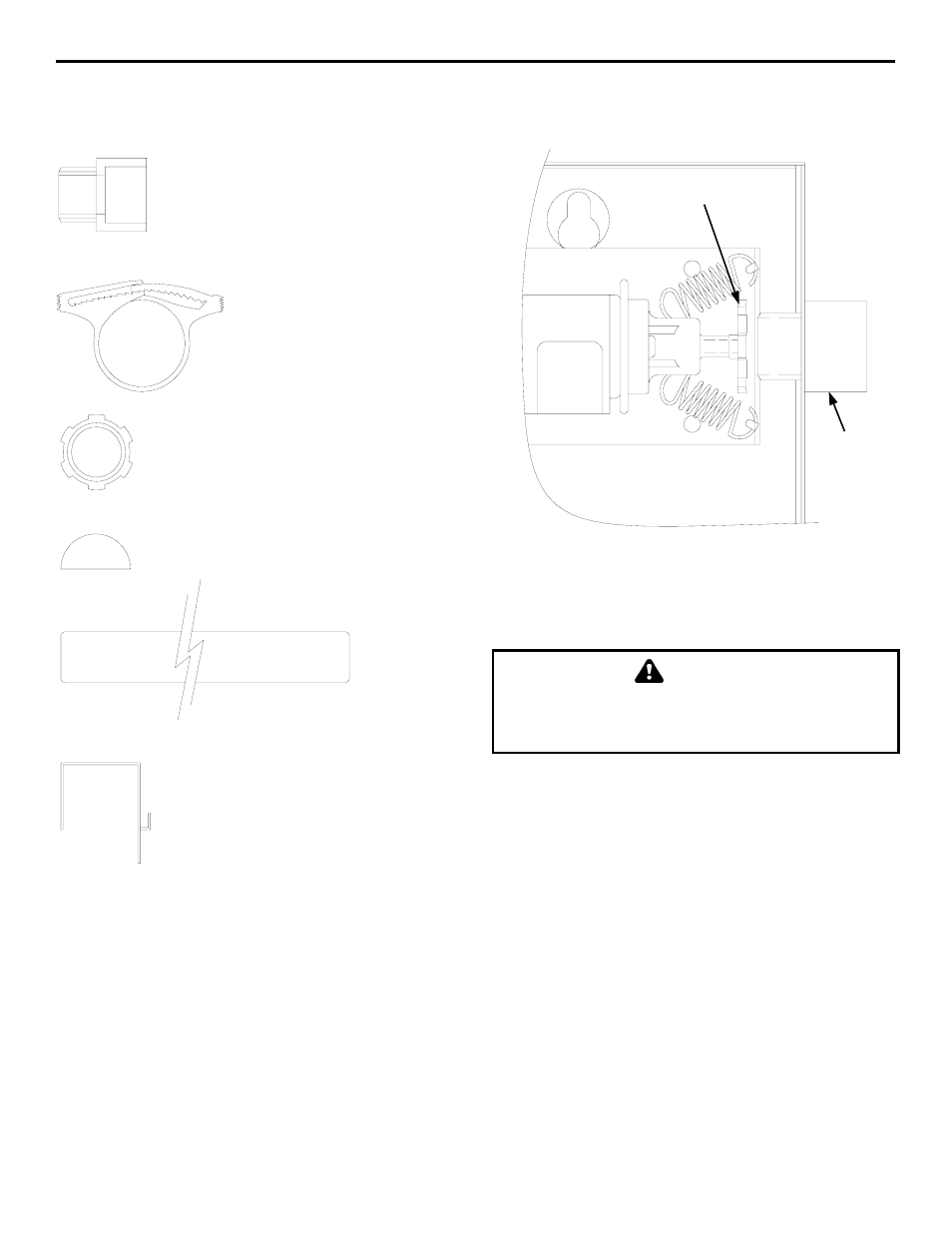

Parts Identification
PVC CONDUIT FITTING (A) INSTALLATION
½” PVC CONDUIT
FITTING
A
½” LOCKNUT (C)
½” PVC CONDUIT
FITTING (A)
B HOSE CLAMPS
LOCKNUT C
SV1636G
BUMPER D
PVC Conduit Fitting (A) Installation
1. Insert the PVC fitting (A) into the AuCS
®
A and
tighten with the lock nut (C).
WARNING
Disconnect the electric power supply to the ice
machine at the electrical disconnect before
proceeding.
FOAM TAPE E
2. If required for access, remove the front, top, and
right side panels from the ice machine.
BRACKET F
3. Remove the 7/8” access hole plug located on the
back of the corner post of the ice machine
4. Insert the PVC conduit fitting (Part A) and
tighten with the lock nut (Part C).
SV1635G
