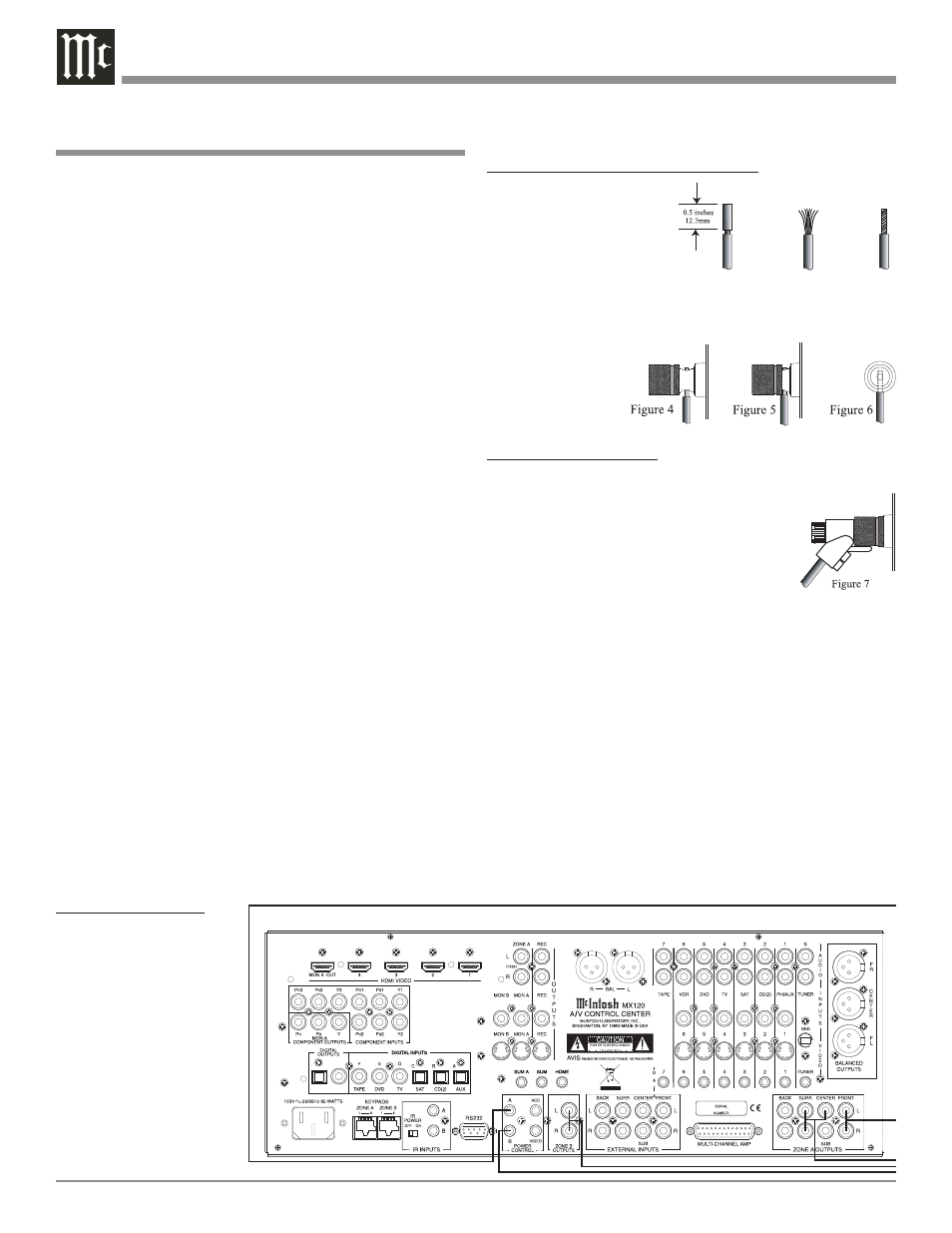

How to Connect for a Five Channel and Zone B
System
Spade lug or prepared wire connection:
Insert the spade lug
connector or prepared
section of the cable end
into the terminal side
access hole, and tighten
the terminal cap until the
cable is firmly clamped into the terminal so the wires can-
not slip out. Refer to figures 4, 5 & 6.
Banana plug connection:
Tighten the top portion of the terminal post and insert the
banana plug into the opening at the top of
the terminal. Refer to figure 7.
Note: The use of Banana Plugs is for use in
the United States and Canada only.
4. Connect the Loudspeaker Hookup
Cables from the MC205 OUTPUT Ter-
minals to the Loudspeakers, being careful to observe
the correct polarities and channel designation.
WARNING: Loudspeaker terminals are hazardous live
and present a risk of electric shock. For ad-
ditional instruction on making Loudspeaker
Connections contact your McIntosh Dealer
or McIntosh Technical Support.
5. Place the IMPEDANCE Switch to the position (4 ohm
or 8 ohm) that matches the impedance of the connected
Loudspeakers. In the event that some of the Loud-
speakers in the system are of different impedance, use
the impedance of the Left and Right Front Loudspeak-
ers to set the IMPEDANCE Switch position.
6. Connect the MC205 Power Cord to an active AC outlet.
Caution: The supplied AC Power Cord should not be con-
nected to the Rear Panel of the MC205 Power Am-
plifier until after the Loudspeaker Connections
have been made. Failure to observe this could
result in Electric Shock.
1. Connect Audio Cables from the Zone A Unbalanced
Outputs of a McIntosh A/V Control Center to the
MC205 INPUTS (Channels 1, 3 and 5), making sure
to match up the channel identifications between both
units. Connect Audio Cables from the Zone B Unbal-
anced Outputs of a McIntosh A/V Control Center to
the MC205 INPUTS (Channels 2 and 4), making sure
to match up the channel identifications between both
units.
Note: In place of the Unbalanced Audio Cables, Balanced
Cables may be used for the Zone A Connections.
2. Connect a power control cable from the McIntosh
A/V Control Center Zone A Power Control Out to the
McIntosh Two Channel Power Amplifier Power Control
Input Jack. Connect a second power control cable from
the McIntosh two Channel Power Amplifier Power
Control Output jack to the MC205 POWER CONTROL
ZA Jack. Connect power control cables from the McIn-
tosh A/V Control Center Zone B Power Control Output
jacks to the MC205 POWER CONTROL ZB jack.
When connecting Loudspeakers to the MC205 it is very
important to use cables of adequate size, so there is little to
no power loss in the cables. The size is specified in Gauge
Numbers or AWG (American Wire Gauge). The smaller
the Gauge number, the larger the wire size:
If your loudspeaker cables are 50 feet (38.1m) or less,
use at least 14 Gauge.
If your loudspeaker cables are 100 feet (76.2m) or less,
use at least 12 Gauge.
3. Prepare the Loudspeaker Hookup Cables that attach
to the MC205 Power Amplifier by choosing one of the
methods below:
Bare wire cable ends:
Carefully remove suffi-
cient insulation from the
cable ends, refer to figures
1, 2 & 3. If the cable is
stranded, carefully twist
the strands together as
tightly as possible.
Note: If desired, the twisted
ends can be tinned
with solder to keep the
strands together, or
attach spade lug and/
or banana connector.
Figure 1 Figure 2 Figure 3
