Milwaukee Impact Wrench User Manual
Page 3
page 3
1.
Drive shank
2.
Forward/reverse switch (Cat. No. 9072-20, 9092-20 and 9096-20)
3.
Trigger (Cat. No. 9072-20, 9092-20 and 9096-20)
Rocker switch (Cat. No. 9070-20, 9071-20, 9075-20)
4.
Speed control dial (Cat. No. 9072-20, 9092-20 and 9096-20)
5.
Quik-Lok
®
cord(Cat. No. 9072-20, 9092-20 and 9096-20)
6.
Quick change chuck (Cat. No. 9092-20 and 9096-20)
7.
Tool hanger (Cat. No. 9092-20 and 9096-20)
8.
Tool hanger ring (Cat. No. 9092-20 and 9096-20)
1
4
3
2
SPECIFIC SAFETY RULES - IMPACT WRENCH
1.
Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.
2.
Maintain labels and nameplates. These carry important information. If unreadable or missing, contact a
MILWAUKEE service facility for a free replace-
ment.
3.
WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer,
birth defects or other reproductive harm. Some examples of these chemicals are:
•
lead from lead-based paint
•
crystalline silica from bricks and cement and other masonry products, and
•
arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well
ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

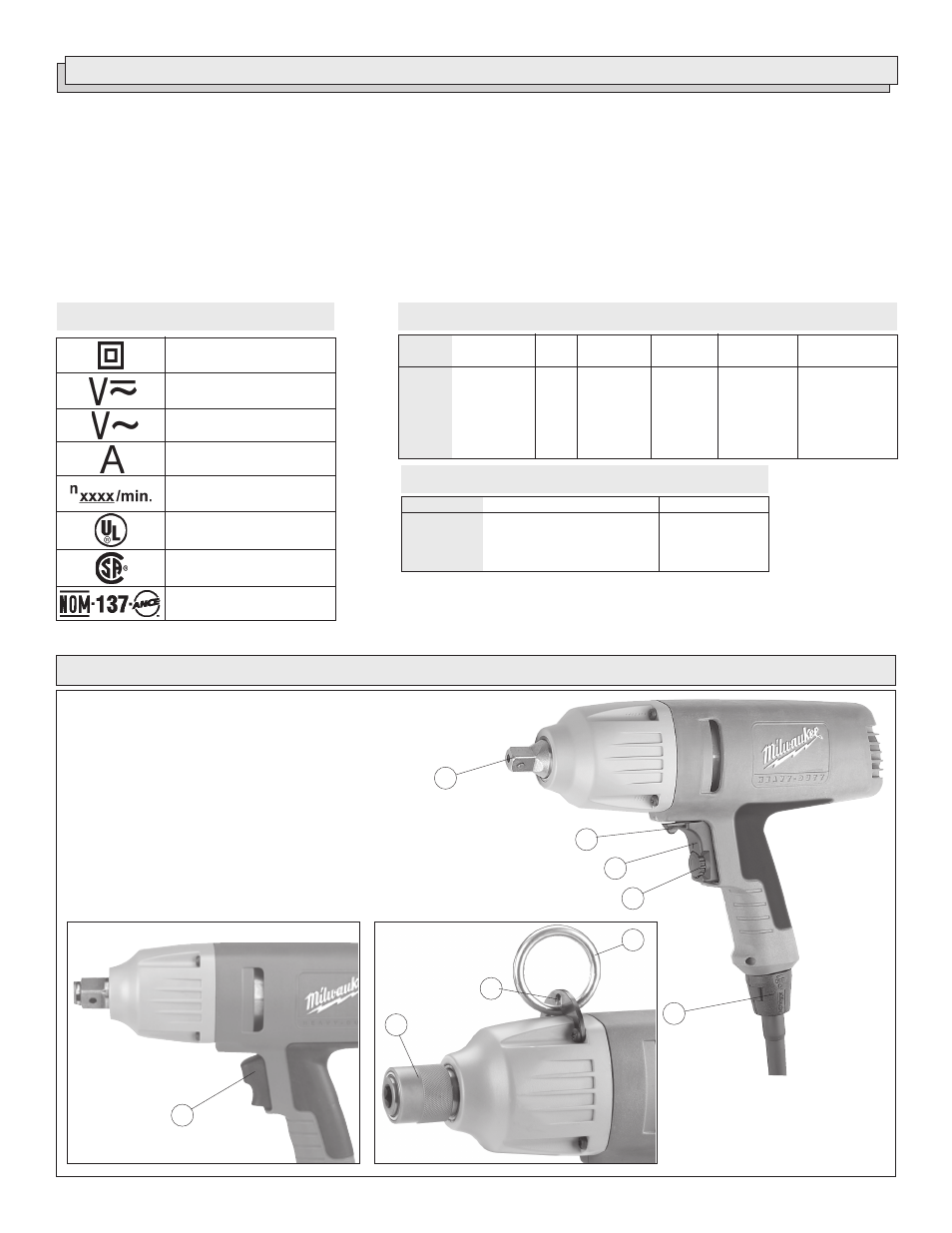

FUNCTIONAL DESCRIPTION
Cat. No. 9072-20
5
Double Insulated
Symbology
Volts Alternating Current/
Direct Current
Impacts per Minute
Under Load (IPM)
Amperes
Canadian
Standards Association
Underwriters
Laboratories, Inc.
Impacts Per
Minute
2600
2600
1000-2600
2500
1000-2600
1000-2600
Cat.
No.
9070-20
9071-20
9072-20
9075-20
9092-20
9096-20
Average
Torque Output
300 ft-lbs.
300 ft-lbs.
100-300
ft-lbs.
380 ft-lbs.
100-315
ft-lbs.
100-315
ft-lbs.
Volts
120 AC/DC
120 AC/DC
120 AC Only
120 AC/DC
120 AC Only
120 AC Only
Specifications
A
7
7
7
7
7
7
Drive
Shank
1/2"
1/2"
1/2"
3/4"
7/16" Hex
5/8" Hex
No Load
RPM
1800
1800
600-1800
1750
600-1800
600-1800
Volts Alternating Current
6
Cat. No. 9092-20
7
Cat. No.
9070-20
9072-20
9092-20
9096-20
Quick Change Auger Bits
1-1/2"
1-1/2"
1-1/2"
1-1/2"
Quick Change Chuck Capacities*
Selfeed Bits
2-9/16"
2-9/16"
2-9/16"
2-9/16"
* Only for use with the 7/16" or 5/8" Hex Quick Change chuck,
standard equiptment on the 9092-20 (7/16") and 9096-20 (5/8"),
optional accessory (Cat. No. 48-66-0061) on other models.
8
3
Cat. No. 9075-20
Mexican Approvals Marking
