750kW Containerized
Diesel Generator Set
Derating (60Hz)
The engine may be operated up to 5000 ft.
altitude and 95
o F ambient temperature at the
Standby rating, wi thout derating. For
operation at higher altitudes and ambient
temperatures, the power should be derated
according to the following factors:
Altitude
Ambient
Temperature
Above 5000ft.
derate at 4%
per 1000 ft.
Above 95°F
derate at 1%
per 10°F

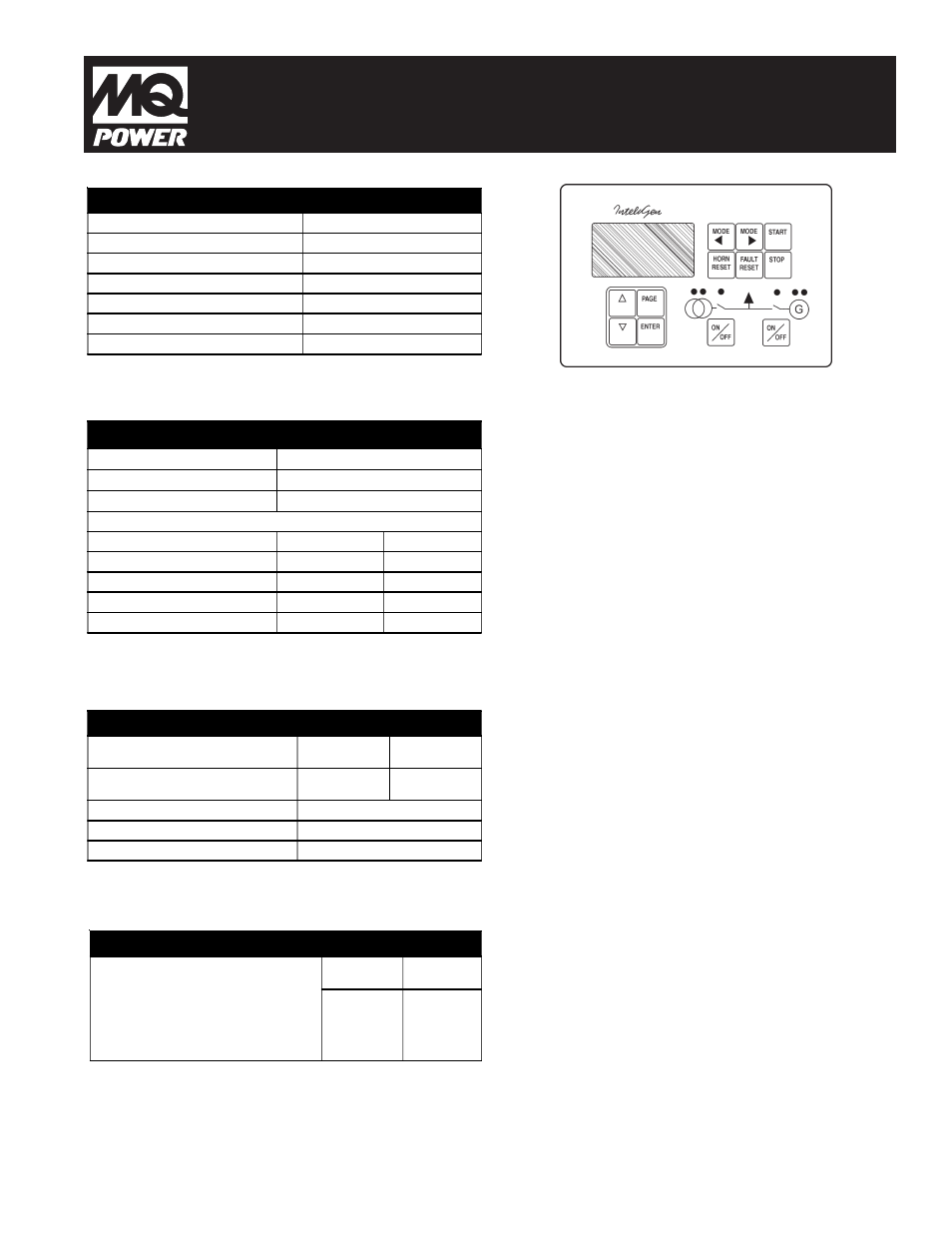

Inteligen Digital Genset Controller
■ Large graphic back-lit LCD display 128x64 pixel resolution
■ Automatic and manual starting and stopping
■ Phase sequence supervision
■ Automatic shutdown/alarm function
■ Input frequency 50-60 Hz
■ Parameters adjustable via PC or iG keyboard
■ Predefined and user definable configurations available.
One configuration includes set of inputs/outputs and parameters
■ Adjustable parameters for each configuration
■ 6 LED indicators
■ Push buttons for simple control
■ 4 programmable outputs (out of 20 functions selection)
■ 4 binary configuration inputs
■ Lamp test during start up
■ Real time clock
■ Sealed membrane panel to IP65
■ 180 x 113 mm front panel mounted case
■ Speed measurement from magnetic pickup
■ Oil pressure, Coolant temperature, Battery voltage and Fuel level
measurements
■ Running Hour Meter
■ All Generator metering, kVAr, kW, V1-V3, Hz, I1-I3, kWh, kVAh
■ Generator under/over voltage alarm/shutdown
■ Generator under/over frequency alarm/shutdown
■ Over Current alarm/shutdown
■ Warm up and cooling functions
■ Pre-lubrication function with timers
■ Adjustable crank attempts
■ Data logging
■ Remote communications (RS232/Modbus)
Digital Controller Features
Fuel System
Recommended Fuel ASTM-D975-No.1 or No. 2-D
Filter Micron Size - 98% Efficiency 2
Total Fuel Flow 99 gal./hr. (374.7 L/Hr.)
Fuel Consumption
Diesel Fuel @ % of Load gal/hr L/hr
25% 16.0 61
50% 26.2 99
75% 40.5 153
100% 54.7 207
Cooling System
Exhaust Manifold Type Dry
Radiator Design Standard horizontal discharge
Coolant Capacity - Engine and Radiator 53 gal. (201 L)
Water Pump Design/Type Belt Driven, Centrifugal
Coolant Flow 235 gal/min (889.5 L)
Heat Rejection to Coolant (Standby) 27860 BTU/min (29.5 kW)
Fan Horsepower 42.7 hp (32.0 kW)
Exhaust System Standby Prime
Exhaust Temperature at Rated kW
895 o F
(479.4 o C)
850 o F
(454.4 o C)
Exhaust Flow at Rated kW
6160 cfm
(174.3 m 3 /min)
5546 cfm
(157 m 3 /min)
Silencer Type Critical
Maximum Allowable Backpressure 41 in/wc (10.2 kPa)
Exhaust Outlet Size at hook-up 2 x 8 in.
