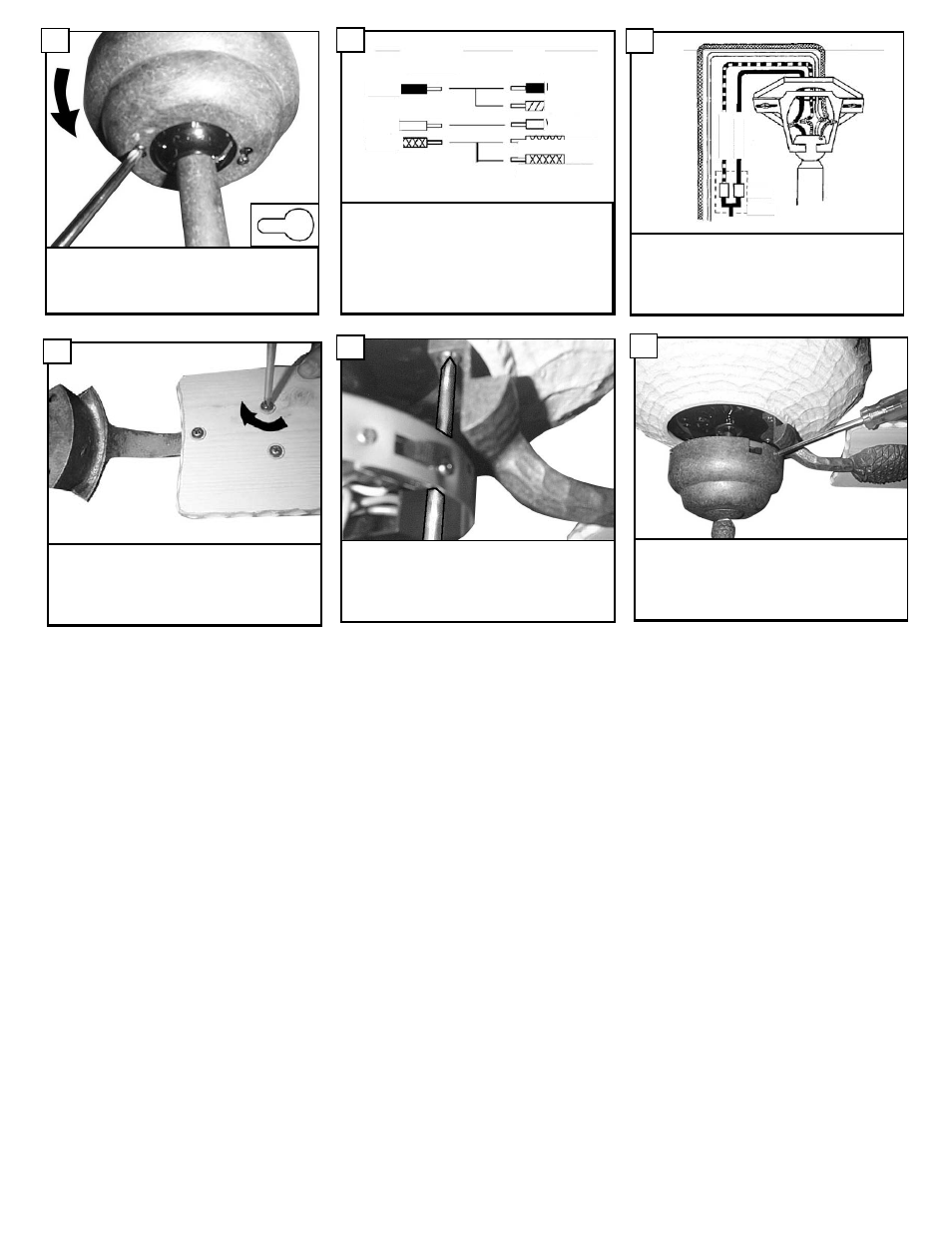

Attach blade brackets to blades using the blade
bracket screws and washers provided.
22
Check the motor for plastic shipping stabilizer
tabs, and remove them if they are present.
Attach blade assembly to motor using the
motor screws and washers provided. Tighten
screws securely.
23
After attaching blade; reinstall the switch hous-
ing using the three screws previously removed.
24
For pullchain controls, follow diagram above.
Make sure that all exposed wiring is secured
inside wire nuts. Note: Wires from house may
vary in color and may not include ground wire.
After wiring is complete, gently push wires into
junction box with wire nuts pointing upward.
Refer to point 3 of safety tips.
20
House Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
Blue
For control of fan and optional light from wall
location, follow diagram above. NOTE: A profes-
sional electrician is recommended for this type
of installation.
21
Li
gh
t
Sw
it
ch
Fa
n
Sw
it
ch
Wall
Control
19
Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
