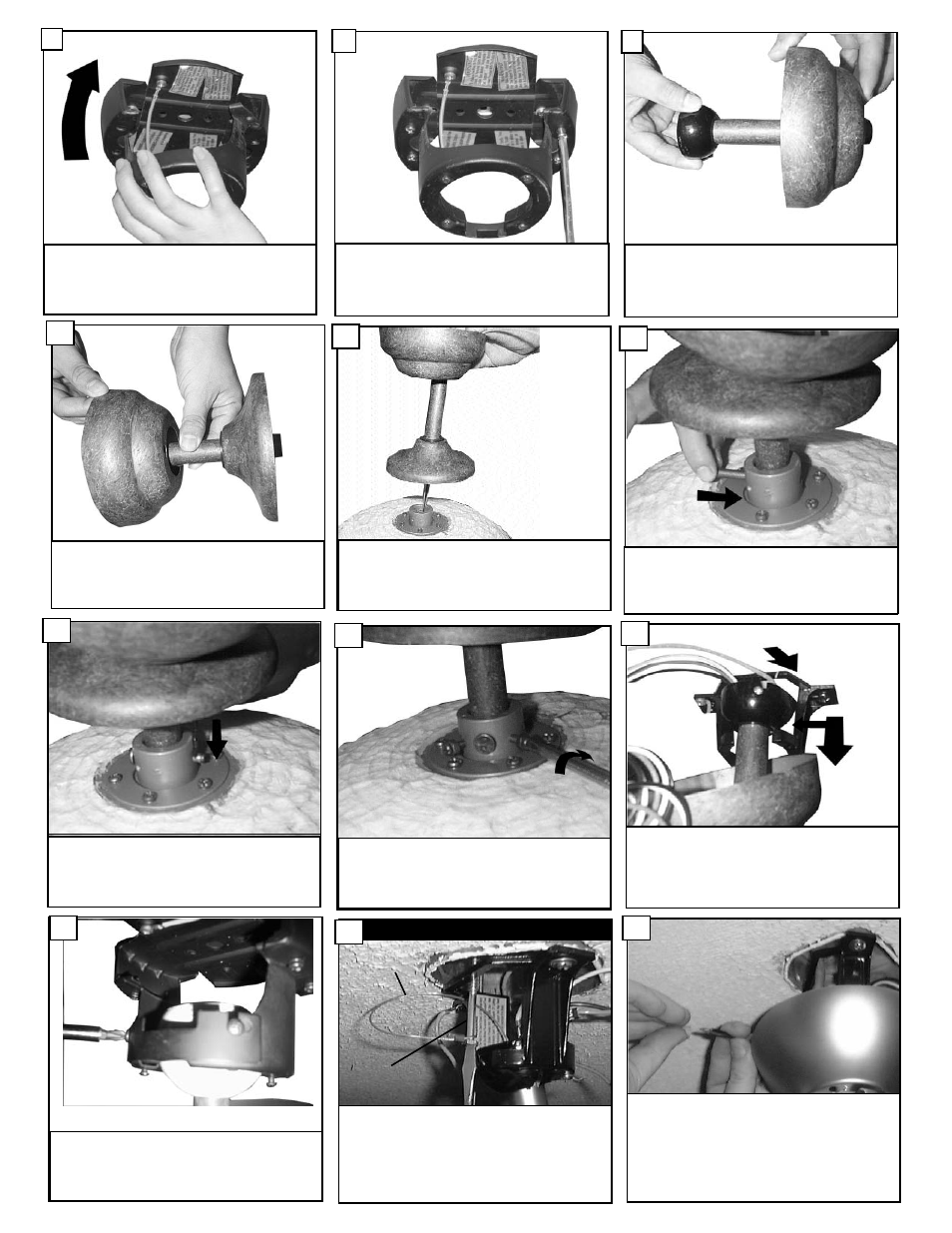

Tighten yoke set screws securely and evenly.
Loosen the 2 set screws in the yoke. Insert
downrod into yoke, aligning hole large hole in
the downrod with the large hole in the yoke.
Insert cross pin though yoke and downrod.
Insert cotter pin in to cross pin to secure.
Install yoke cover to downrod.
Install canopy to downrod.
9
10
15
12
13
Thread leadwire and safety cable through
downrod.
11
14
For Canadian installation and for USA fan and
light kit combinations over 35 lbs, in both flush
and downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws provided. Make sure that
when the safety cable is fully extended the
leadwires are longer than the cable and no
stress is placed on the leadwires.
17 Safety cable installation
Safety Cable
Lag Screw
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
18
Hang assembled fan from the mounting bracket
installed to ceiling in previous step. Make sure
the fan is hanging straight. Rotate fan until the
tab on the Mounting bracket engages the slot
on the Downrod Ball. This must be done to
prevent the fan body from rotating when the
blades are in motion.
Re-install safety bar removed in step. 3 by
placing safety bar on screws, sliding into place,
and tightening the 2 screws.
16
Lift mounting neck to mounting Plate and align
screws.
7
Secure mounting neck to the mounting plate
with four screws to become a complete mount-
ing bracket.
8
