Verify your configuration
Before you start installing your PCIe cards (refer to
Chapter 4 Install
Cards and Drives
for more information), you should confirm that
everything is in proper working order. Refer to
Chapter 3 Verify
Installation
for guidance in verifying the proper installation of your

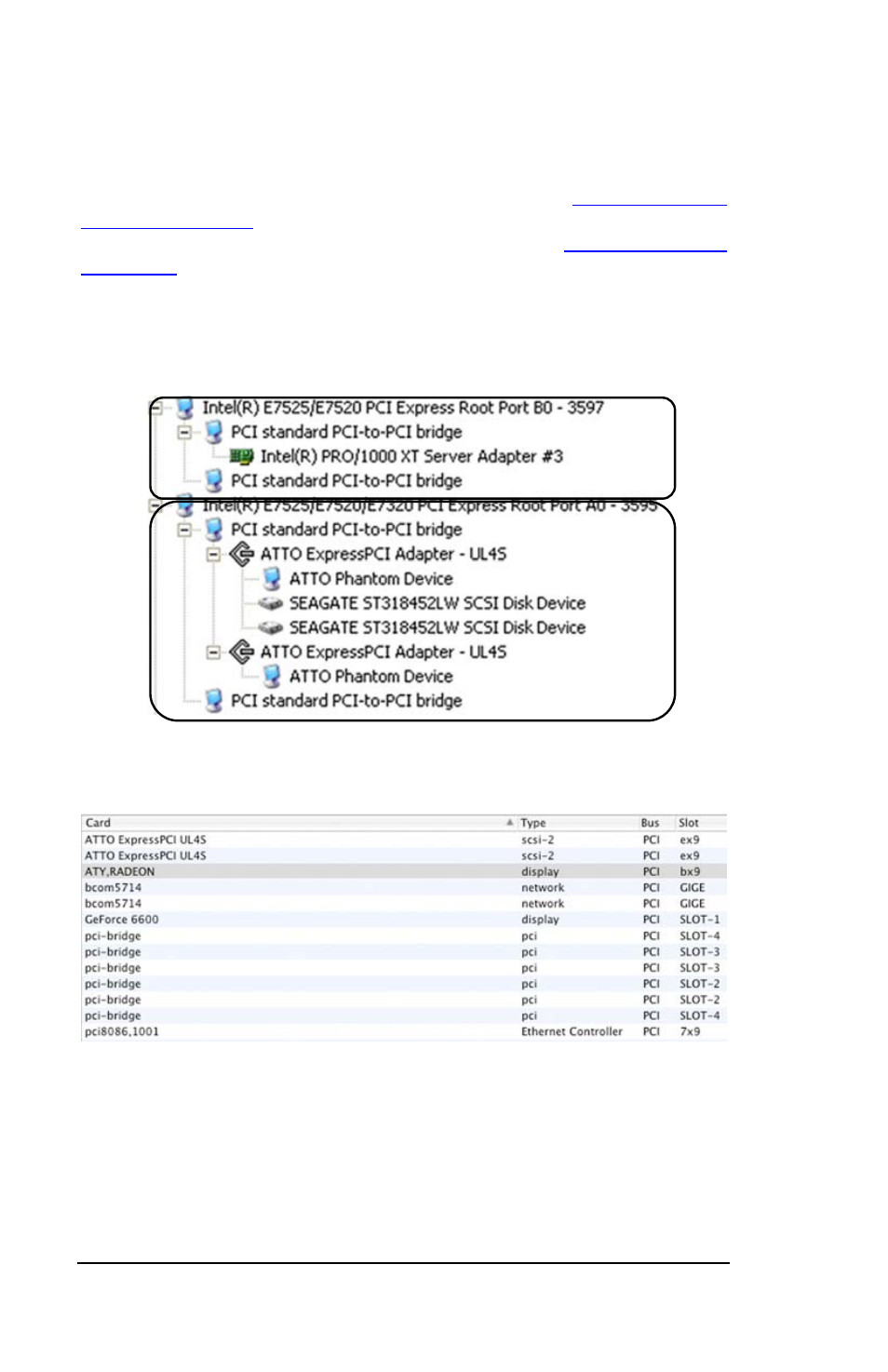

Expansion System. For example, the following image shows the
division within the Windows Device Manager display between two
Expansion Systems connected in a “Fan-Out” configuration. In this case
each expansion chassis offers only two slots of expansion.
The following image shows the Apple Profiler display when a MAC has
2 Expansion Systems connected in a “Fan-Out” configuration
