101
Appendix D: Configuring IPSec between a Windows 2000 or XP Computer and the Router
How to Establish a Secure IPSec Tunnel
Wireless-G VPN Broadband Router

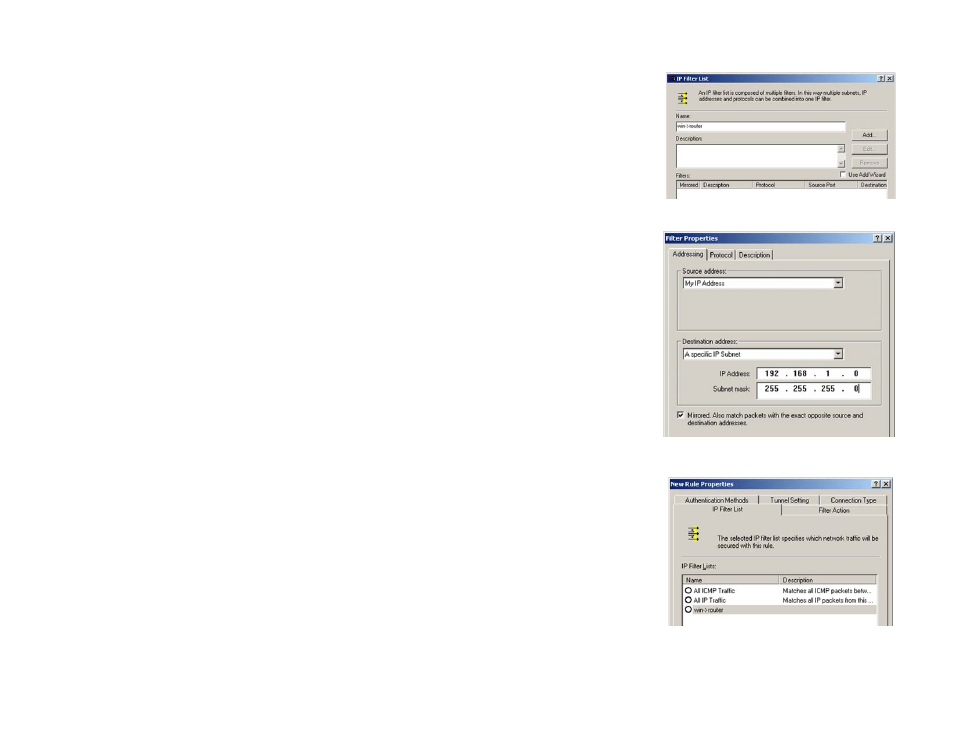

3. The IP Filter List screen should appear. Enter an appropriate name, such as win->Router, for the filter list, and
de-select the Use Add Wizard check box. Then, click the Add button.
4. The Filters Properties screen will appear. Select the Addressing tab. In the Source address field, select My IP
Address. In the Destination address field, select A specific IP Subnet, and fill in the IP Address: 192.168.1.0
and Subnet mask: 255.255.255.0. (These are the Router’s default settings. If you have changed these
settings, enter your new values.)
5. If you want to enter a description for your filter, click the Description tab and enter the description there.
6. Click the OK button. Then, click the OK or Close button on the IP Filter List window.
Figure D-4: IP Filter LIst
Figure D-5: Filters Properties
Figure D-6: New Rule Properties
