Middleby Marshall Ovens PS724E - Manual (Page 13)

SECTION 2
INSTALLATION
9

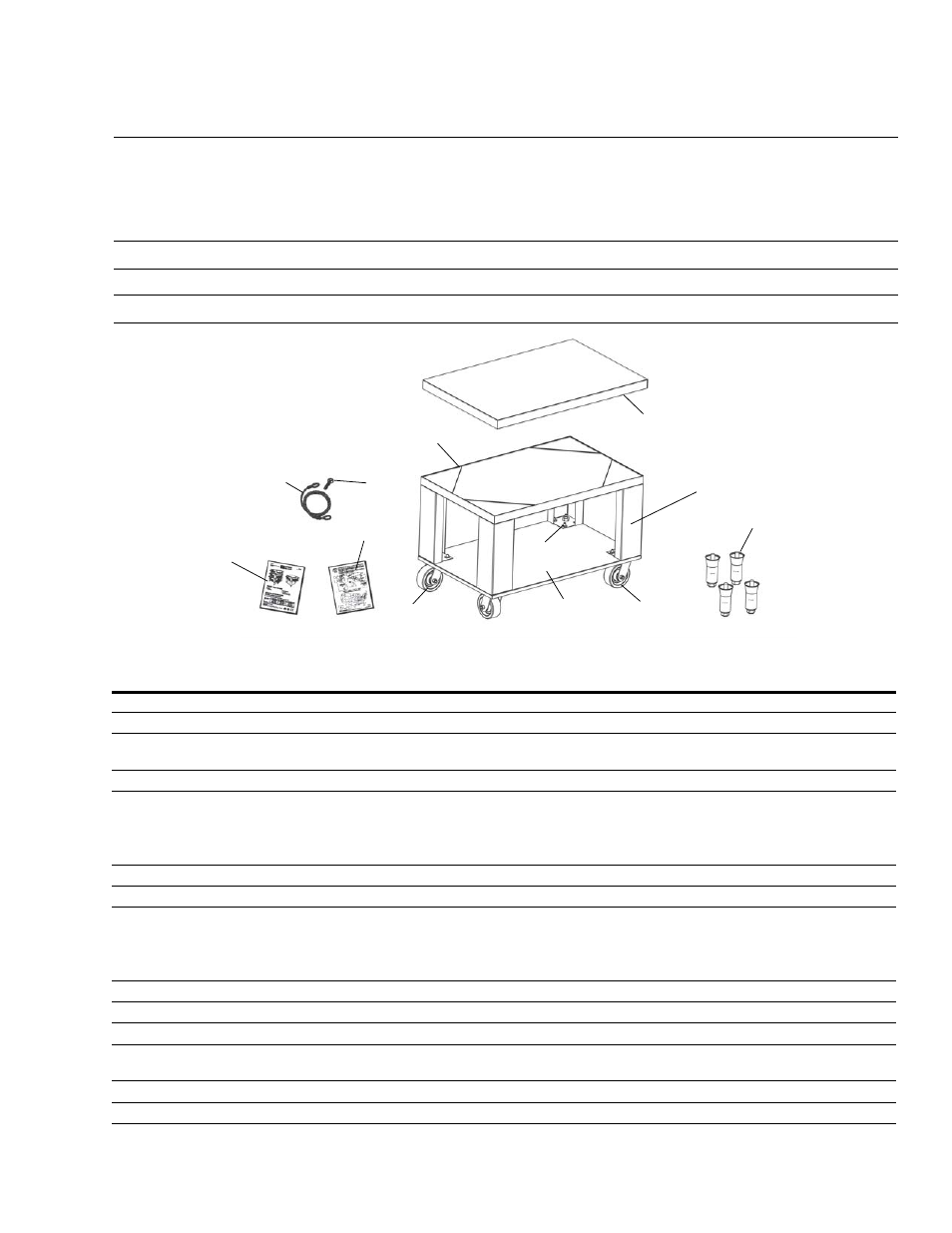

Figure 2-1. PS724-Series Electric Oven Installation Kit
03
2%15)2%$
490% 03 33 03 33 /&
3INGLE /VEN $OUBLE 4RIPLE /VEN&RXQWHU ).34!,,!4)/.
)NSTALLATION )NSTALLATION )NSTALLATION )NSTALLATION
+IT +IT +IT +IT
3INGLE /VEN
$OUBLE 1$
4RIPLE
7
2
3
4
6
12
13
14
1
11
Qty. Qty. Qty. Inc. with Inc. with
Single Double Triple domestic CE
Item Oven Oven Oven Part No. ovens? ovens? Description
1 1 1 1 61243 Yes Yes Base pad
2 2 2 2 59835 Yes Yes Top panel
3 4 4 -- 37900-0024 Yes Yes 15 ″ (381mm) leg extension,
for single and double ovens
4 2 2 2 22290-0009 Yes Yes Caster, with flat plate and brake
5 2 2 2 22290-0010 Yes Yes Caster, with flat plate (no brake)
NOTE: Domestic and standard export ovens include 2 braking casters (item 5) and 2 non-braking casters (Item 6).
CE-approved ovens include 4 non-braking casters (Item 6) SOLELY for the purpose of moving the oven to the installation
location. Casters are NOT suitable for use as part of CE oven installations. Refer to the notice on the preceding page.
6 4 4 4 22450-0028 No No Leg, adjustable, 6 ″ (152mm)
7 1 1 1 21392-0004 Yes Yes Eyebolt, 3/4 ″
8 A/R A/R A/R 220373 Yes Yes Hex bolt, 3/8 ″-16 x 1″
NOTE: CE-approved ovens include 32 hex bolts. Domestic and standard export ovens include 31 hex bolts and one eyebolt
(item 8) that acts as an anchor for the restraint cable (Item 12). CE ovens are mounted on legs (Item 7) and do not use a
restraint cable.
9 32 32 32 21416-0001 Yes Yes Flat washer, 3/8 ″
10 32 32 32 21422-0001 Yes Yes Lockwasher, 3/8 ″
11 1 1 1 22450-0228 Yes Yes Restraint cable assembly
12 1 1 1 61778 Yes Yes Owner's Operating and Installation
Manual
13 1 1 1 1002040 Yes Yes Authorized Service Agency Listing
14 1 1 -- 61226 Yes Yes Lower shelf
5
8, 9, 10
