LOG PLACEMENT

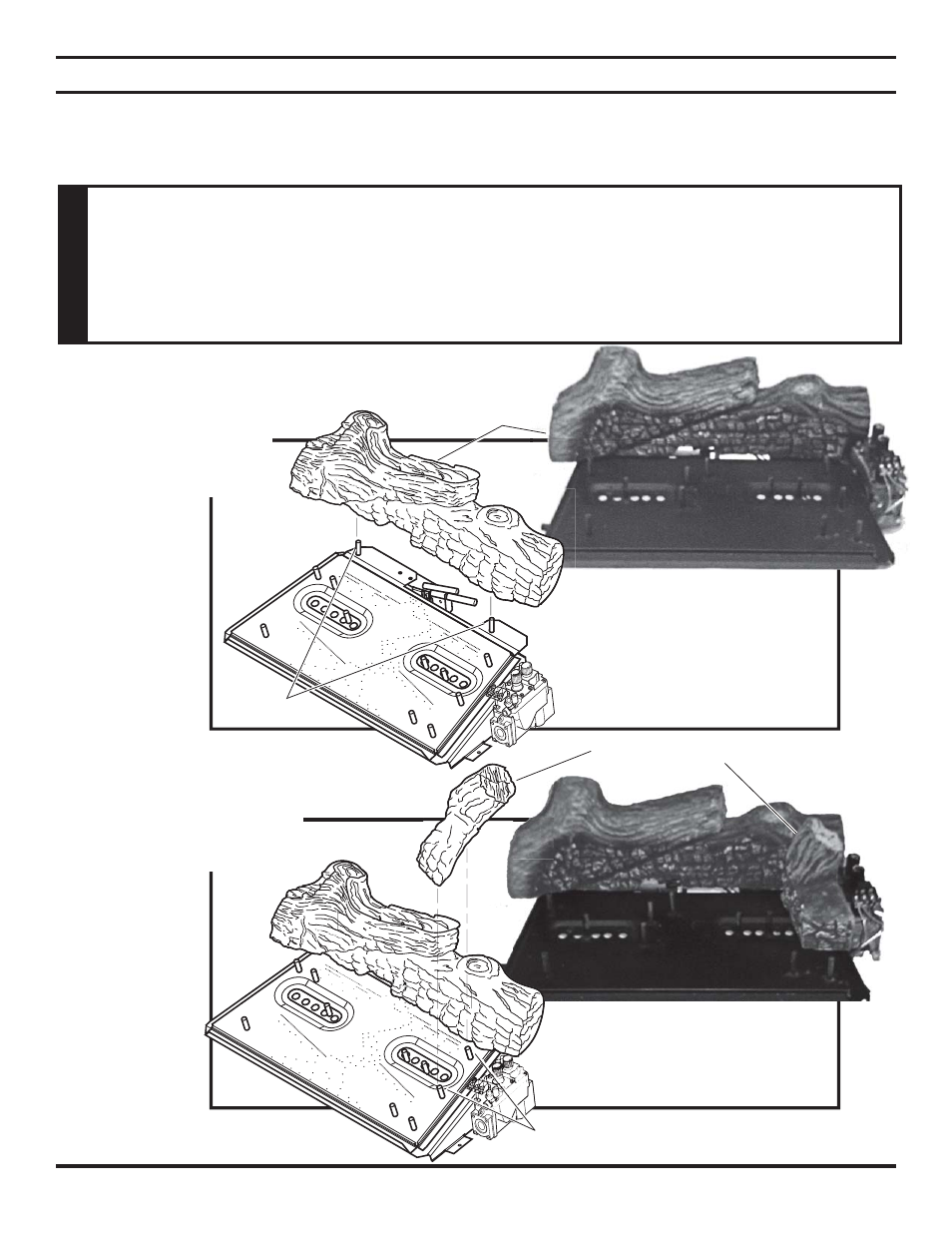

Figure 23 - Installing Rear Log (#1)
Before you begin
— This unit is supplied with six (6) ceramic fiber logs. Do not handle these logs with your bare hands.
Always wear gloves to prevent skin irritation from ceramic fibers. After handling the logs, wash your hands gently with
soap and water to remove any traces of fibers.
INSTALLING CHARRED TIMBER LOGS ON
BURNER
W
ARNING
The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and
other problems may result if the logs are not properly and fi rmly positioned in the appliance.
Never add additional logs or embellishments such as pine cones, vermiculite or rock wool to
the heater. Only use the logs and TPB-RW (rock wool) supplied with the unit.
Failure to position the parts in accordance with diagrams below or to use only parts specifi cally
approved for this heater may result in property damage or personal injury.
Figure 24 - Installing Right Base
Log (#2)
Pins
Rear Log (#1)
1. Place rear log (#1) on two
pins located on the back of
the grate. See Figure 23.
2. Place right base log (#2) on two
pins on right side of grate. See
Figure 24.
Pins
Right Base Log (#2)
