M1 ViNL manual issue 2.doc2 Page 7 of 12

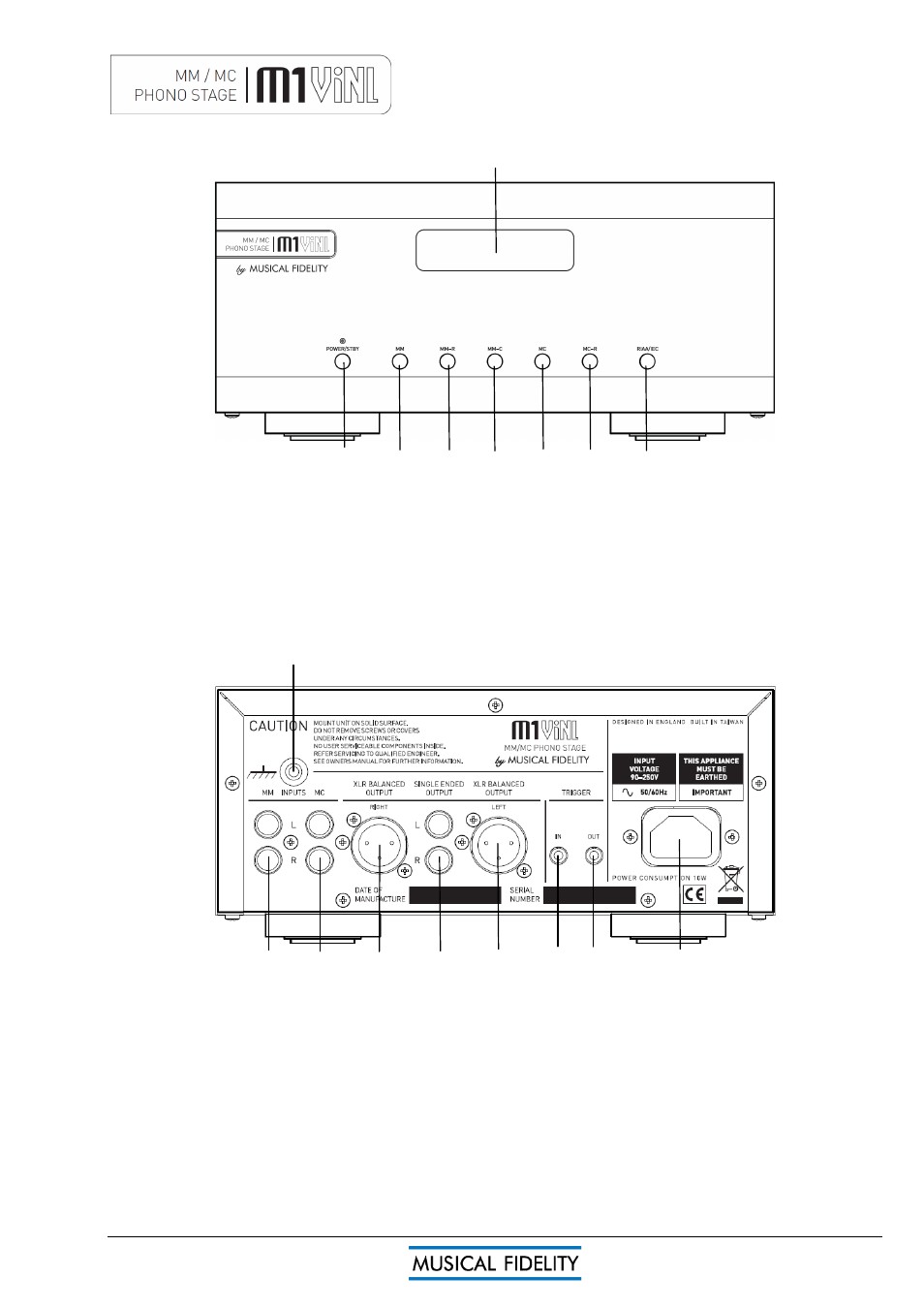

1
2 3 4 5 6 7 8
1 DISPLAY LCD backlit black and white
2 POWER ON/STANDBY button
3 MM moving magnet selector button
4 MM-R MM load resistor selector button
5 MM-C MM load capacitor selector button
6 MC moving coil selector button
7 MC-R MC load resistor selector button
8 RIAA/IEC response selector button
9
10 11 12 13 14 15 16 17
9 EARTH 4mm banana post
10 MOVING MAGNET input left and right RCA
11 MOVING COIL input left and right RCA
12 XLR BALANCED OUTPUT right
13 SINGLE ENDED OUTPUT left and right RCA
14 XLR BALANCED OUTPUT left
15 TRIGGER IN 3.5mm jack input
16 TRIGGER OUT 3.5mm jack output
17 MAINS INPUT IEC socket
FACILITIES & CONNECTIONS
