M1 ViNL manual issue 2.doc2 Page 11 of 12
SPECIFICATIONS
MM input
Frequency response RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity 3mV in for 300mV out (at 1 kHz)
Input impedance 47KΩ or 68KΩ selectable
Input capacitance 50-400pF selectable
THD at 1 kHz <0.01%
Overload margin 31dB
Signal to noise ratio >90dB “A”-wtd.
MC input
Frequency response RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity 500µV in for 300mV out (at 1 kHz)
Input impedance 10Ω to 47KΩ selectable
Input capacitance 470pF fixed
THD at 1 kHz <0.01%
Overload margin 31dB
Signal to noise ratio >88dB “A”-wtd.

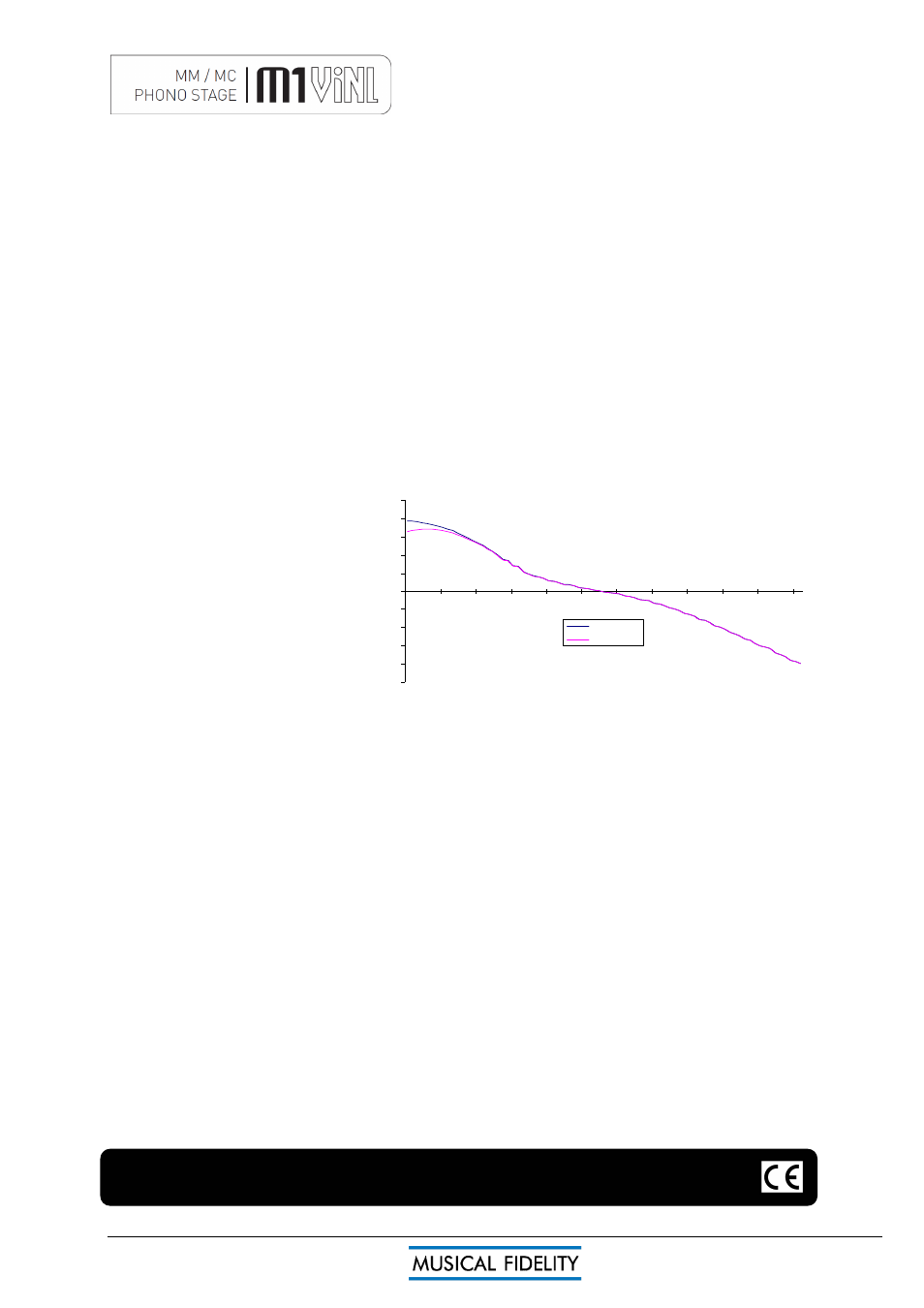

Phono MM and MC
frequency response
-25.00
-20.00
-15.00
-10.00
-5.00
0.00
5.00
10.00
15.00
20.00
25.00
20 44 100 240 480 800 1300 2400 4000 6800 12000 20000
Frequency,
Hz
dB
r
el
. 1k
H
z
RIAA
RIAA/IEC
Line level outputs
1 pair RCA (phono) left and right 300mV nom 10V max
1 pair XLR (balanced) left and right 600mV nom 20V max
Trigger control
Input 3.5mm (⅛”) mono jack ±4.5 to ±15V DC
Output 3.5mm (⅛”) mono jack +12V DC
Power requirement
Mains voltages 80-250V AC 50/60Hz universal power supply
Consumption 10 Watts maximum
<0.5W in standby (orange LED on)
Weight
Unit only, unboxed 3.5 kg (7¾ lbs)
In shipping carton 4.0 kg (8⅞ lbs) including accessories
Dimensions
220 mm (8⅔”) Wide
100 mm (4”) High, including feet
300 mm (12”) Deep (front to back) including terminals
Standard accessories
IEC moulded mains lead 10-Amp type
Musical Fidelity reserves the right to make improvements which may result in
specification or feature changes without notice. E&OE.
