Page 13

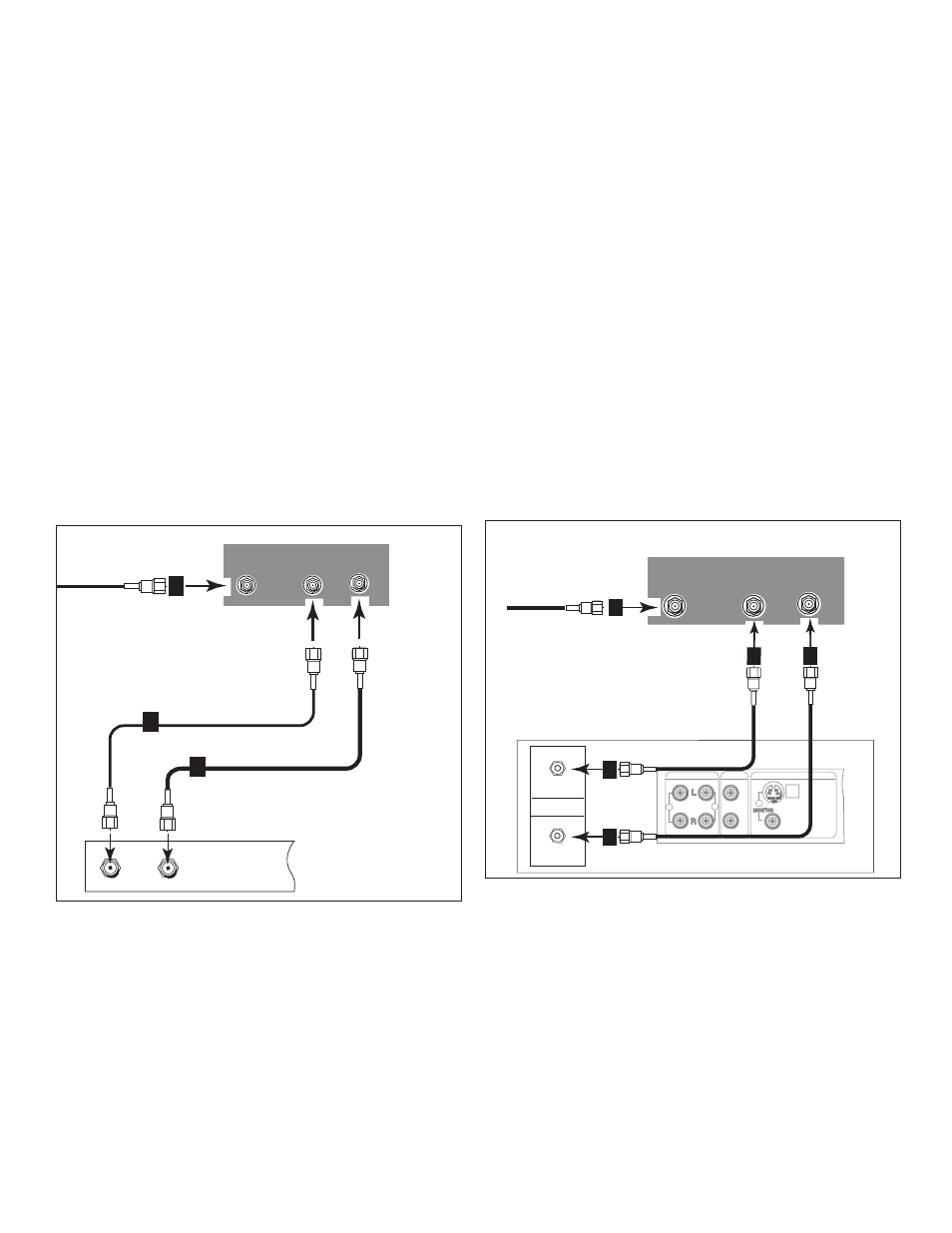

Figure 3. Connecting the cable box.

��

�

��

� � ��

��

�

��

� � ��

��

�

��

�

Figure 4. Connecting the VCR with antenna or wall

outlet cable.

Connecting an Antenna to a Cable Box or VCR

Antenna to a Cable Box

(Figure 3)

1. Connect the incoming cable to ANT-A on the TV

back panel.

Connect two coaxial cables as follows:

2. One from LOOP-OUT on the TV back panel to IN on

the cable box back panel.

3. One from OUT on the cable box back panel to ANT-

B on the TV back panel.

Note: If your cable box has separate audio/video

outputs, connect the audio as shown in

Figure 6, page 14.

Antenna to a VCR

(Figure 4)

1. Connect the incoming cable to ANT-A on the TV

back panel.

Connect two coaxial cables as follows:
2. One from LOOP-OUT on the TV back panel to

ANTENNA IN on the VCR back panel.

3. One from VCR back panel ANTENNA OUT to ANT-

B on the TV back panel.

Note: If your VCR has separate audio/video

outputs, connect the audio as shown in

Figure 6, page 14.

Note: When the Energy Mode is set to Low, the

VCR may not record programs when the TV

is off.

Note: For digital cable boxes, refer to your Digital

Cable Box owner’s guide for instructions on

optimal connections to this TV.
