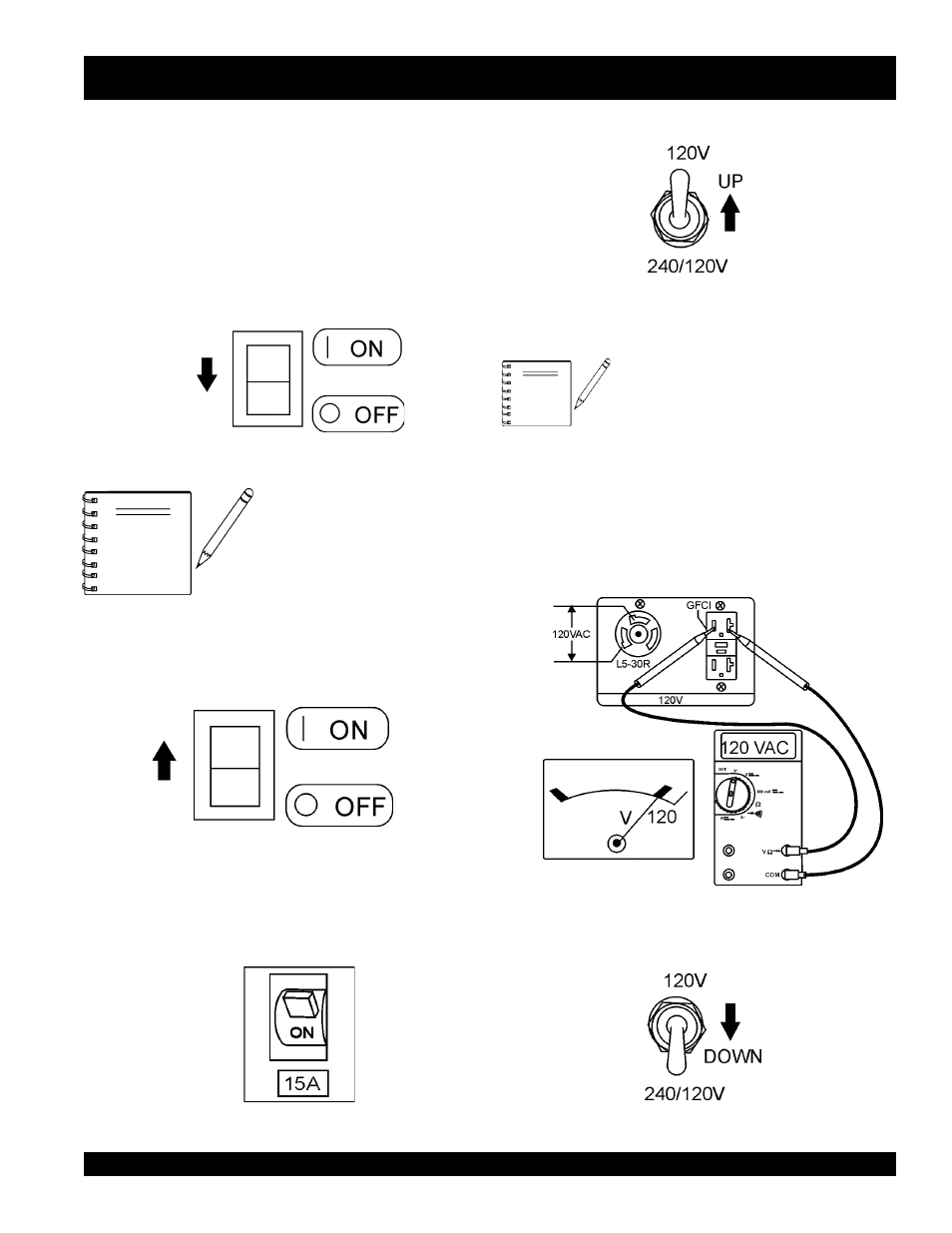

GDP-5H A.C. GENERATOR — PARTS & OPERATION MANUAL — REV. #2 (10/05/05) — PAGE 27

6. If the engine has started, slowly return the choke lever

(Figure 13 ) to the

“OPEN”

position. If the engine has not

started repeat steps 1 through 5.

7. Before the generator is placed into operation, run the engine

for 3-5 minutes. Check for abnormal smells, fuel leaks, and
noises that would associate with lose components.

8.

Place the idle control switch (Figure 16) in the "OFF"
(down) position. This will allow the engine speed to run
at speed about 3600 RPM's

3. Read the

voltmeter on the front panel of the generator

(Figure 20) and verify that 120 VAC is present at the
120V twist-lock and GFCI duplex receptacles. For
additional verification of voltage, an external voltmeter
can be used to measure the output voltage as shown in
Figure 20.

Figure 20. 120 V and GFCI Receptacles

NOTE

Placing the

idle control switch

in

the OFF position (Figure 16) allows
the engine to operate at a maximum
speed of about 3600 RPM's. When
the idle control switch is placed in
the up position (ON) (Figure 17),

the generator will run at idle speed (2200 RPM's) until a load is
applied, at that time the engine speed will increase to 3600
RPM's as long as the load is being applied. When the load is not
in use, the engine speed will drop back to the idle mode after
about 3 seconds.

GDP-5H — INITIAL START-UP/GENERATOR OPERATION

Figure 16. Idle Control Switch (Off)

Figure 17. Idle Control Switch (On)

Figure 18. 60 Hz Circuit Breaker (ON)

60 Hz Operation

1. Place the 60 Hz, 15 amp circuit breaker (Figure 18) in

the ON position.

2. Place the full power switch (Figure 19) in the 120V

position (up).

When the

full power switch is in the 120 V

position, the 240V twist-lock receptacle

cannot be used.

NOTE

4. Place the full power switch (Figure 21) in the 240V

position (down).

Figure 19. Full Power Switch 120 V Position (Up)

Figure 21. Full Power Switch 240/120 V Position (Down)
