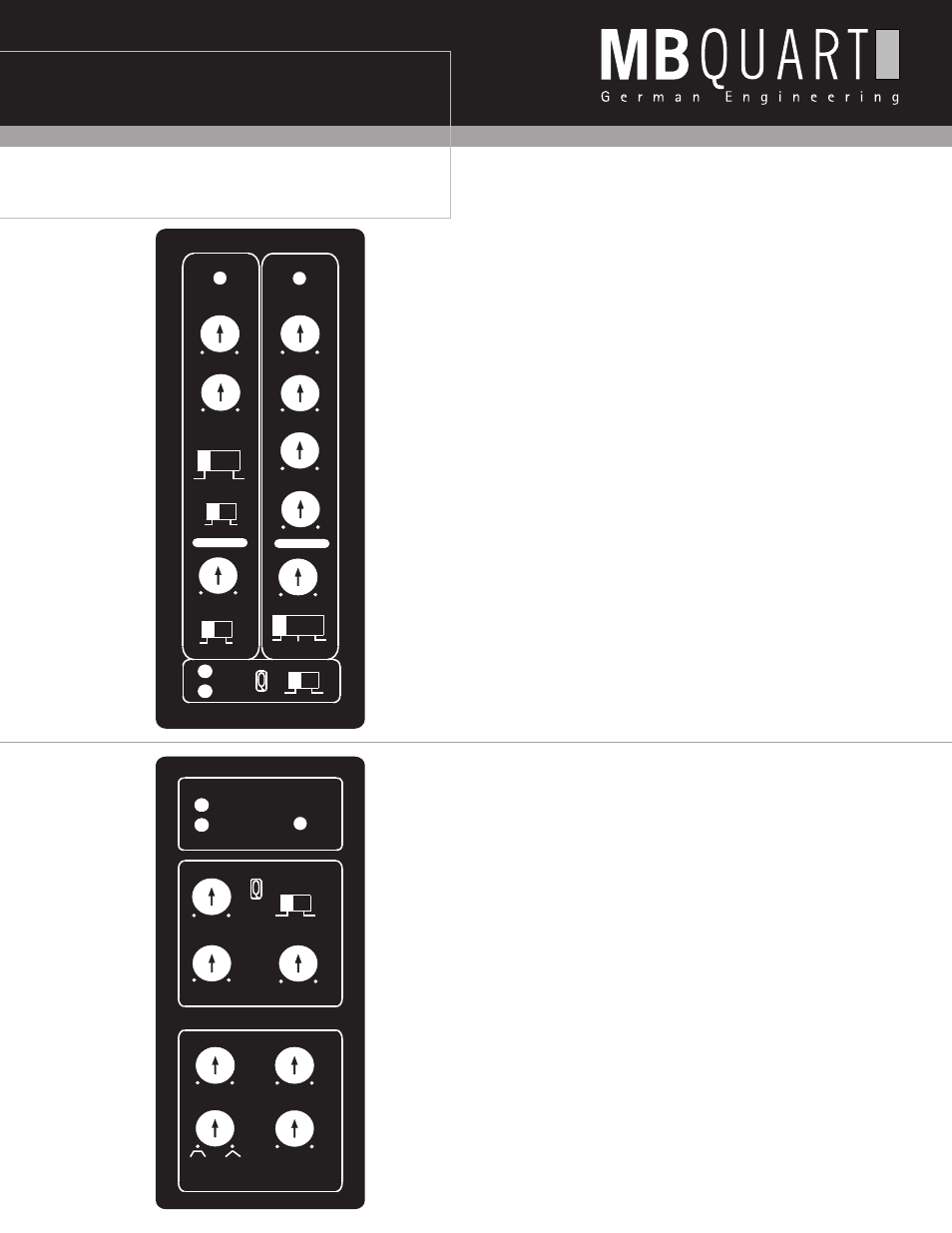

Features
Q4.80 / Q4.150 / Q1.1500D
Q4.80
Q4.150
Q1.1500D
3
- CLIP INDICATOR:
- GREEN = Pre-Clip
- AMBER = Soft Clip
- RED = Hard Clip
- LEVEL: Variable sensitivity from 0.2V to 9V
- BASS BOOST: Variable bass boost from 0dB to 12dB
- BASS FREQUENCY: Frequency to be boosted, variable from 30Hz to 80Hz
- HIGH PASS:
- CH3&4:
- MULTIPLIER FREQUENCY: Available for CH1&2 only and variable selector
for x15 or x1 the selected HIGH PASS value
- FILTER SLOPE: Roll off for HIGH PASS on CH1&2, selectable at 6dB or 12dB
- CROSSOVER:
- CH3&4:
- LP-BP MONO: Selected when bridging CH3&4 on subwoofers
- LP-BP STEREO: Selected when running CH3&4 in stereo on subwoofers
- HP-FULL: Selected when running CH3&4 in stereo for full range speakers
- CH1&2:
- DUPE (3&4): Bypasses all variables on CH1&2 and duplicates settings from CH3&4
- HP-FULL:
Variable HIGH PASS filter from 15Hz to 1KHz
- CH1&2: Variable HIGH PASS filter from 20Hz to 300Hz
Selected when running CH3&4 in stereo for full range speakers
- PROTECT: Red LED which indicates PROTECTION
- POWER: Green LED which indicates the amplifier is “ON”
- INPUT MODE:
- 4CH: Selected when two sets of RCA’s are being connected to CH1&2 and CH3&4
- 2CH: Selected when only one set of RCA’s are being connected to CH1&2. The amp
will automatically provide signal to CH3&4 but there will be no FADE from front to
rear on your headunit controls.
- CLIP INDICATOR:
- GREEN = Pre-Clip
- AMBER = Soft Clip
- RED = Hard Clip
- LEVEL: Variable sensitivity from 0.2V to 9V
- Q-LINK: Allows linking of two Q1.1500D amplifiers to produce 3KW rms @ 2-Ohms
- INPUT SLAVE: Selected when amplifier is being linked as SLAVE and receiving
signal from the MASTER amplifier. When in INPUT SLAVE position all other
adjustments are bypassed
- OUTPUT MASTER: Selected when amplifier is being linked as MASTER and
providing signal to the SLAVE amplifier. This amplifiers’ adjustments now
control both amps
- PHASE SHIFT: Adjustable time alignment from 0 to 180 degrees
- SUBSONIC: Variable from 15Hz to 35Hz
- LOW PASS: Variable from 35Hz to 200Hz
- BASS BOOST: Variable bass boost from 0dB to 12dB
- BASS FREQUENCY: Frequency to be boosted, variable from 30Hz to 80Hz
- BANDWIDTH: Range of frequencies to be boosted
- Variable from WIDE to NARROW. WIDE includes less frequencies to be boosted
while NARROW includes more frequencies to be boosted above and below the
selected frequency
- PROTECT: Red LED which indicates PROTECTION
- POWER: Green LED which indicates the amplifier is “ON”
