8

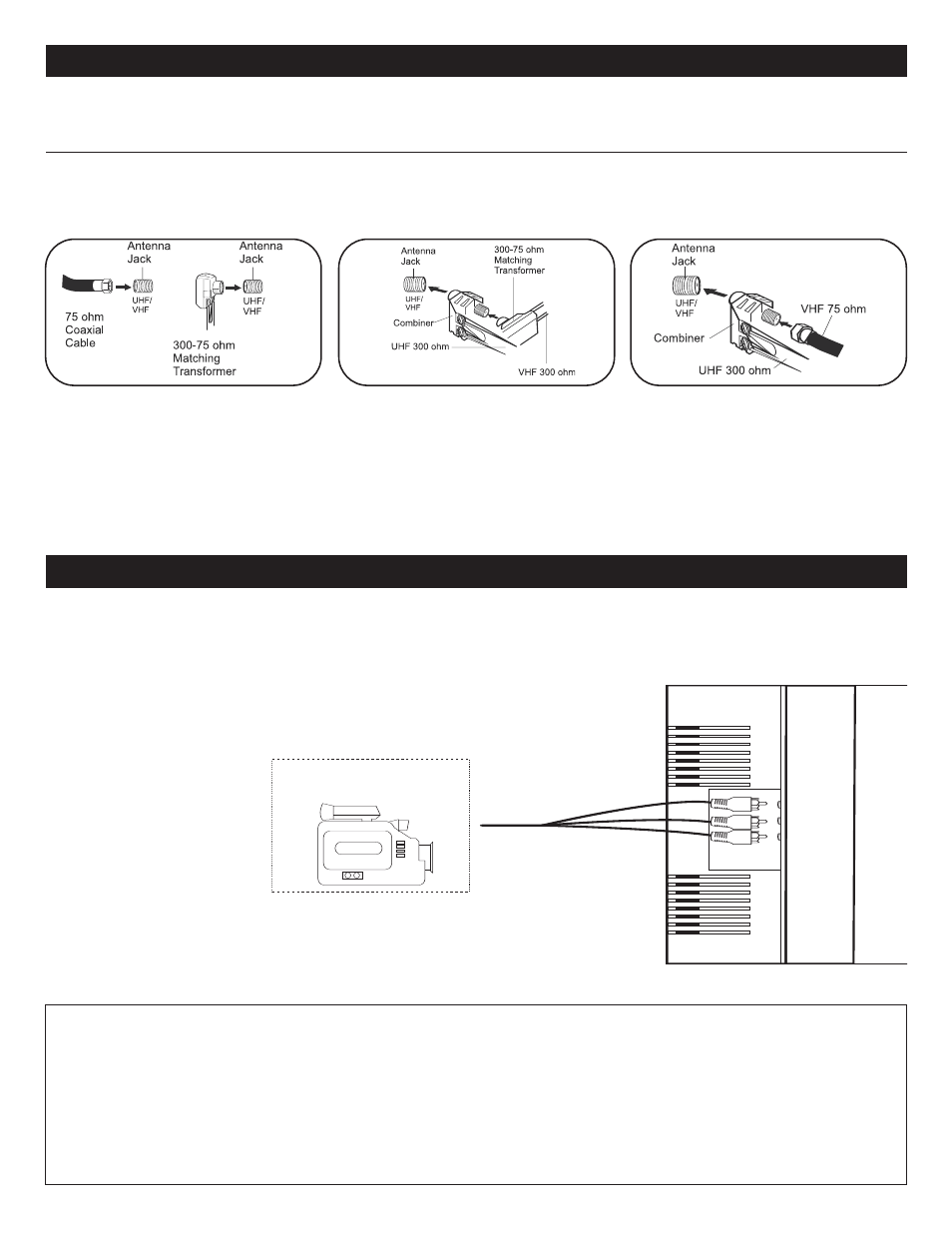

ANTENNA CONNECTIONS
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see the next page.
Combination VHF/UHF
Antenna (Single 75 ohm cable
or 300 ohm twin-lead wire)
Separate VHF/UHF Antennas
Combination VHF/UHF
Antenna (Separate VHF and
UHF 300 ohm twin-leads)
Connect the UHF twin-lead wire to a
combiner (NOT SUPPLIED). Connect
the VHF twin-lead to a 300-75 ohm
matching transformer (NOT SUPPLIED).
Attach the transformer to the combiner.
Attach the combiner to the antenna jack.
Connect the 75 ohm cable from the VHF
antenna and the UHF antenna twin-lead
wire to a combiner (NOT SUPPLIED).
Attach the combiner to the antenna jack.
NOTE: If your VHF antenna has a twin-
lead wire, use a 300-75 ohm matching
transformer, then connect the
transformer to the combiner.
Connect the 75 ohm cable from
combination VHF/UHF antenna to the
antenna jack.
OR
If your combination antenna has a 300
ohm twin-lead wire, use a 300-75 ohm
matching transformer (NOT SUPPLIED).
CONNECTION USING THE SIDE AUDIO/VIDEO IN JACKS
The optimal use for the side A/V jacks are to connect an A/V component that is used only occasionally, such as a
camcorder or video game. Connect the Audio/Video output jacks of the external unit to the Audio 1 Input jacks and the
Video 1 Input jack.
To access the unit connected to
these jacks, press the TV/AV
button repeatedly until VIDEO 1
appears on the screen. To
resume normal TV viewing,
simply press the TV/AV button
repeatedly until the TV channel
appears in the display.
AUDIO/VIDEO Cord
(Not Supplied)
EXTERNAL SOURCE
(i.e. camcorder, video game)
FAQs:
My external unit has only 1 audio jack, but this unit has two Audio Input jacks, how do I connect it?
Simply connect it to the “L (Mono)” Audio Input jack, but the sound will be monaural.
How do I watch the external unit connected to the Audio/Video Input jacks?
Press the TV/AV button repeatedly until VIDEO 1 appears on the screen, then start the external source.
Are the cables included?
No, the cables are sold separately, visit your local electronics store.
