9
B
ASE
M
ODEL
C
HARACTERISTICS
IS1650
S
CANNER
Dimensions

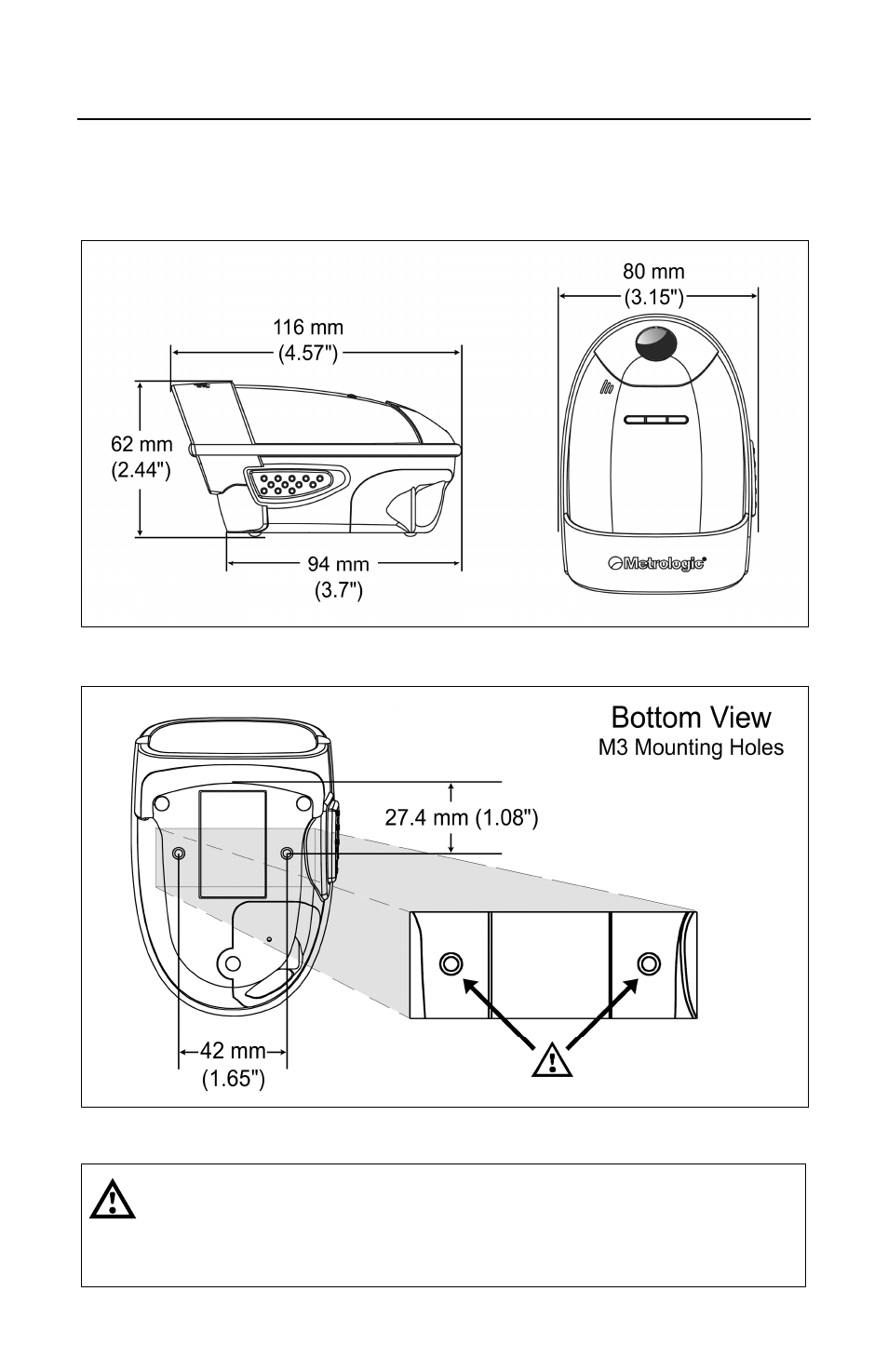

Figure 2. Scanner Dimensions
Figure 3. M3 Mounting Hole Dimensions
Caution:
The depth of each mounting hole is 12 mm (0.5
"
). For fixed mount, the mounting
screws should not be over-tightened or go deeper than 10 mm (0.4
"
) passing the
bottom surface of the unit. Going further may cause serious damage to the unit
and void the manufacturer warranty.
