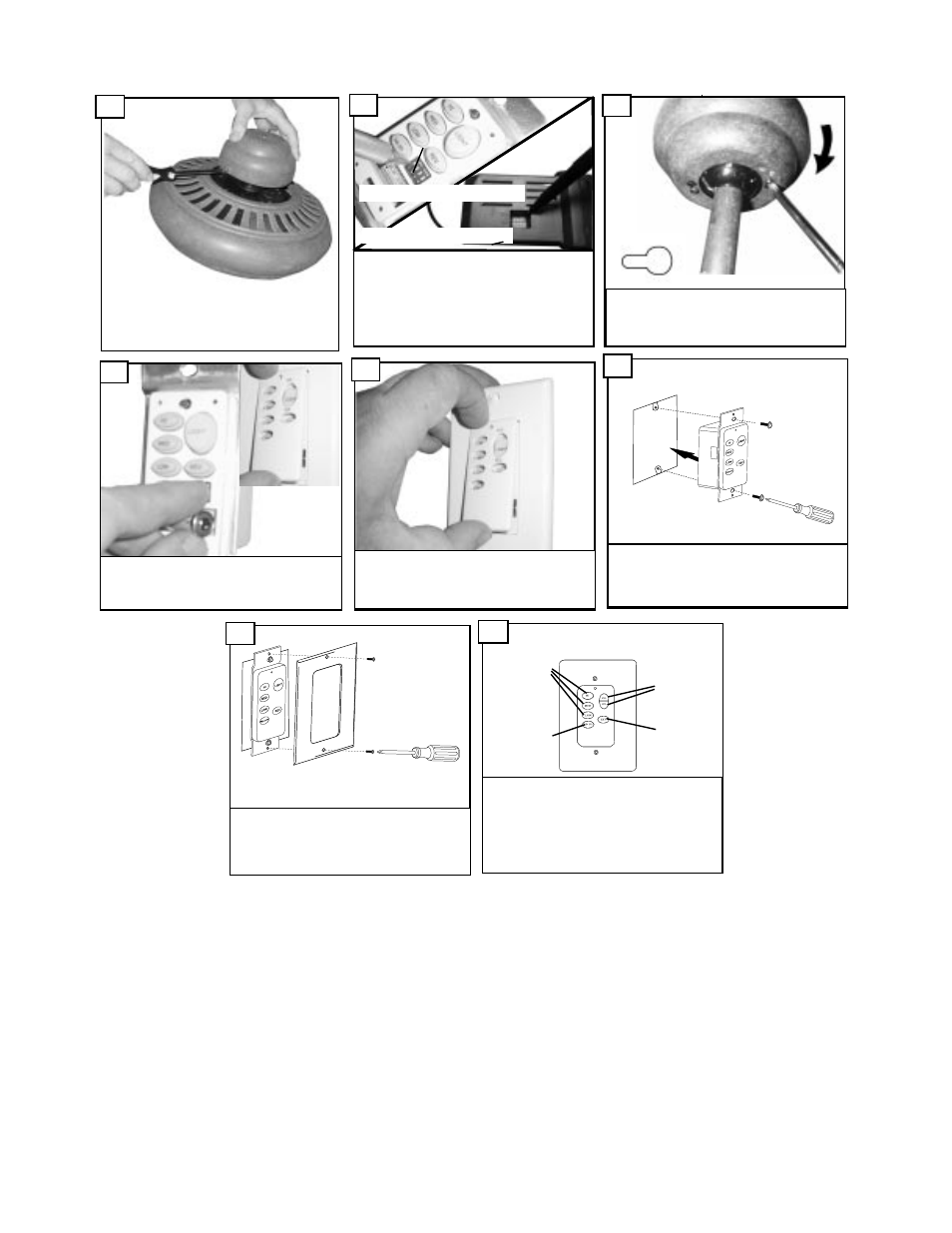

Install wall control unit to outlet box
using machine screws provided.
24
Attach front cover to wall control
with screws provided.
25
To control fan speed select from High, Medium
or low speed buttons. To turn the fan off press
the Fan on / off button. To dim upper lights
press and hold U/L botton. To dim Lower lights
press and hold D/L button. To turn off either
up or down light press and quickly release
either U/L or D/L button. Press button marked
REV to reverse the rotation direction of the fan
blades
Fan speed
control but-
tons
Fan on / off
Light dim-
mer for up
and down
lights
Fan
reverse
button
26
Lift Canopy to ceiling aligning the key hole slots
with the screws on the bottom of the Mounting
bracket. Rotate the canopy Counter Clockwise
to lock in place. Tighten the screws to secure
the Canopy. See inset for Keyhole shape
21 19
Remove cover by snaping off from
top or bottom. Install 12V battery
into wall remote. Duracell MN21 /
Eveready A23 / GP 23A all 12V.
22
Attach cover of remote by placing
over buttons and snaping into place.
23
Set dip switches on the Remote Transmitter and Remote
Receiver to the same settings. This must be done so the
units will communcate properly. If you have other fans you
can set to control from one transmitter by setting both
receivers the same as the transmitter. If you have more
than one fan with remote. You can set the dip switches to
different positiosns to have seperate control.
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
