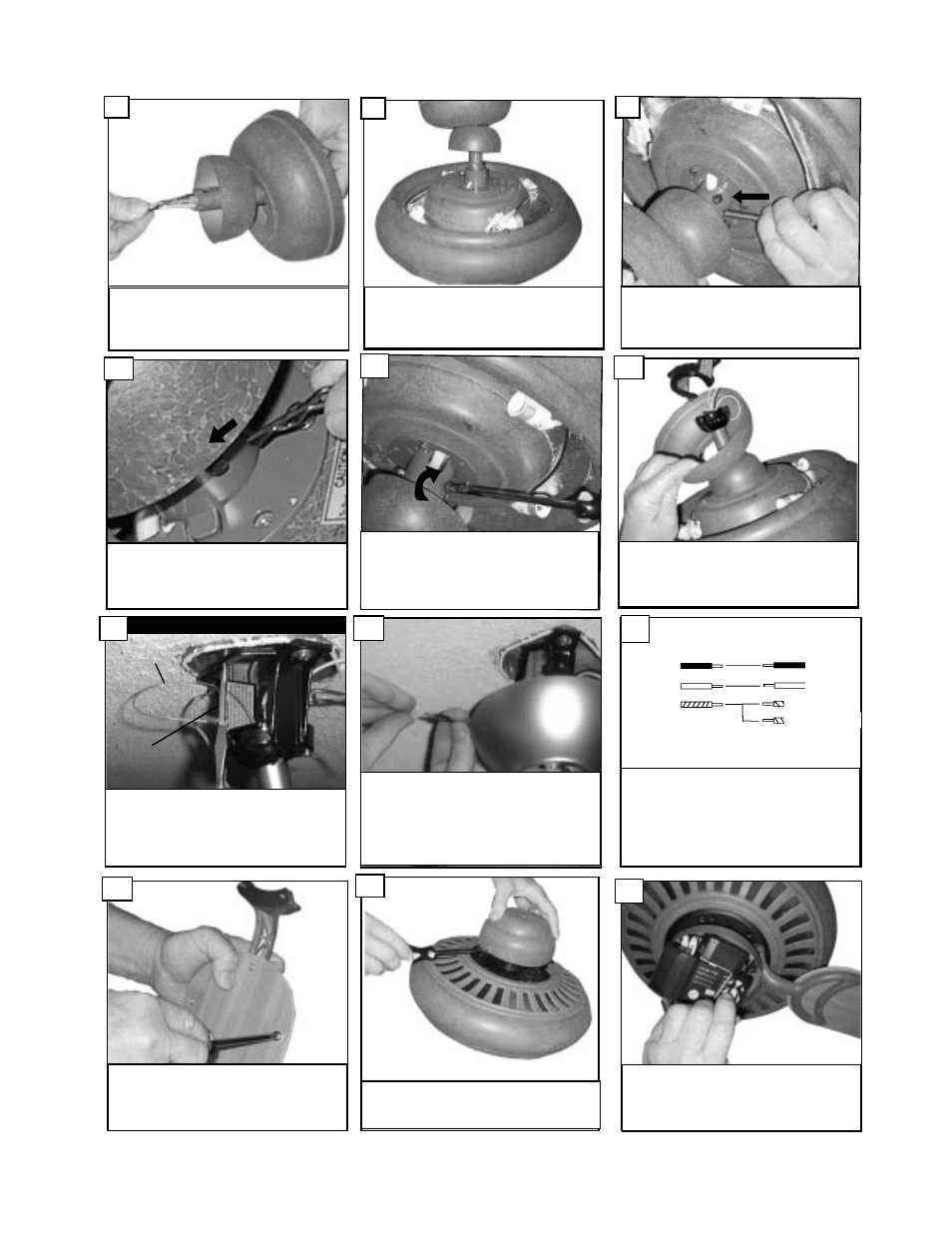

Tighten 2 downrod set screws.
install cotter pin into cross pin.
Install downrod into yoke. Thread black, white wire, and safety cable
through downrod.
Align hole in downrod with hole in yoke and
install cross pin.
Raise fan with downrod assembled to the ceil-
ing bracket and hang fan assembly. Be sure to
rotate the downrod ball so that the notch in the
bracket engages the slot in the ball.
9 7
10
11 12
8
For Canadian installation in both flush and
downrod mode the safety cable must be
installed into the house structure beams using
the 3” lag screws provided. Make sure that
when the safety cable is fully extended the
leadwires are longer than the cable and no
stress is placed on the leadwires.
13 Canadian mounting only
Safety Cable
Lag Screw
Make wire connections to power source using
wire nuts provided. Make sure that no filiments
are outside of the wirenut. After making the
wire connections, the wires should be spread
apart with the grounded conductor and the
equipment-grounding conductor on one side of
the outlet box and ungrounded conductor on
the other side of the outlet box.
14
Attach blade brackets to blades using the blade
bracket screws and washers provided.
16
Check the motor for plastic shipping stabilizer
tabs, and remove them if they are present. The
screws, washers and motor pads are pre-
installed to the blade holders. Attach blade
assembly to motor and tighten screws securely.
18
Make wire connections as per above diagram.
Connect the white wire from the fan to the
White or Neutral wire from the power source.
Connect the black wire from the fan to the
Black or hot wire from the power source.
Connect all Green / Yellow wires from the fan,
Downrod and mounting bracket to the Ground
wire from the house.
15
House Fan
Black
White
Green
Black
White
Green(downrod)
Green(Bracket)
17
Before attaching blades; remove the switch housing.
