Mercedes-Benz 2002 C 230 Kompressor User Manual
Page 375
372
Technical data
Technical
data
Instruments
and controls
Operation
Driving
Instrument
cluster display
Practical hints
Car care
Index
C 230 Kompressor

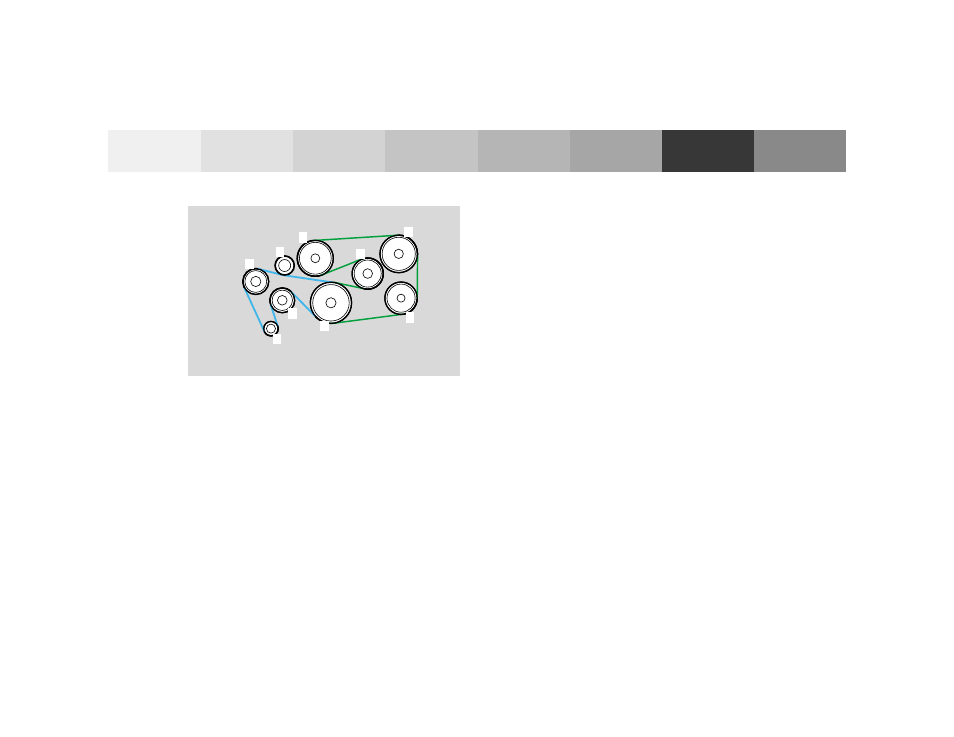

routing combined, belts I and II
1
Crankshaft
2
Air conditioner compressor
3
Power steering pump
4
Coolant pump
5
Idler pulley
6
Generator (alternator)
7
Idler pulley
8
Idler pulley
9
Supercharger
For dimensions of the poly-V-belt, see page 373.
9
6
8
7
4
1
5
3
2
P13.20-2009-26
