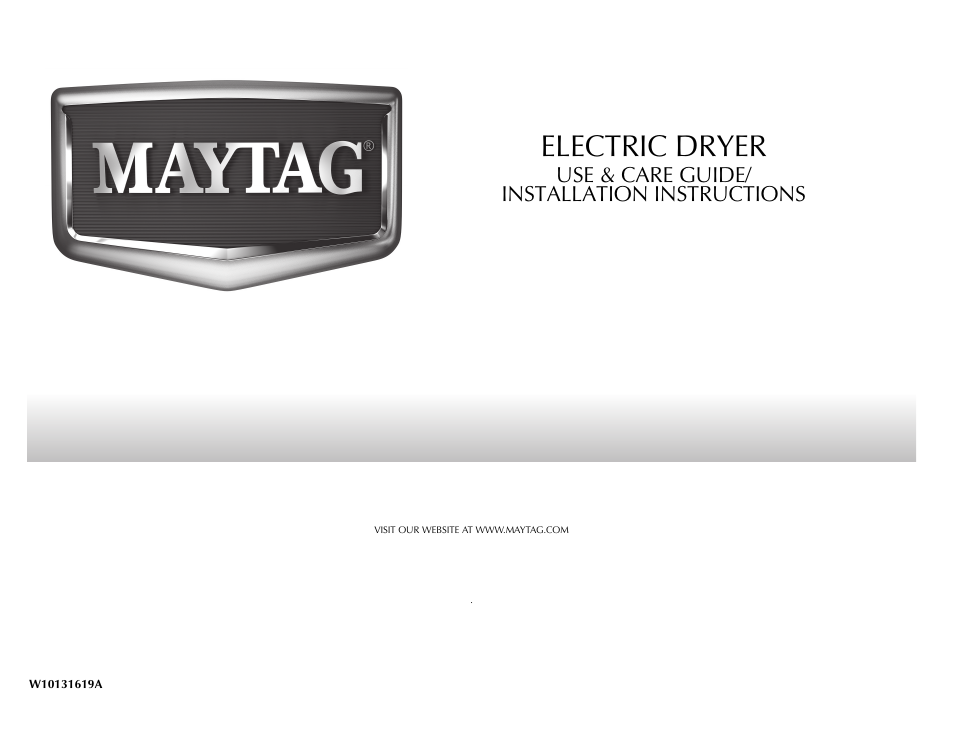

Maytag W10131619A User Manual
Electric dryer, Use & care guide/ installation instructions
Table of contents
Document Outline
- Table of Contents
- dryer Safety
- INSTALLATION INSTRUCTIONS
- Tools and Parts
- Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.
- Flat-blade screwdriver
- #2 Phillips screwdriver
- Adjustable wrench that opens to 1" (25.4 mm) or hex-head socket wrench (for adjusting dryer feet)
- Wire stripper
- Tin snips (new vent installations)
- Level
- Vent clamps
- Caulking gun and compound (for installing new exhaust vent)
- Tape measure
- Parts supplied
- Remove parts packages from dryer drum. Check that all parts are included.
- Check local codes. Check existing electrical supply and venting. See “Electrical Requirements” and “Venting Requirements” before purchasing parts.
- Mobile home installations require metal exhaust system hardware available for purchase from the dealer from whom you purchased your dryer. For further information, please refer to the “Assistance or Service” section.
- Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain:
- A UL listed 30-amp power supply cord, rated 240 volt minimum. The cord should be type SRD or SRDT and be at least 4 ft (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends.
- A UL listed strain relief.
- A location that allows for proper exhaust installation. See “Venting Requirements.”
- A separate 30-amp circuit.
- If you are using a power supply cord, a grounded electrical outlet located within 2 ft (61 cm) of either side of the dryer. See “Electrical Requirements.”
- A sturdy floor to support the total weight (dryer and load) of 200 lbs (90.7 kg). The combined weight of a companion appliance should also be considered.
- A level floor with a maximum slope of 1" (25 mm) under entire dryer. (If slope is greater than 1" [25 mm], install Extended Dryer Feet Kit, Part Number 279810.) Clothes may not tumble properly and models with automatic sensor cycles may not operate c...
- Do not operate your dryer at temperatures below 45ºF (7ºC). At lower temperatures, the dryer might not shut off at the end of an automatic cycle. Drying times can be extended.
- The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
- Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or sleeping quarters. Contact your local building inspector.
- The location must be large enough to allow the dryer door to open fully.
- Dryer Dimensions
- Installation spacing for recessed area or closet installation
- The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of 0" (0 mm) clearance on the sides and rear. Recommended spacing should be considered for the following reasons:
- Additional spacing should be considered for ease of installation and servicing.
- Additional clearances might be required for wall, door, and floor moldings.
- Additional spacing should be considered on all sides of the dryer to reduce noise transfer.
- For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable.
- Companion appliance spacing should also be considered.
- Mobile home installations require:
- Metal exhaust system hardware, which is available for purchase from your dealer.
- Special provisions must be made in mobile homes to introduce outside air into the dryer. The opening (such as a nearby window) should be at least twice as large as the dryer exhaust opening.
- To contact a qualified electrical installer.
- To be sure that the electrical connection is adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition and all local codes and ordinances.
- To supply the required 3 or 4 wire, single phase, 240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 208 volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-...
- Do not use an extension cord.
- If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.
- This dryer is manufactured ready to install with a 3-wire electrical supply connection. The neutral ground conductor is permanently connected to the neutral conductor (white wire) within the dryer. If the dryer is installed with a 4-wire electrical s...
- If local codes do not permit the connection of a neutral ground wire to the neutral wire, see “Optional 3-wire connection” section in “Electrical Connection” section.
- A 4-wire power supply connection must be used when the appliance is installed in a location where grounding through the neutral conductor is prohibited. Grounding through the neutral is prohibited for (1) new branch-circuit installations, (2) mobile ...
- If using a power supply cord:
- Use a UL listed power supply cord kit marked for use with clothes dryers. The kit should contain:
- A UL listed 30-amp power supply cord, rated 240 volt minimum. The cord should be type SRD or SRDT and be at least 4 ft (1.22 m) long. The wires that connect to the dryer must end in ring terminals or spade terminals with upturned ends.
- A UL listed strain relief.
- If your outlet looks like this:
- If your outlet looks like this:
- If connecting by direct wire:
- Power supply cable must match power supply (4-wire or 3-wire) and be:
- Flexible armored cable or nonmetallic sheathed copper cable (with ground wire), protected with flexible metallic conduit. All current-carrying wires must be insulated.
- 10-gauge solid copper wire (do not use aluminum).
- At least 5 ft (1.52 m) long.
- Style 1: Power supply cord strain relief
- Style 2: Direct wire strain relief
- Electrical Connection Options
- If your home has:
- And you will be connecting to:
- Go to Section
- 4-wire receptacle (NEMA Type 14-30R)
- A UL listed, 240-volt minimum, 30-amp, dryer power supply cord*
- 4-wire connection:
- Power supply cord
- 4-wire direct
- A fused disconnect or circuit breaker box*
- 4-wire connection:
- Direct Wire
- 3-wire receptacle (NEMA type 10-30R)
- A UL listed, 240-volt minimum, 30-amp, dryer power supply cord*
- 3-wire connection:
- Power supply cord
- 3-wire direct
- A fused disconnect or circuit breaker box*
- 3-wire connection:
- Direct Wire
- IMPORTANT: A 4-wire connection is required for mobile homes and where local codes do not permit the use of 3-wire connections.
- 1. Remove center silver-colored terminal block screw.
- 2. Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and the neutral wire (white or center wire) of power supply cord under center, silver-colored terminal block screw. Tighten screw.
- 3. Connect ground wire (green or bare) of power supply cord to external ground conductor screw. Tighten screw.
- 4. Connect the other wires to outer terminal block screws. Tighten screws.
- 5. Tighten strain relief screws.
- 6. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold- down screw.
- 7. You have completed your electrical connections. Now go to “Venting Requirements.”
- IMPORTANT: A 4-wire connection is required for mobile homes and where local codes do not permit the use of 3-wire connections.
- Direct wire cable must have 5 ft (1.52 m) of extra length so dryer can be moved if needed.
- Strip 5" (127 mm) of outer covering from end of cable, leaving bare ground wire at 5" (127 mm). Cut 11/2" (38 mm) from 3 remaining wires. Strip insulation back 1" (25 mm). Shape ends of wires into a hook shape.
- When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right), squeeze hooked end together and tighten screw, as shown.
- 1. Remove center silver-colored terminal block screw.
- 2. Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and place the hooked end (hook facing right) of the neutral wire (white or center wire) of direct wire cable under the center screw of the terminal block....
- 3. Connect ground wire (green or bare) of power supply cable to external ground conductor screw. Tighten screw.
- 4. Place the hooked ends of the other power supply cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
- 5. Tighten strain relief screws.
- 6. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold- down screw.
- 7. You have completed your electrical connections. Now go to “Venting Requirements.”
- Use where local codes permit connecting cabinet-ground conductor to neutral wire:
- 1. Loosen or remove center silver-colored terminal block screw.
- 2. Connect neutral wire (white or center wire) of power supply cord to the center, silver- colored terminal screw of the terminal block. Tighten screw.
- 3. Connect the other wires to outer terminal block screws. Tighten screws.
- 4. Tighten strain relief screws.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold- down screw.
- 6. You have completed your electrical connections. Now go to “Venting Requirements.”
- Use where local codes permit connecting cabinet-ground conductor to neutral wire.
- Direct wire cable must have 5 ft (1.52 m) of extra length so dryer can be moved if needed.
- Strip 31/2" (89 mm) of outer covering from end of cable. Strip insulation back 1" (25 mm). If using 3-wire cable with ground wire, cut bare wire even with outer covering. Bend ends of wires into a hook shape.
- When connecting to the terminal block, place the hooked end of the wire under the screw of the terminal block (hook facing right), squeeze hooked end together and tighten screw, as shown.
- 1. Loosen or remove center silver-colored terminal block screw.
- 2. Place the hooked end of the neutral wire (white or center wire) of power supply cable under the center screw of terminal block (hook facing right). Squeeze hooked end together. Tighten screw.
- 3. Place the hooked ends of the other power supply cable wires under the outer terminal block screws (hooks facing right). Squeeze hooked ends together. Tighten screws.
- 4. Tighten strain relief screw.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold- down screw.
- 6. You have completed your electrical connections. Now go to “Venting Requirements.”
- Use for direct wire or power supply cord where local codes do not permit connecting cabinet-ground conductor to neutral wire.
- 1. Remove center silver-colored terminal block screw.
- 2. Remove neutral ground wire from external ground conductor screw. Connect neutral ground wire and the neutral wire (white or center wire) of power supply cord/cable under center, silver-colored terminal block screw. Tighten screw.
- 3. Connect the other wires to outer terminal block screws. Tighten screws.
- 4. Tighten strain relief screws.
- 5. Insert tab of terminal block cover into slot of dryer rear panel. Secure cover with hold- down screw.
- 6. Connect a separate copper ground wire from the external ground conductor screw to an adequate ground.
- Venting Requirements
- WARNING: To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.
- IMPORTANT: Observe all governing codes and ordinances.
- The dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building.
- Clean lint from the entire length of the system and make sure exhaust hood is not plugged with lint.
- Replace any plastic or metal foil vent with rigid or flexible heavy metal vent.
- Review Vent system chart. Modify existing vent system if necessary to achieve the best drying performance.
- Use a heavy metal vent. Do not use plastic or metal foil vent.
- 4" (102 mm) heavy metal exhaust vent and clamps must be used.
- Rigid metal vent
- Flexible metal vent
- Flexible metal vents are acceptable only if accessible for cleaning.
- Flexible metal vent must be fully extended and supported when the dryer is in its final location.
- Remove excess flexible metal vent to avoid sagging and kinking that may result in reduced airflow and poor performance.
- Do not install flexible metal vent in enclosed walls, ceilings, or floors.
- The total length of flexible metal vent should not exceed 73/4 ft (2.4 m).
- Elbows
- Clamps
- Exhaust
- An exhaust hood should cap the vent to keep rodents and insects from entering the home.
- Exhaust hood must be at least 12" (305 mm) from the ground or any object that may be in the path of the exhaust (such as flowers, rocks or bushes, snow line, etc.).
- Do not use an exhaust hood with a magnetic latch.
- Plan Vent System
- Typical installations vent the dryer from the rear of the dryer. Other installations are possible.
- Venting systems come in many varieties. Select the type best for your installation. Two close- clearance installations are shown. Refer to the manufacturer’s instructions.
- NOTE: The following kits for close clearance alternate installations are available for purchase. To order, please see the “Assistance or Service” section.
- Over-the-Top Installation:
- Periscope Installation (For use with dryer vent to wall vent mismatch):
- Select the route that will provide the straightest and most direct path outdoors.
- Plan the installation to use the fewest number of elbows and turns.
- When using elbows or making turns, allow as much room as possible.
- Bend vent gradually to avoid kinking.
- Use the fewest 90° turns possible.
- Use the Vent system chart below to determine type of vent material and hood combinations acceptable to use.
- Number of 90º turns or elbows
- Type of vent
- Box or louvered hoods
- Angled hoods
- 0
- Rigid metal Flexible metal
- 1
- Rigid metal Flexible metal
- 2
- Rigid metal Flexible metal
- 3
- Rigid metal Flexible metal
- 4
- Rigid metal Flexible metal
- 27 ft (8.2 m) 23 ft (7 m)
- 21 ft (6.4 m) 15 ft (4.6 m)
- Install Vent System
- 1. Install exhaust hood. Use caulking compound to seal exterior wall opening around exhaust hood.
- 2. Connect vent to exhaust hood. Vent must fit inside exhaust hood. Secure vent to exhaust hood with 4" (102 mm) clamp.
- 3. Run vent to dryer location. Use the straightest path possible. See “Determine vent path” in “Plan Vent System.” Avoid 90º turns. Use clamps to seal all joints. Do not use duct tape, screws, or other fastening devices that extend into the ...
- Install Leveling Legs
- 1. To protect the floor, use a large, flat piece of cardboard from the dryer carton. Place cardboard under the entire back side of the dryer.
- 2. Firmly grasp the body of the dryer (not the top or console panel). Gently lay the dryer on the cardboard. See illustration.
- 3. Examine the leveling legs. Find the diamond marking.
- 4. Screw the legs into the leg holes by hand. Use a wrench to finish turning the legs until the diamond marking is no longer visible.
- 5. Place a carton corner post from dryer packaging under each of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its final location. Leave enough room to connect the exhaust vent.
- Connect Vent
- 1. Using a 4" (102 mm) clamp, connect vent to exhaust outlet in dryer. If connecting to existing vent, make sure the vent is clean. The dryer vent must fit over the dryer exhaust outlet and inside the exhaust hood. Check that the vent is secured to e...
- 2. Move dryer into its final location. Do not crush or kink vent.
- 3. (On gas models) Check that there are no kinks in the flexible gas line.
- 4. Once the exhaust vent connection is made, remove the corner posts and cardboard.
- Level Dryer
- Install Vent System
- Check the levelness of the dryer. Check levelness first side to side, then front to back.
- If the dryer is not level, prop up the dryer using a wood block. Use a wrench to adjust the legs up or down and check again for levelness.
- You can change your door swing from a right-side opening to a left-side opening, if desired.
- 1. Place towel (A) on top of dryer to protect surface.
- 2. Open dryer door. Remove bottom screws from cabinet side of hinges (D). Loosen (do not remove) top screws from cabinet side of hinges.
- 3. Lift door until top screws in cabinet are in large part of hinge slot. Pull door forward off screws. Set door (handle side up) on top of dryer. Remove top screws from cabinet.
- 4. Remove screws attaching hinges to door.
- 5. Remove screws at top, bottom, and side of door (4 screws). Holding door over towel on dryer, grasp sides of outer door and gently lift to separate it from inner door. Do not pry apart with putty knife. Do not pull on door seal or plastic door catches
- 6. Be certain to keep cardboard spacer centered between doors. Reattach outer door panel to inner door panel so handle is on the side where hinges were just removed.
- 7. Attach door hinges to dryer door so that the larger hole is at the bottom of the hinge.
- 8. Remove door strike (E) from cabinet. Use a small, flat-blade screwdriver to gently remove 4 hinge hole plugs (F) on left side of cabinet. Insert plugs into hinge holes on right side of cabinet.
- 9. Insert screws into bottom holes on left side of cabinet. Tighten screws halfway. Position door so large end of door hinge slot is over screws. Slide door up so screws are in bottom of slots. Tighten screws. Insert and tighten top screws in hinges.
- 10. Remove door strike plug (B). Insert the door strike you removed in Step 8 into hole and secure with screw. Insert door strike plug into original door strike hole and secure with screw.
- 11. Close door and check that door strike aligns with door catch (C). If it is needed, slide door catch left or right within slot to adjust alignment.
- Complete Installation
- 1. Check that all parts are now installed. If there is an extra part, go back through the steps to see which step was skipped.
- 2. Check that you have all of your tools.
- 3. Dispose of/recycle all packaging materials.
- 4. Check the dryer’s final location. Be sure the vent is not crushed or kinked.
- 5. Check that the dryer is level. See “Level Dryer.”
- 6. For power supply cord installation, plug into an outlet. For direct wire installation, turn on power.
- 7. Remove any protective film on the console and any tape remaining on the dryer.
- 8. Read “Dryer Use.”
- 9. Wipe the dryer drum interior thoroughly with a damp cloth to remove any dust.
- 10. Set the dryer on a full heat cycle (not an air cycle) for 20 minutes and start the dryer.
- 11. When the dryer has been running for 5 minutes, open the dryer door and feel for heat. If you feel heat, cancel cycle and close the door.
- NOTE: You may notice an odor when the dryer is first heated. This odor is common when the heating element is first used. The odor will go away.
- DRYER USE
- Starting Your Dryer
- WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.
- This book covers several different models. Your dryer may not have all of the cycles and features described.
- Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping.
- 1. Clean lint screen before each load. See “Cleaning the Lint Screen.”
- 2. Load clothes loosely into the dryer and close the door. Do not pack the dryer. Allow space for clothes to tumble freely.
- 3. Turn the Cycle Control knob to the recommended cycle for the type of load being dried. Use the Energy Preferred setting to dry most heavy to medium-weight fabrics.
- 4. If your dryer has a Temperature selector, set it to the recommended setting for the type of fabric being dried. See “Dryer Cycle Descriptions” (separate sheet) for temperature suggestions. On some models, temperature is included in the cycle s...
- 5. (OPTIONAL) Your dryer may have a WRINKLE PREVENT feature selector. When you are unable to remove a load from the dryer as soon as it stops, wrinkles can form. This feature periodically tumbles, rearranges and fluffs the load without heat to help s...
- 6. (OPTIONAL) Your dryer may have an END OF CYCLE SIGNAL. The signal is helpful when drying items that should be removed from the dryer as soon as it stops.
- 7. Select the desired Option. See “Dryer Cycle Descriptions” (separate sheet).
- 8. If desired, add fabric softener sheet. Follow instructions on the package.
- 9. Push the START button.
- When you are using the Auto Moisture Sensing Cycle, the dryness of the load is determined by two metal strips (sensors) located on the inside of the dryer. The metal strips help “feel” the amount of moisture left in the clothes as they tumble. Wh...
- You can stop your dryer anytime during a cycle.
- Open the dryer door or turn the Cycle Control knob to OFF.
- NOTE: The Cycle Control knob should point to an Off area when the dryer is not in use.
- Use the Drying Rack to dry items such as sweaters and pillows without tumbling. The drum turns, but the drying rack does not move.
- If your model does not have a drying rack, you may be able to purchase one for your model. To find out whether your model allows drying rack usage and for information on ordering, please refer to the front page of the manual or contact the dealer fro...
- NOTE: The drying rack must be removed for normal tumbling. Do not use the automatic cycle with the drying rack.
- To use the drying rack
- 1. Place drying rack in dryer.
- 2. Put wet items on top of drying rack, leaving space between items. Do not allow items to hang over the edge of the drying rack. Close the door.
- 3. Select a timed drying cycle and temperature, or an air cycle. Items containing foam, rubber, or plastic must be dried on a clothesline or by using an air cycle. Refer to the following table.
- 4. Start the dryer. Reset cycle to complete drying, if needed.
- Rack Dry
- Cycle
- Temp
- Time
- dryer care
- Cleaning the Dryer Location
- Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.
- Clean lint screen before each load. A screen blocked by lint can increase drying time.
- IMPORTANT:
- Do not run the dryer with the lint screen loose, damaged, blocked, or missing. Doing so can cause overheating and damage to both the dryer and fabrics.
- If lint falls off the screen into the dryer during removal, check the exhaust hood and remove the lint.
- 1. The lint screen is located on top of the dryer. Pull the lint screen toward you. Roll lint off the screen with your fingers. Do not rinse or wash screen to remove lint. Wet lint is hard to remove.
- 2. Push the lint screen firmly back into place.
- 2. Wet both sides of lint screen with hot water.
- 3. Wet a nylon brush with hot water and liquid detergent. Scrub lint screen with the brush to remove residue buildup.
- 4. Rinse screen with hot water.
- 5. Thoroughly dry lint screen with a clean towel. Replace screen in dryer.
- Cleaning the Dryer Interior
- NOTE: Garments that contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. These stains are not harmful to your dryer and will not stain future loads of clothes. Dry unstable dye items insid...
- Lint should be removed every 2 years, or more often, depending on dryer usage. Cleaning should be done by a qualified person.
- Lint should be removed every 2 years, or more often, depending on dryer usage.
- Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should:
- troubleshooting
- First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) to possibly avoid the cost of a service call... In U.S.A. www.maytag.com/help
- Dryer Operation
- Has a household fuse blown, or has a circuit breaker tripped? Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace the fuse or reset the circuit breaker. If the problem continues, call...
- Is the correct power supply available? Check with a qualified electrician.
- Was a regular fuse used? Use a time-delay fuse.
- Is a cycle selected? The dryer will not start in the Wrinkle Prevent position. Move the dial past OFF.
- Has a household fuse blown, or has a circuit breaker tripped? Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat. Replace the fuse or reset the circuit breaker. If the problem continues, call...
- Has the dryer had a period of non-use? If the dryer hasn’t been used for a while, there may be a thumping sound during the first few minutes of operation.
- Is a coin, button, or paper clip caught between the drum and front or rear of the dryer? Check the front and rear edges of the drum for small objects. Clean out pockets before laundering.
- Are the four legs installed, and is the dryer level front to back and side to side? The dryer may vibrate if not properly installed. See the Installation Instructions.
- Is the clothing knotted or balled up? When balled up, the load will bounce, causing the dryer to vibrate. Separate the load items and restart the dryer.
- Is the dryer set to Timed or Air Dry? The timer moves slowly and continuously for the time setting.
- Is the dryer set to Automatic Drying? The timer moves only when the clothing is mostly dry. See “How Automatic Drying Works” in “Dryer Use.”
- Is the lint screen clogged with lint? Lint screen should be cleaned before each load.
- Is the exhaust vent or outside exhaust hood clogged with lint, restricting air movement? Run the dryer for 5-10 minutes. Hold your hand under the outside exhaust hood to check air movement. If you do not feel air movement, clean exhaust system of lin...
- Are fabric softener sheets blocking the grille? Use only one fabric softener sheet, and use it only once.
- Is the exhaust vent the correct length? Check that the exhaust vent is not too long or has too many turns. Long venting will increase drying times. See the Installation Instructions.
- Is the exhaust vent diameter the correct size? Use 4" (102 mm) diameter vent material.
- Is the dryer located in a room with temperature below 45ºF (7ºC)? Proper operation of dryer cycles requires temperatures above 45ºF (7ºC).
- Is the dryer located in a closet? Closet doors must have ventilation openings at the top and bottom of the door. Sides and front of dryer require a minimum of 1" (25 mm) of airspace, and the rear of the dryer requires 5" (127 mm). See the Installatio...
- Has an air dry cycle been selected? Select the right cycle for the types of garments being dried.
- Is the load too large and heavy to dry quickly? Separate the load to tumble freely.
- Is the automatic cycle ending early? The load may not be contacting the sensor strips. Level the dryer.
- Is the lint screen clogged? Lint screen should be cleaned before each load.
- Was dryer fabric softener properly used? Add dryer fabric softener sheets at the beginning of the cycle. Fabric softener sheets added to a partially dried load can stain your garments.
- Was the load removed from dryer at the end of the cycle?
- Was the dryer overloaded? Dry smaller loads that can tumble freely.
- Have you recently been painting, staining or varnishing in the area where your dryer is located? If so, ventilate the area. When the odors or fumes are gone from the area, rewash and dry the clothing.
- Is the dryer being used for the first time? The new electric heating element may have an odor. The odor will be gone after the first cycle.
- Assistance or Service
- If you need assistance or service, first see the “Troubleshooting” section. Additional help is available by contacting the place of purchase.
- Information may also be obtained by visiting our website at www.maytag.com.
- Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.
- Write down the following information about your appliance to help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number l...
- Enhance your dryer with these premium accessories.
- Visit us at www.maytag.com/accessories.
- Part Number
- Accessory
- 20-48KITRC
- 4" (102 mm) gas line dryer connector installation kit
- PT220L
- 4" (102 mm) dryer cord, 3-wire, 30 amp
- PT400L
- 4" (102 mm) dryer cord, 4-wire, 30 amp
- PT600L
- 6" (152 mm) dryer cord, 4-wire, 30 amp
- 8212614
- Dryer vent lint brush
- 31682
- All-purpose appliance cleaner
- 1903WH
- Laundry supply storage cart
- 3404351
- Drying rack - fits 29" (737 mm) Super Capacity, 6.5 cu. ft (0.18 cu. m) - side swing or hamper door
- 3406839
- Drying rack - fits 29" (737 mm) Super Capacity Plus, 7.0 cu. ft (0.20 cu. m) - side swing door only
- 8212450
- Drying rack - fits 27" (686 mm) Ultra Capacity - side swing door only
- 49971
- Compact dryer stand - white
- 49572
- LP gas conversion kit
