Cutting out the countertop

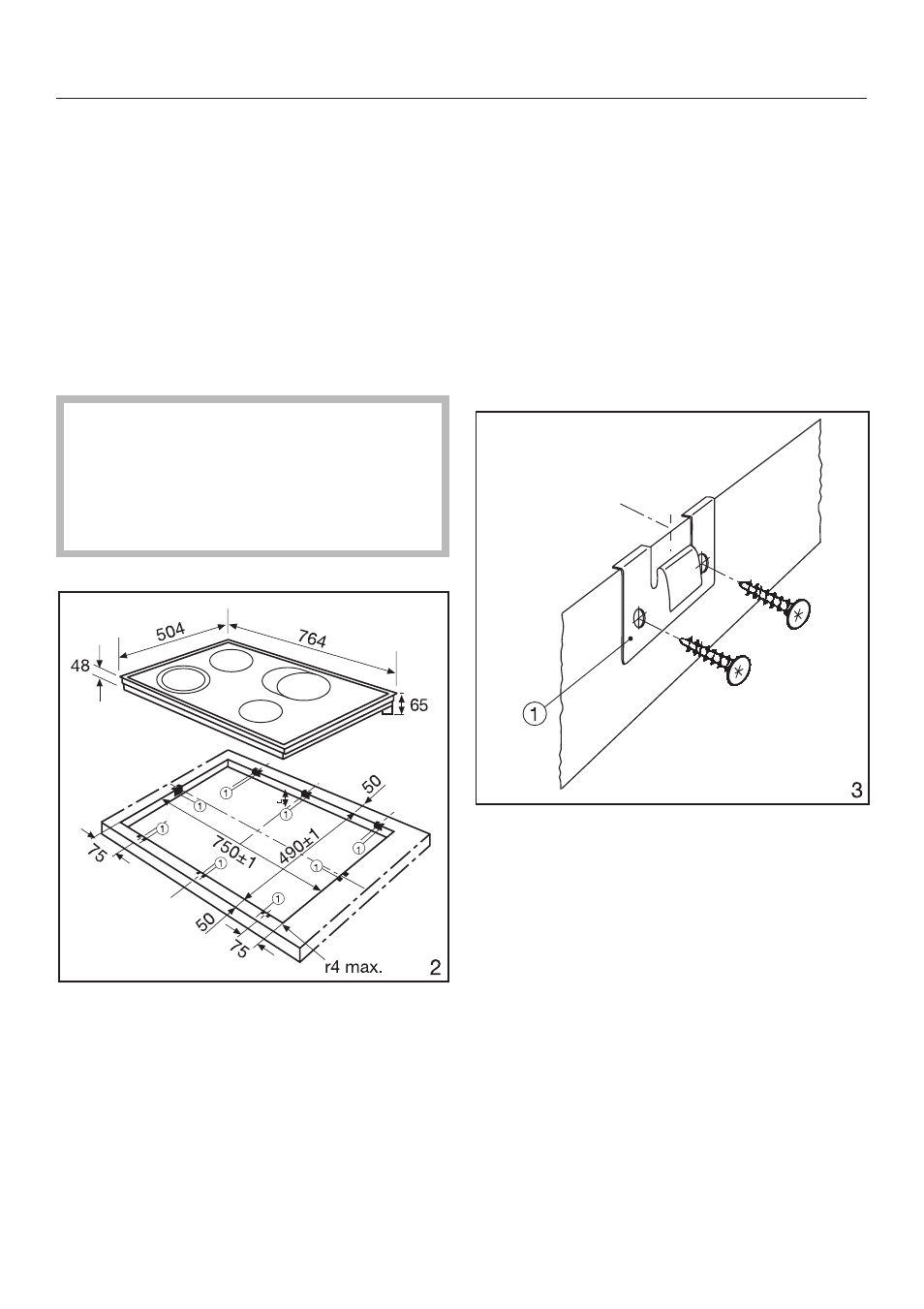

^ Cut an opening in the countertop to
the dimensions of your particular mo-
del as shown in illustration 2.
Please note:
There must be at least 2
5
/
8
" (65 mm) of
usable depth at the right rear corner of
the cut out for the connection cable.
Minimum distances of 1
1
/
2
" (38 mm)
from the cooktop to a side wall and
2" (50 mm) from the cooktop to the
rear wall must be maintained for
safety reasons.
Cut out dimensions
1 mm =
1
/
16
" 490 mm = 19
5
/
16
"
48 mm = 1
7
/
8
" 504 mm = 19
7
/
8
"
50 mm = 2" 750 mm = 29
9
/
16
"
65 mm = 2
5
/
8
" 764 mm = 30
1
/
16
"
75 mm = 2
15
/
16
"
r4 max.= maximum radius of
3
/
16
"
^ Install the provided spring clips on
the side walls of the cut out at the
positions marked
a in illustration 2.
Fasten them using the supplied
screws as shown in illustration 3. On
granite countertops, the clips should
be attached using silicone adhesive
or a strong double-sided tape. Allow
the glue to cure before positioning
the cooktop.
