CDVX Series Direct Vent Gas Fireplace
20012253
MHSC reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without
notice.

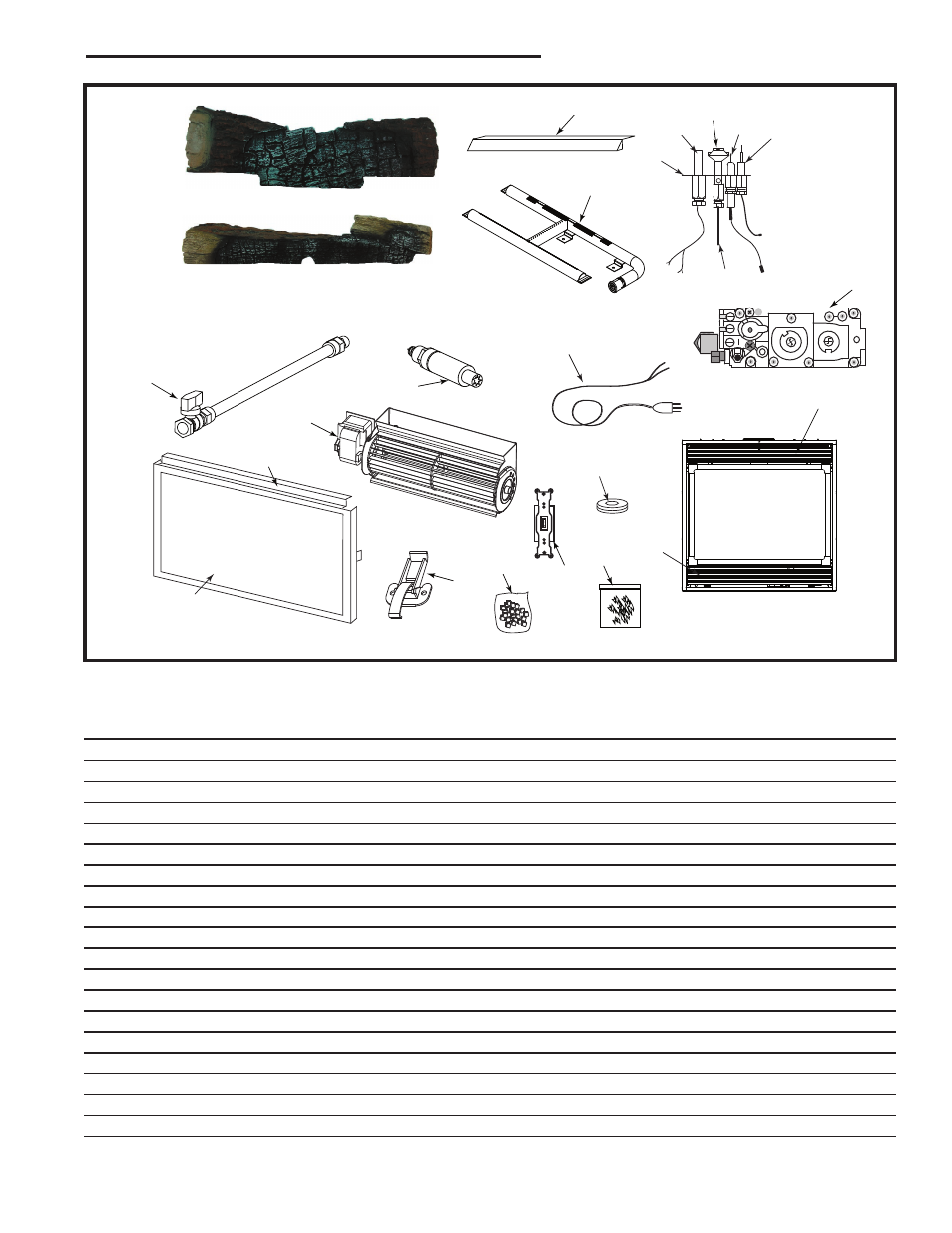

CDVX
Units: GFRL1J1, GFTN1J0
16
14a,b
13
20
2
6a,b
7
10 11 12
15
17
21
22
23
3
8
19
24
1a
1b
18
�����
����������
����
26
27
Ref. Description 36CDVX
1a. Log Rear Assy 20012251
1b. Log Middle Assy 20012108
2. Hood 20010312
3. Burner Tube 20010333
4. Orifice Burner - Natural (not shown) 72386
5a. Orifice Pilot - Natural (not shown) 10002268
5b. Orifice Pilot - Propane (not shown) 10002269
6a. PIlot Assy SIT - RN 20010203
6b. Pilot Assy SIT - RP 20010202
7. Pilot Tubing w/Fittings SIT 10001296
8. Pilot Hood 10002385
9. Manifold Tubing (not shown) 20010162
10. Thermocouple - RN/RP 53373
11. Thermopile - RN/RP 51827
12. Electrode Ignitor w/Cable RN/RP 10001297
13. Ignitor Piezo SIT 820 Valve 52464
14a. Valve SIT 820 - RN 52677
14b. Valve SIT 820 - RP 52678
