TO ADJUST BRAKE

Your riding mower is equipped with an adjustable brake

system which is mounted on the right side of the transaxle.

If riding mower requires more than (4) feet stopping distance

in highest gear on a lever dry concrete or paved surface,

then brake must be adjusted.

1. Park riding mower on a level surface.

2. Release brake/parking pedal.

3. Measure distance between rotor and brake pad if

distance between rotor and brake pad is more than .02"

gap brake needs to be adjusted.

4. Tighten caliper nut until .02" gap is reached.

NOTE: Feeler gauge may be necessary to get correct

measurement.

TO ADJUST STEERING WHEEL

ALIGNMENT

If steering wheel crossbars are not horizontal (left to right)

when wheels are positioned straight forward, move steering

wheel and reassemble per instructions in the "INSTALL

STEERING COLUMN"section of this manual.

TO REMOVE WHEEL FOR REPAIRS

FRONT WHEEL

1. Block up front axle securely.

2. Remove dust cover, retaining ring, and washer to allow

wheel removal.

3. Repair tire and reassemble.

4. Replace washer and retaining ring securely in axle

groove.

REAR WHEEL

1. Block up Rear axle securely.

2. Remove dust cover, retaining ring, washer, and square

key while pulling tire off.

3. Repair tire and reassemble.

4. Replace square key while putting tire back on, then re-

place washer and retaining ring securely in axle groove

,when pushing tire back onto shaft reach under and pull

chain sprocket toward you to ease tire replacement.

NOTE: To seal tire punctures and pre vent flat tires due

to slow leaks, purchase and use tire sealant. Tire sealant

also pre vents tire dry rot and corrosion.

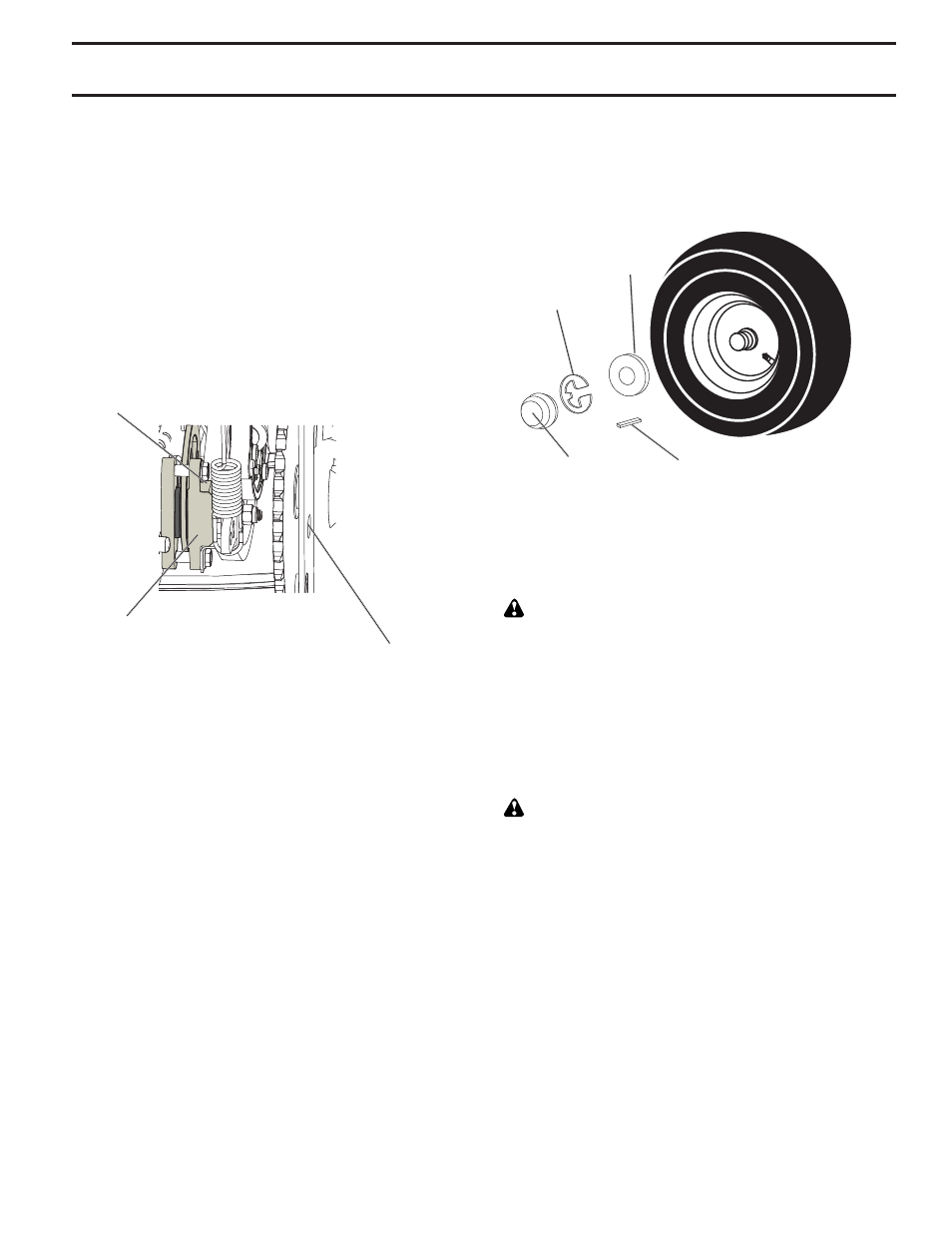

Retaining

Ring

Dust

Cover

Washer

Square Key

(rear wheel only)

Rotor

Nut

Brake

Pad

TO START ENGINE WITH A WEAK

BAT TERY

CAUTION: Lead-acid batteries gen er ate ex plo sive

gases. Keep sparks, flame and smoking ma te ri als away

from bat ter ies. Always wear eye pro tec tion when around

batteries.

If your battery is too weak to start the engine, it should be

recharged. (See "BATTERY" in the Maintenance section

of this man u al).
NOTE: This unit is equipped with an engine recoil starting

system that can be used if the battery is too weak to start.

See “RECOIL STARTING SYSTEM” in operation section

of this manual.
REPLACING BATTERY

WARNING: Do not short bat tery ter mi nals by al low ing

a wrench or any other object to contact both terminals at

the same time. Before con nect ing battery, remove metal

bracelets, wrist watch bands, rings, etc.

Positive terminal must be connected first to prevent spark ing

from ac ci den tal grounding.
